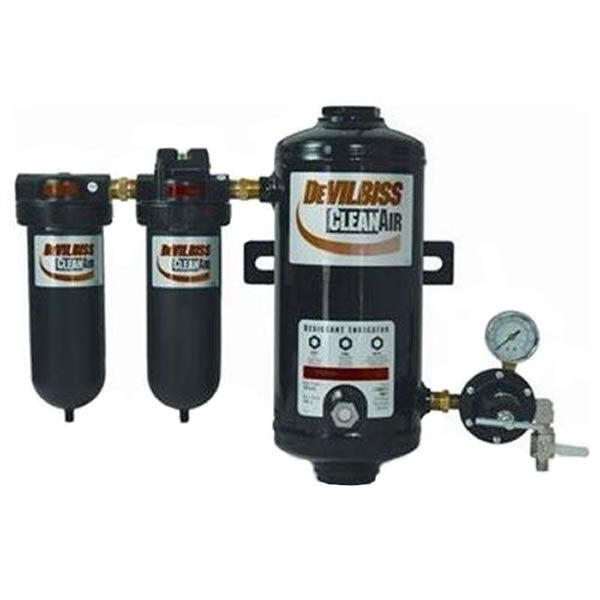

The Devilbiss DAD500 Desiccant Dryer system will eliminate moisture and dirt in the air line. The first stage centrifugal filter removes oil, water, and dirt down to 5 microns. The second stage coalesce filter removes oil aerosols and dirt particles down to .01 microns. The third stage uses low dusting desiccant to trap water vapor. This unit has a 25 CFM air capacity. This unit includes the New and Improved premium desiccant by DeVilbiss that has a 51% longer life than some competitive brands. The unit also includes a built in wall mounting bracket.

Accessories

13600 3/4 inch x 100 foot Air line system, 20612 1 gallon of desiccant, 70449 Air hose and reel, 70489 3 foot whip hose, 12846Z Aerosol Injected Cleaner, 15528 Devilbiss Champion Respirator, 51566 QC3 Air Dryer, 51559 Digital regulator, 20405 Paint Suit, 10041Z PRE Painting Prep, 12569 Master Gun Cleaning Kit, 12573ZP Clean and Prep kit

Safety Information

Always wear eye, skin and respiratory protection when painting. Paint in a well ventilated area away from open flame. Consult instructions and safety warnings in or on package.

Customer Reviews

Rated 5 out of 5 by Matt2211 from Over kill for my needs I am sure that this air filter was way more than I needed. I am a woodworker that has been using a turbine for spraying. I decided to switch to compressed air for in house spraying and figured it would be a good idea to have a filter. I did not know this was going to be such a big unit. It is almost 3 foot from first stage to the end of the desiccant tank. I was concerned that I would need an additional filter to clean the desiccant dust but it has screens in the tank around the fittings to keep the dust out. I have not sprayed anything that was very critical but the screens seem to do the job of filtering the dust. The regulator is a very nice regulator. The only complaint I have, the desiccant caps require a 2 1/8 inch wrench. As a woodworker, the largest box-end wrench I had was a 2 inch.

Date published: 2015-09-01

Questions & Answers

the price for the air drying are in canadian money

Asked by: tony

The prices of our items are all listed in USD.

Answered by: SeanW

Date published: 2020-01-25

Does this unit also remove oil from the air system?

Asked by: 68338

This unit certainly will remove oil from the air system. The cleansing happens in the first to stages as such: The first stage centrifugal filter removes oil, water, and dirt down to 5 microns. The second stage coalesce filter removes oil aerosols and dirt particles down to .01 microns.

Answered by: Scott C

Date published: 2018-03-31

Does this assembly include the regulator that's shown in the picture?   I wasn't clear, as it's not mentioned in the detailed description.

Asked by: bdpeter1956

The regulator is included with this system.

Answered by: S Church

Date published: 2017-08-08

What is the maximum pressure?

Asked by: Omid

Maximum Operating Pressure 150 PSIG (10.3 Bar)

Answered by: KHoffnagle

Date published: 2017-06-05

DeVilbiss Desiccant Air Drying System 130026

$1,299.99

In Stock

DeVilbiss Desiccant Air Drying System 130026
