Item # 56925 BRAND: DeVilbiss

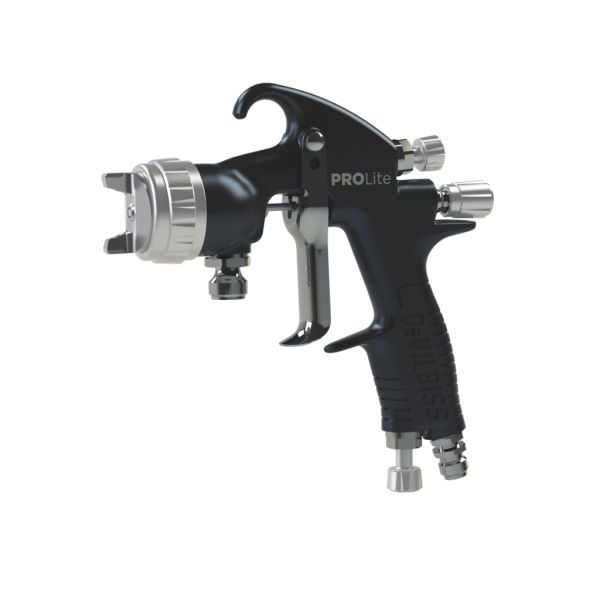

DeVilbiss PROLITE PRESSURE (TE40 - 1.2) 905128

PROLite Pressure/Suction Paint Spray Gun
PROLite Pressure/Suction Paint Spray Gun
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 28.31ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$591.99
Loading...
Loading...
Save for Later
PROLite Pressure/Suction Paint Spray Gun

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
DeVilbiss PROLITE PRESSURE (TE40 - 1.2) 905128

Product Overview:

Description

Perfect for any climate and paint, the DeVilbiss PROLite spray gun delivers exceptional performance and color match capabilities for today’s automotive refinish coatings that can be difficult to atomize, such as low VOC, high solids, pearls or metallic materials.

This PROLite performance is achieved utilizing high-capacity air passages and a linear air valve to provide unrestricted, even flow of compressed air through the gun body, enabling the precisionengineered air caps to produce superior atomization with consistent droplet distribution throughout the entire spray pattern.

PROLite is precision built using the highest quality materials for a longer working life. The forged aluminum body features QuickClean™ coating with non-stick properties that reduce clean up time. The high-grade stainless steel fluid nozzles and needles, plus nickel plated brass air caps all contribute to a gun that will last in the most extreme professional spray environments. When routine maintenance is needed, the easy-to-maintain design ensures minimum production downtime. In approval testing with paint company technicians over the last decade, the PROLite has consistently met the highest color match standards, ensuring that you get the job done right — the first time and every time.

FEATURES & BENEFITS

  • Lightweight and comfortable handle design with reduced trigger travel to decrease operator fatigue
  • Uniform atomization and spray pattern for ease of application
  • Advanced range of air cap technology for exceptional application performance with the latest waterborne and solventborne coatings
  • Environmental legislation-compliant atomization with high transfer efficiency resulting in significant paint savings
  • Forged aluminum gun body with unique QuickCleanâ„¢ coating and a removable air baffle for a longer working life

Specifications

Air Cap: TE40
Needle/Nozzle: 1.2
Material Feed: PRESSURE
Weight (gun only): 500g
Gun Body: Anodized QuickClean Aluminum
Air Cap: Plated Brass
Air Cap Retaining Ring & Knobs: Clear Anodized Aluminum
Fluid Nozzle: Stainless Steel
Fluid Needle: Stainless Steel
Air Inlet Thread: 1/4" Universal


Air Cap Offerings

Air Cap Atomization Type Applications Recommended Inlet Pressure (PSI) Max Air Consumption (SCFM) Fan Pattern Size (In.) Nozzle Sizes
TE30 High Efficiency Multi-Purpose 15-29 12.7 10.5-11.5 0.85-1.8mm
TE40 High Efficiency Multi-Purpose 29-44 12 13.0-16.5 0.85-1.8mm
C797 Conventional Multi-Purpose 29-44 14.5 13.0-16.5 0.85-1.8mm
HV40 HVLP Multi-Purpose 17 10.5 11.0-13.0 0.85-1.8mm

In the Box
