FIELD OF APPLICATION

The Trisk Devilbiss IR3L/IR3LT are designed to provide an accelerated and even cure of most automotive refinishing materials. Typically drying of putty, filler, base and top coats, both water-based and solvent-based products. Its site of use is the preparation area and finishing area. Within the automotive industry and vehicle repair sectors, it is used to dry small areas and cure materials before polishing .

PRODUCT DESCRIPTION

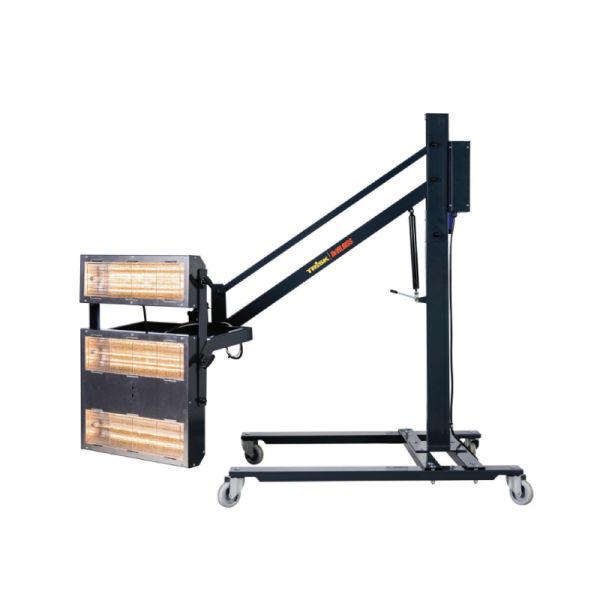

The easily maneuverable Trisk Devilbiss IR3L/IR3LT are equipped with both dual and single lamp cassettes for easy adjustment and flexibility around curved parts without sacrifice
to heat distribution. The design, combined with a gas spring, makes cassette adjustment simple. The IR lamps and reflectors are protected against mechanical damage with a mesh. The control unit enables flash off (50% power) and full bake (100% power). The time can be set individually for each mode (0-30 min). Additionally, the IR3LT unit is equipped with a contactless temperature control where the temperature can be set between 20°C and 99°C.

PARTICULAR ADVANTAGES

Unique reflector design The Trisk Devilbiss IR3L/IR3LT features a unique dimpled sheet reflector that generates extremely even curing intensity and temperature over entire surfaces. This ensures the fastest possible curing time, while minimizing risk of over-curing or burning sections of your coating. Good maneuverability

The Trisk Devilbiss IR3L/IR3LT are sized to cure higher surfaces such as hood and roof. Lockable gas piston makes it very easy to set point of parallel arm.

IR3LT has a laser guided pyrometer displaying surface temperature readout which make it even easier to properly position the lamps.

The Trisk | DeVilbiss Tru-Cure line of products are designed to provide an even cure of most automotive refinishing materials. The portable, low-cost system requires no installation allowing quick start-up. Our stand-up infrared unit features a unique dimpled sheet reflector that generates extremely even curing intensity and temperature over entire surfaces. This ensures the fastest possible curing time, while minimizing risk of over-curing or burning sections of your coating. Additionally, the Trisk | DeVilbiss Tru-Cure IR lamp units feature an adjustment to allow it to be set for curing both horizontal and vertical without putting additional stress on the lamp itself if constantly changed by the operator.

Features

• Long-life IR lamps
• Customizable timing of both full curing and flash off periods (unit runs at 50% power to allow for non-solids to evaporate out prior to final cure)
• Easy to properly position lamps with laser guided pyrometer displaying surface temperature readout
• Stand and unit are sized to cure higher surfaces such as hood and roof
• Upgraded gas piston with long life seals precisely controls set point of upper arm
• IR3S and IR3L contain both dual and single lamp cassettes for easy adjustment and flexibility around curved parts without sacrifice to heat distribution
• IR6LT has six lamps and is our fastest and most powerful unit for high production shops
