Item # 31657 BRAND: Eastwood

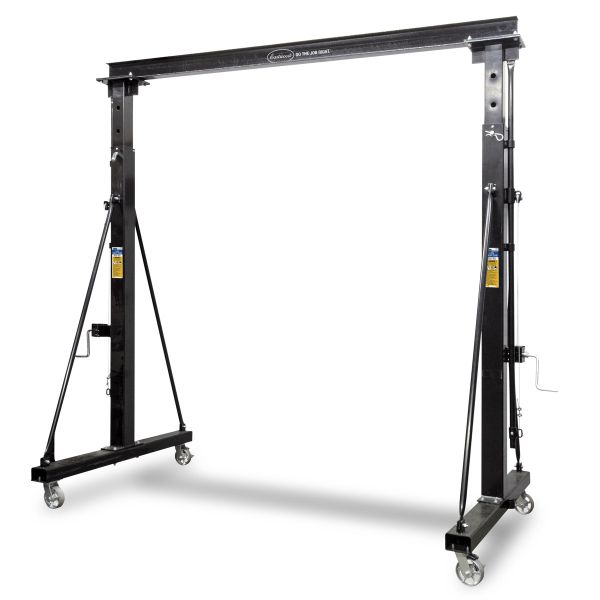

Eastwood 1 Ton Capacity Gantry Crane

Eastwood 1 Ton Gantry Crane
Eastwood 1 Ton Gantry Crane
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 111.58ms
  • bvseo-msg: HTTP status code of 404 was returned;
Reg. $1,049.99 Sale $929.97 Save $120.02
Save for Later
Eastwood 1 Ton Gantry Crane

1 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Eastwood 1 Ton Capacity Gantry Crane

Product Overview:


The Eastwood Gantry Crane can be used to quickly, easily and safely remove a body from its chassis, remove an engine from a vehicle, to lift a car body to be mounted on a rotisserie and much more.

  • All Steel Support Structure
  • Large 5" Swivel Casters
  • Can Support Up To 2000 lbs.
  • Portable For Easy Storage

The Eastwood Gantry Crane features a heavy, all steel support structure and 5” swivel casters that can support up to a total loaded weight of 2000 lbs. [908kg.], yet is completely portable for rolling to the job and between project storage. A generous 93” [2.36m] span will accommodate large vehicles and projects.


1 Year


Max. Weight Capacity: 2000lb [908kg] Overall Height (“I”-Beam at lowest position): 99” [2.5m] Overall Extended Height (“I”-Beam at highest position): 147.5” [3.75m] Minimum Vertical Clearance (“I”-Beam at lowest position): 94” [2.38m] Maximum Vertical Clearance (“I”-Beam at highest position): 142.5” [3.61m] Overall Width: 128” [3.25m] Clearance Between Posts: 93-11/16” [2.36m] “I”-Beam Dimensions: 3” W x 5” H (76.2 x 127mm) Assembled Gantry Crane Weight: 550 lbs. [250kg.]


Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.

In the Box



(1) “I”-Beam
(2) Post Assemblies
(2) Base Assemblies
(2) Swivel Casters
(2) Locking Swivel Casters
(4) Support Braces
(2) Hand cranks
(2) Pin Retaining Clips
(2) Height Pins


(16) M10 x 25mm Bolts
(16) M10 Flat Washers
(16) M10 Lock Washers
(16) M10 Nuts
(8) M12 x 35mm Bolts
(8) M12 x 50mm Bolts
(8) M12 x 110mm Bolts
(24) M12 Flat Washers
(24) M12 Lock Washers
(24) M12 Nuts

Guides & Accessories


Click here for product instructions


• Two 16mm wrenches
• Two 18mm wrenches
• One 10mm wrench
• Grease Gun with a Zerk fitting coupler

Safety Information

Please read and fully understand all instructions before use.

Click here to see safety products



Application Tips



  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 18.08ms
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

Can it be collapsed easily for storing?

Asked by: Tana
Define collapse it doesn't fold up an down spec sheet tells you.
Answered by: Jimmy
Date published: 2022-07-25

I really want to order one of these cranes. However I can't get through to anybody. And also I was trying to find out if I could order a trolley for it.

Asked by: Doug
We are sorry you have not be able to make contact with us. Please Contact our Customer Service Dept at 1-800-343-9353 or 1-610-323-9099 for assistance with your order. You can also order online at by typing in product number 31657 on the search bar then following the prompts to make the purchase, all cost and fees will be shown at the time of purchase. The Toho Plain Trolley 1-ton capacity #31558 is available as a separate item.
Answered by: vince
Date published: 2022-07-25

In the description it gives the eye beam specifications. What is the thickness of both the I-beam and the posts?

Asked by: Doug
The I-Beam is 1/4" or 0.250 thick and the posts are 3/16" or 0.1875 thick.
Answered by: vince
Date published: 2022-07-25

What’s hoist do you recommend  The one in the display picture looks good but where do you get it?

Asked by: Chris
The hoist we recommend using with this that we offer is listed here
Answered by: Kelly H
Date published: 2022-07-25

Do you give veterans disciunt

Asked by: Mike
Please contact customer service @ 1-800-343-9353 for details on Veteran discounts.
Answered by: vince
Date published: 2022-07-25

Where is this made?

Asked by: Tyruss
This product is manufactured in China to Eastwood specifications and testing procedures.
Answered by: John S
Date published: 2022-07-25

Can the width be made wider to straddel a boat with a 13' beam?

Asked by: rich
Since the top is one large I beam there isn't a way to widen this unit.
Answered by: Scott C
Date published: 2022-03-11

How well is this crane painted? Because it will be outside most of its life.

Asked by: Chevy
The Eastwood 31657 Gantry Crane is constructed of many components. Some powdercoated, some are coated with a urethane paint and others are bare plated steel. As with most pieces of shop equipment, they are not finished to withstand weather exposure.
Answered by: John S
Date published: 2022-03-11

Can it be shipped to monteal quebec

Asked by: James
We ship inside of the US and to Canad. Please contact our Sales team at: 800-343-9353 or by emailing to obtain a shipping quote.
Answered by: Kelly H
Date published: 2019-10-18

Can you guys deliver to Canada?

Asked by: Raca77
Yes we can ship within the US and to Canada. Please contact our Sales team at or by calling 800-343-9353 to obtain a quote.
Answered by: Kelly H
Date published: 2019-10-16

Do you sell a 1 ton gantry crane that has 14 feet clearance between the posts?

Asked by: Denis
Unfortunately this is currently the only option we have available at this current time.
Answered by: Kelly H
Date published: 2019-09-23
