Item # 21302 BRAND: Eastwood

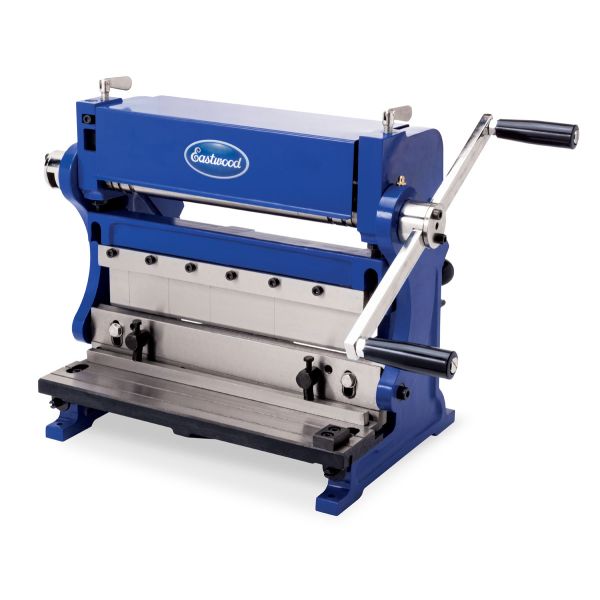

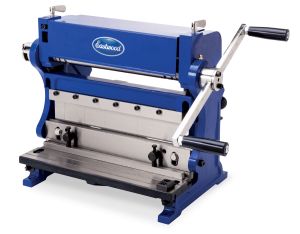

Eastwood Compact 12 Inch 3 in 1 Metal Fabrication Brake Shear and Slip Roll

Sheetmetal Brake, Shear and Slip Roll all in one. Compact design meant to save space and time when working with sheetmetal
Sheetmetal Brake, Shear and Slip Roll all in one. Compact design meant to save space and time when working with sheetmetal
Eastwood Compact 12 Inch 3 in 1 Metal Fabrication Brake Shear and Slip Roll is rated 4.7 out of 5 by 3.
  • y_2024, m_2, d_24, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_21302, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 12.07ms
  • REVIEWS, PRODUCT
Reg. $472.99 Sale $399.97 Save $73.02
Loading...
Loading...
Save for Later
Sheetmetal Brake, Shear and Slip Roll all in one. Compact design meant to save space and time when working with sheetmetal

1 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More
The Eastwood Service Plan Protect your purchase with comprehensive coverage 24/7 support No deductibles, no additional fees Parts & labor costs included Transferable coverage and more

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
Eastwood Compact 12 Inch 3 in 1 Metal Fabrication Brake Shear and Slip Roll

Product Overview:

Description

Sheetmetal Brake, Shear and Slip Roll all in one.

The Eastwood 12 Inch 3 in 1 Brake Shear and Slip Roll Features:

  • Compact design meant to save space and time when working with sheet metal
  • 5 removable fingers enable you to create boxes and pans up to 12" wide
  • Adjustable stops for both the shear and brake that enable repeatable actions without measuring each time
  • Spring loaded hold down enables one handed operation of the shear
  • Grease-able fittings for the rotating cam assembly

This machine was designed for one persons ease of use.

Warranty

1 Year

Specifications

Material Length: 12”
Roller Diameter: 1.5"
Maximum Material Working Thickness: (Steel) 18 Gauge
Maximum Material Working Thickness: (Aluminum) 16 Gauge
Maximum Material Working Thickness: (Stainless) 24 Gauge
Finger Lengths: 1", 2" (2), 3" and 4"
Wire Forming Sizes: 3/32", 1/8", and 1/4”
Dimensions: 15' High x 15" Wide x 11" Deep
Weight: 97 lbs.
Frame Material: Cast Iron

In the Box

Contents

(1) Eastwood 3 in 1 Shear Brake and Slip Roller with Handle

Guides & Accessories

Instructions

Click here for product instructions.

Safety Information

This tool has leveraged rotating components that generate greatly amplified crushing and bending forces which can quickly cause severe injury! Keep fingers and hands away from moving parts when operating.

Handling sharp metal can cause serious cuts. Wear thick, well fitting work gloves to prevent cuts from handling sharp metal.

Accessories

Eastwood 12 in. 3 In 1 Brake Shear Roll Combinations Sheet Metal Brake And Slip Roll Machine

Application Tips

For use to bend, roll and cut sheet metal

Reviews

Rated 5 out of 5 by from Works great!!! bough this a couple weeks ago, there were a couple parts damaged when it arrived. I called Eastwood and they were shipped the following day. once the parts arrived i made some pieces out of 22 gauge steel it worked just fine the shear worked easily and the slip roll was easy to use. Also tried some aluminum sheet and worked well with the same results.
Date published: 2022-10-30
Rated 5 out of 5 by from Pleased Works very well, everything was aligned and good to go (except for some missing parts lost in shipping yet Eastwood expeditiously replaced)
Date published: 2022-04-15
Rated 4 out of 5 by from Great small shop tool I just received my 3 in 1 and even right out of the box after set up it was easy to use, and I can see where it may struggle with 18 gauge but I had no problem doing basic things with 20 gauge. Roller was smooth operating, bender was easy to see and use. Shear worked and on a standard workbench height was simple enough to use. Handle can be mounted on either side of the machine which is nice. Crated for delivery and arrived with no damage. I'm looking forward to doing small projects around the shop with it.
Date published: 2020-07-06
  • y_2024, m_2, d_24, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_21302, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 20.39ms
  • REVIEWS, PRODUCT

Questions & Answers

Can this break bend a U shape 1” on the bottom and 1/2” sides?

Asked by: Chris
BENDING BRAKE OPERATION With all the fingers in place, bends up to 90° and can be made in 20 gauge mild steel panels up to 12” wide. It will not bend a "U" shape.
Answered by: Wil Project Advisor
Date published: 2023-11-29

Can this machine flatten a piece of 22 ga. sheet copper. The roller seems to only be able to coil pieces. Can one of the three rollers be removed to allow the sheet to come out flatter? I bought this machine to flatten the cut edges of sheet copper pieces

Asked by: Robert
Hi Nick, Thanks for the input. Feeding the piece in backwards just coils it in the opposite direction. The machine does work to straighten or even out cut edges deformed from using hand shears, but I was hoping to avoid having to hammering the whole piece flat with a mallet for my purpose afterwards. Thanks again- Rob
Answered by: Robert
Date published: 2022-09-28

can we cut a 1/8 '' thick plastic? what is the height that the knife lifts?

Asked by: EZ77
The shearing edge lifts 3/4" off the base, but it will not work for 1/8" plastic.
Answered by: Nick BC
Date published: 2022-06-02

Would this shear cut 14 ga. sterling silver sheet?

Asked by: Anne
14 ga. is too thick for this machine.
Answered by: Nick BC
Date published: 2022-05-26

Would this work for making boxes? If so what is the height limit for the sides?

Asked by: DOTR
The description says it has 5 removable fingers. Is there anyone who has made a box with this that can answer?
Answered by: DOTR
Date published: 2022-05-29

How will this work on aluminum license plates ?

Asked by: Chefd
As long as those plates are thinner than the max 16ga aluminum and will fit in the 12" dimensions you should have no issues using this machine.
Answered by: ZachC
Date published: 2021-03-12

Can this machine roll cones?

Asked by: Viroos
This machine would not work for this sort of application.
Answered by: Kelly H
Date published: 2023-02-14

Can I make a 2-1/2" radius in 0.05" 6Al-4V (grade 5) annealed titanium alloy? Also what about a 2" radius in 0.05" Inconel 625 or Alloy X?

Asked by: anorsworthy
This tool will not be able to handle this request.
Answered by: Bob G
Date published: 2021-01-15
