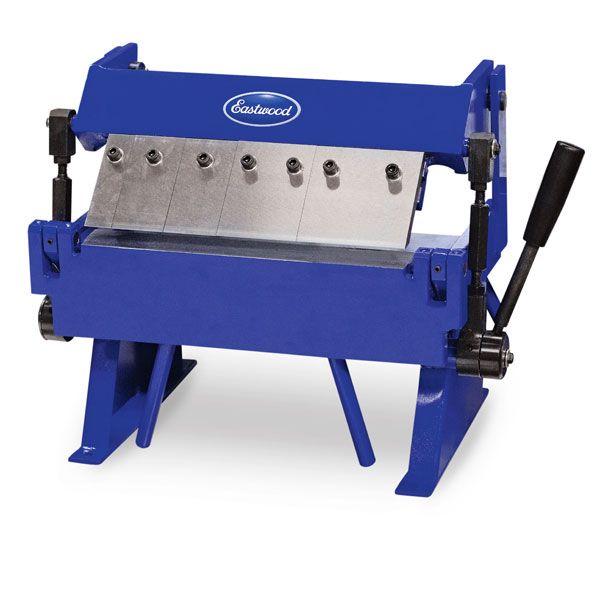

Eastwood 12 Inch Box and Pan Sheet Metal Brake

Product Overview:

Description

The Eastwood 12 Inch Box and Pan Sheet Metal Brake is the perfect size for a small shop or home use.

The Eastwood 12 Inch Box and Pan Sheet Metal Brake Features:

  • Bends sheet metal up to 12"
  • Makes bends up to 135 degrees
  • Removable fingers to create pans or boxes
  • Perfect size for small shop
  • Bends up to 20 gauge steel, 16 gauge aluminum or 24 gauge stainless steel

The Eastwood 12 inch Box and Pan Brake is a precision engineered metal working tool designed to produce accurate, variable length bends in angles up to 135° in mild, 20 gauge sheet steel and 18 gauge aluminum in widths up 12”. Create complex shapes such as floor reinforcement channels and ribs, sections of corrugated pickup bed floors; truck bedside panels, inner fender structures and much more, all with one convenient bench-mounted tool.

Eastwood 12 Inch Box and Pan Sheet Metal Brake
Eastwood 12 Inch Box and Pan Sheet Metal Brake
Eastwood 12 Inch Box and Pan Sheet Metal Brake

Warranty

1 Year

Specifications

Metal Width Bends up to 12"
Metal Gauge Up to 20 gauge steel, 16 gauge aluminum or 24 gauge stainless
Bend Angles Up to 135 degrees
Removable Fingers 5

(1) 1 x 1 inch

(2) 2 x 2 inch

(1) 1 x 3 inch

(1) 1 x 4 inch

Mounting Area Dimensions 14” x 10.75”
Overall Dimensions 16.5” wide x 10.75” deep x 14.25” tall
Weight 61.6lbs

In the Box

Contents

(1) Eastwood 12 Inch Box and Pan Sheet Metal Brake

Guides & Accessories

Instructions

Safety Information

This tool is considerably heavy. Use extreme caution when mounting or dismounting when using a vice or other temporary fixturing arrangement. Personal injury could occur if tool is dropped. Pinch Hazard. Keep fingers away from moving parts when operating. Wear appropriate work gloves and protective clothing. Sheet metal will often have sharp edges which can cause cuts to hands and arms. Wear appropriate eye protection. Metal chips can be ejected during the bending process.

Accessories

Eastwood 12 in. Box And Pan Sheet Metal Brake Easy Adjustment Box With 5 Adjustable Fingers

Application Tips

Bends Sheet Metal Up To 12 in. And Makes Bends Up To 135 Degreess

Reviews

Rated 5 out of 5 by from Beyond expectations It stated 20 gauge but can easily do 16 gauge cold rolled steel. I haven't used it for a prolonged period of time and don't expect to continue the use on thicker gauge materials but it does work beyond the criteria specified.
Date published: 2023-05-25
Rated 5 out of 5 by from 12” Eastwood Sheet Metal Pan Brake The 12” Eastwood Brake is an excellent tool for bending small sheet metal ductwork. It offers portability to bring on jobs for small ducts, & custom sheet metal angles. Great investment and will last a lifetime.
Date published: 2022-01-08
Rated 5 out of 5 by from 12 in Metal Brake The perfect tool for my purposes. It works like a charm.
Date published: 2022-01-06
Rated 5 out of 5 by from Great product I picked this up to work in some metal projects I was working on. The saleswoman in the Edison store suggested this brake and a shear vs the 3 in 1 unit I was looking at for the types of work I was contemplating. I’m glad she did. This is a great small bender and the fingers really make it versatile for compound and technical bends.
Date published: 2021-11-27
Rated 5 out of 5 by from great product quality little tool, easy to use ;perfect in a small shop
Date published: 2021-07-28
Rated 5 out of 5 by from Capacity better than advertised Impressed with the weight and function. Regarding metal gauge thickness, this little brake bends 22 gauge stainless steel (6” wide) without any problem.
Date published: 2021-06-24
Rated 5 out of 5 by from Excellent Finger Break for the money The break is well made, especially for the slim cost.
Date published: 2021-02-19
Rated 5 out of 5 by from Great piece of machinery Honestly couldn’t ask for more!!! It will meet your expectations for sure
Date published: 2018-05-16
  • y_2024, m_4, d_15, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.41
  • cp_1, bvpage1
  • co_hasreviews, tv_4, tr_8
  • loc_en_US, sid_20664, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 6.48ms
  • REVIEWS, PRODUCT

Questions & Answers

What is the bend radius created by the tooling on this brake?

Asked by: andrig
The teeth on this brake come to an edge, so its not exactly making a smooth radius. Since this is only for 20 gauge steel or thinner, any radius present will be very small.
Answered by: Nick BC
Date published: 2022-06-02

Will this bend brass strips .064 think and 3/4 in wide? That's the same as 16 gauge but it's much harder than aluminum

Asked by: Steven
With that surface being harder than aluminum we would not recommend this machine for that use.
Answered by: ZachC
Date published: 2022-03-02

Will this took bend 22 gauge stainless steel that is a maximum of 6” wide?

Asked by: Mark
THIS TOOL IS RATED TO BEND 24 GAUGE STAINLESS STEEL.
Answered by: vince
Date published: 2021-06-13

Do you sell replacement fingers for this brake, how much do they cost?

Asked by: Nigel
Please contact our Sales team at: 800- 343- 9353 for pricing and availability.
Answered by: Kelly H
Date published: 2020-06-15

Will this unit bend stainless steel stripe of 16 gauge 3/4" wide in to a 90 degree bend?

Asked by: StevenE
This would not be able to bend 16 gauge stainless. Unfortunately as state din the description the stainless rating for this tool is 24 gauge.
Answered by: Kelly H
Date published: 2020-06-08

Can this bend 3" wide - 1/16" thick hot rolled steel at 90 degree?

Asked by: Christina
Unfortunately this tool is only rated to bend up to 20 gauge steel.
Answered by: Scott C
Date published: 2024-04-06

I need to make sleeves approximately 7 inches high and 6 inches square. Will this unit do this? These sleeves protect the bottom of 6x6 post from damage. Thanks Paul V Haddaway

Asked by: None
This unit will not have the ability to make the sleeves you are referring to. It will only bend about a 1 inch lip without hitting the machine. It sounds like you would be better to look at our Versa bend brake.
Answered by: Scott C
Date published: 2019-01-26

will this bend 20 gauge stainless steel?

Asked by: comfuture
This unit will bend up to 24 gauge stainless steel.
Answered by: Scott C
Date published: 2021-08-12
