Item # 33980-58221

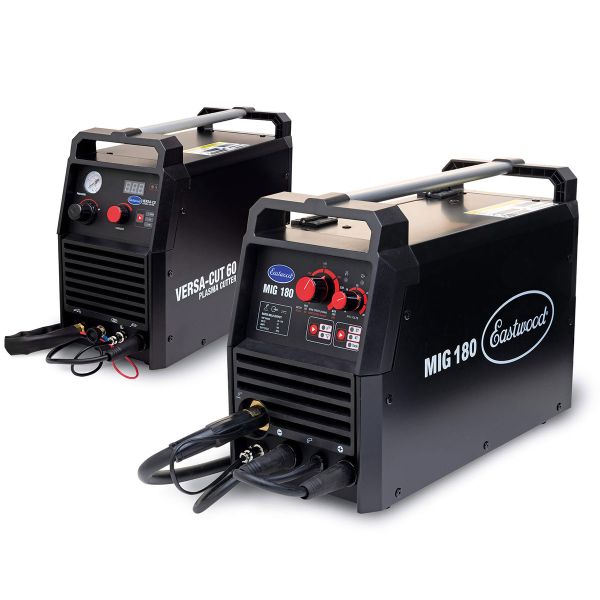

Eastwood 180 AMP MIG Welder and 60 AMP Versa-Cut Plasma Cutter Combo Deal

HUGE SAVINGS To Weld Up To 5/16-in. and Cut Up to 7/8-in. with a MIG 180 and Versa-Cut 60
HUGE SAVINGS To Weld Up To 5/16-in. and Cut Up to 7/8-in. with a MIG 180 and Versa-Cut 60
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 5.78ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Grouped product items
Product Name Qty
Eastwood 180 Amp MIG Welder
In Stock
Reg. $529.99 Sale $499.97 Save $30.02
Eastwood Versa Cut 60 Amp Plasma Cutter
In Stock
Reg. $799.99 Sale $749.97 Save $50.02

Starting at$1,249.94

Save for Later
HUGE SAVINGS To Weld Up To 5/16-in. and Cut Up to 7/8-in. with a MIG 180 and Versa-Cut 60

3 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
Eastwood 180 AMP MIG Welder and 60 AMP Versa-Cut Plasma Cutter Combo Deal

Product Overview:

Description

Weld Up To 5/16-in. and Cut Up to 7/8-in. with this Awesome Cut and Weld Combo Deal!

Both units operate on 120V or 240V and feature 2T and 4T modes while being lightweight and portable and using common consumables to keep you cutting and welding. MIG Welding and Plasma Cutting are two of the most common jobs in auto restoration and metal fabrication and this kit combines our popular, incredibly versatile units into one great combo. Both units are backed by a 3 Year Warranty.

.

Eastwood MIG 180 Features:

  • Operates on either 120V or 240V
  • Welds mild and stainless steel, 24 gauge to 5/16-in. (3/16-in. on 120V)
  • Welds aluminum, 14 gauge to 1/4" with a Spool Gun (available separately or with the MIG 180)
  • 30-180 amp welding range
  • Latest IGBT inverter technology
  • Lightweight and portable at less than 26 lbs
  • Metal drive motor for smoothest operation
  • Uses .023 - .035 wire in 4-in. and 8-in. spools
  • Long ground, torch and power cables
  • 2T/4T modes for long welds
  • Tack weld setting for consistency in sheet metal
  • 30% duty cycle at 180 Amps and 60% at 130 Amps
  • Includes regulator and hose for optimum MIG welding
  • Uses common Tweco style consumables
  • Can also be used for Flux-Core welding if you don't have gas
  • Compare to similar welders that sell for hundreds more
Eastwood MIG 180 Welder
Eastwood MIG 180 Welder

Versa Cut 60 Plasma Cutter

Quickly and precisely carve all types of metal as well as body panels and more with this heavy-duty Eastwood plasma cutter. The adjustable 60-amp output and Trafimet CB70 torch can cut through metal ranging from 24-gauge sheet metal to thick 7/8-in. plates. Use it on mild steel, stainless and aluminum in your shop or at a worksite.

The Eastwood Versa Cut 60 Plasma Cutter Features:

  • 120 or 240 Volts AC input
  • Cuts thin sheet metal to thick 7/8-in. thick plate (cuts 3/16-in. on 120 VAC)
  • Digital amperage readout for increased precision
  • Long 20-ft. torch cable and 10-ft. ground cable with clamp
  • Rated 60 amp output on 240 VAC; 30 amp on 120 VAC
  • Lightweight and Portable - only 31 lbs!
  • 2T/4T Torch Mode for smoother long cuts
  • Durable Duty Cycle of 60% @ 60 amps on 240v and 60% @ 30 amps on 120v
  • Uses common consumables that are available at Eastwood or most welding supply stores

**Note: Due to the High Frequency start feature, we do not recommend using this machine on a CNC plasma table.**

This unit comes with a heavy-duty IGBT inverter, internal moisture separator, long cables and adjustable air pressure regulator assuring long life and accurate cuts. It also includes a self-starting arc which helps in areas where rust and contaminants may be an issue. It has a duty cycle of 60 percent for long continuous cuts. At only 31 pounds, it is light enough to bring to a friend's shop, a race track or any place metal needs to be cut.

Warranty

3 Year Warranty on Each Machine

Specifications

MIG 180 Specifications

Rated Electrical Input:

240 VAC; 29.6 AMP

120 VAC; 24 AMP

Required Breaker Size: 30 amp
Power Voltage: 1 Phase, 120VAC / 240VAC, 60 Hz
Power Cord Receptacle Plug: NEMA 6-50R
Max Voltage at No Load: 61 V DC
Rated Duty Cycle:

120V: 30% @ 90 Amps

120V: 60% @ 65 Amps

120V: 100% @ 50 Amps

240V: 30% @ 180 Amps

240V: 60% @ 130 Amps

240V: 100% @ 100 Amps

Torch Consumables: Tweco style nozzle and contact tips
Wire Feed Rate (IPM/Inches Per Minute):

120V: 80 - 280 IPM

240V: 80 - 551 IPM

Wire Sizes: 0.023-in. (0.6mm) – 0.035-in. (0.9mm) mig wire

0.030-in. (0.8mm) – 0.035-in. (0.9mm) flux core wire

Welding Wire Spool: 4-in. and 8-in. spool, up to 11 lbs
Maximum Welding Thickness - Steel: 5/16-in.
Output Current Range:

120V: 30 - 120 Amps

240V: 30 - 180 Amps

Weight: 25.3 lbs (11.5 kg)
Overall Dimensions: 18-in. X 8.5-in. X 13.25-in.

Versa-Cut 60 Plasma Cutter Specifications

Input: 240 VAC and 120 VAC, 50/60 Hz, 1 Ph
Rated Input Current 120 VAC: 39.4 Amps
Rated Input Current 240 VAC: 44.5 Amps
Output Current Adjustment 120 VAC: 20 - 30 Amps
Output Current Adjustment 240 VAC: 20 - 60 Amps Amps
Output Voltage on 120 VAC: 88V - 92V
Output Voltage on 240 VAC: 88V - 104V
Power Cord Receptacle Plug: NEMA 6-50P
Power Cord Length: 6'
Output: 60 Amps
Duty Cycle: on 120 VAC: 60% @ 30 Amps and 100% @ 23 Amps
Duty Cycle: on 240 VAC: 60% @ 60 Amps and 100% @ 46 Amps
Torch: Trafimet CB70
Torch Tip: 0.1mm
Max Cut: 7/8-in. on 240 VAC; 3/16-in. on 120 VAC
Air Compressor Requirements: 5-7 cfm @ 20 - 60 psi
Torch Cable Length: 20-ft.
Ground Cable Length and Gauge: 10-ft. long, 5 gauge wire
Cooling Method: Fan
Air Connection Thread: 1/4-in. NPT
Unit Dimensions: 17.01-in. Long X 14.69-in. Tall X 8.46-in. Wide
Unit Weight: 31 lbs

Shipping & Handling

Ships via UPS

In the Box

Contents

  • MIG 180 Welder
  • MIG Wire Spool 0.030 (0.8mm), 4-in. (2 lbs)
  • Gas Regulator with hose
  • 9.5-ft. Ground Clamp
  • NEMA 5-15P to NEMA 6-50R Adapter Cord (240v to 120v), 2-ft.
  • MIG Torch, Nozzle, 0.030-in. (0.8mm) Contact Tip and 8.5' Cable
  • Face shield with lens and handle
  • Welding brush/hammer
  • Contact tip wrench
  • Additional contact tips (.030" and .035")
  • Instruction Manual
  • 3-Year “No Hassle” Warranty
  • Versa-Cut 60 Amp Plasma Cutter
  • (1) Trafimet CB70 Torch and 20-ft. Supply Line
  • (1) 10-ft. Ground Lead and Clamp
  • (1) NEMA5-15P to NEMA 6-50R, 2-ft. (240v to 120v Cable)
  • (1) Torch Flow Tester
  • (1) Electrode Wrench
  • (1) Replacement Electrode
  • (1) Replacement Nozzle
  • (1) Instruction Manual

Guides & Accessories

Instructions

Click here for MIG 180 product instructions.

This machine has smart wire feeding technology to prevent forcing excessive wire into the start of the weld. When the machine is not welding and feeding wire, it will feed wire at a slow fixed speed for approximately five seconds, and then speed up to max speed. This is to quickly feed wire through the torch. Once the machine senses that it is welding it will automatically run at the preset wire speed that the user has set on the machine. Do not be alarmed when the wire feeds slowly while not welding.

Click here for Versa-Cut 60 product instructions.

Safety Information

Please follow all safety instructions provided with the machines and wear proper safety equipment.

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 6.49ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

How is this a combo deal when you can buy both machines individually and the price works out the same?

Asked by: Wiley Farms
This saves you one button press... this is just a grouped product that occasionally gets promoted for a cost savings. Sorry for the confusion.
Answered by: Nick BC
Date published: 2024-06-17
