Item # 98027 BRAND: Eastwood

Eastwood 19 Inch Metal Bead Roller and Power Drive System with Dies

Easily Form the Center of a 38" Panel with this Bead Roller Plus Drive Motor
Easily Form the Center of a 38" Panel with this Bead Roller Plus Drive Motor
Eastwood 19 Inch Metal Bead Roller and Power Drive System with Dies is rated 4.5 out of 5 by 108.
  • y_2023, m_9, d_29, h_4
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_29, tr_79
  • loc_en_US, sid_98027, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 59.63ms
  • REVIEWS, PRODUCT
$609.98
Loading...
Loading...
Save for Later
Easily Form the Center of a 38" Panel with this Bead Roller Plus Drive Motor

1 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support

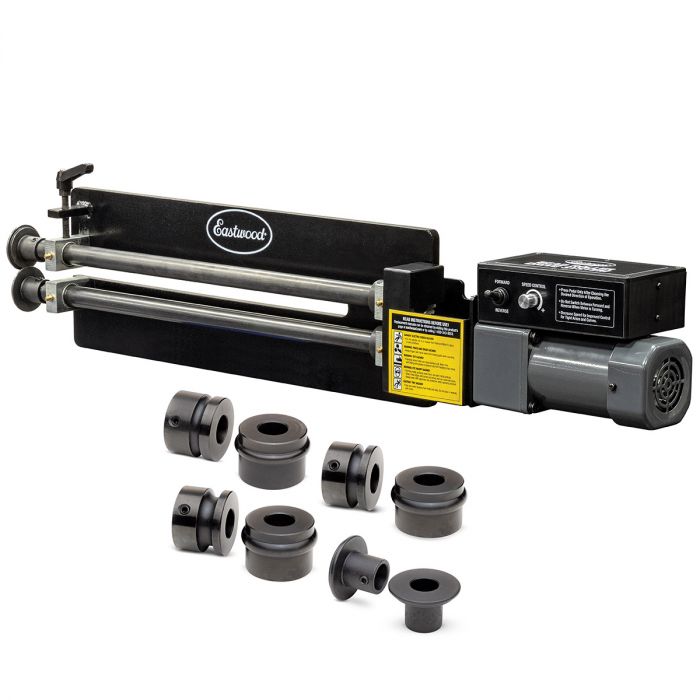

Eastwood 19 Inch Metal Bead Roller and Power Drive System with Dies

Product Overview:

Description

Why Buy The Eastwood Bead Roller with a Power Drive?

  • Fraction of the cost of a standard motorized bead roller
  • Can be operated with just one person
  • Add strength and rigidity to metal panels
  • Make replacement floor pans, firewalls, trunk floors and more
  • Create channels, flanges and a multitude of profiles
  • Fabricate decorative custom designs
  • Powerful 1/6hp 120v reversible electric motor
  • Infinitely variable speed control
  • Foot Pedal and speed controller make it easy to keep a consistent speed while forming in a straight line or around bends

Eastwood Bead Roller Features

  • Handles up to a 38" wide work piece
  • 4 mandrels included
  • Mounts securely in your bench vise
  • Forms steel up to 18 gauge and aluminum up to 16 gauge
  • Industry standard 22mm shafts

Add strength and rigidity to your project's sheet metal parts

The Eastwood Bead Roller is excellent for producing strengthening ribs in panels used in creating replacement floor pans, firewalls, trunk floors, inner fenders, etc. and also for creating decorative custom designs in door panels, dashes and much more with the range of included beaded Rollers.

Add strength and rigidity to your project's sheet metal parts

One Man Operation

With the Eastwood Bead Roller Power Drive System, it no longer takes two people to fabricate a metal panel. The Drive System features a 3 Position Toggle Switch with an infinitely variable Speed Controller and Foot Switch. These features provide convenient one-person operate.

Eastwood Power Bead Roller Drive System

Powerful Drive System

The Eastwood Bead Roller Drive System features a powerful 1.65-amp motor with an integral 75:1 gear reduction that enables you to easily forms ½” beads in 18-gauge steel. Unlike other motors on the market, the Eastwood Drive System has a durable industrial style motor, which gives you more power then you need.

Eastwood Power Bead Roller Drive System

Includes Offset Dies

Also create channels, flanges and a multitude of profiles with the included offset dies. This one set of offset dies can perform the same work as many flange die sets.

Includes Offset Dies

Example of 3 different rib sizes create with offset dies

Eastwood Bead Roller Offset Dies

Specifications

32044 Eastwood Bead Roller

• Maximum material working thickness: Steel = 18 Gauge, Aluminum = 16 Gauge, Stainless = 20 Gauge
• Maximum panel width (working from center) = 38"
• Throat Depth: 19 Inches
• Dimensions: 31" Width x 11" High x 5" Depth
• Weight: 50 lbs.
• Constructed of 1/2" Solid Steel Plate

21111 Eastwood Power Drive System

Motor: 1/6 HP 1.65 Amp
Gear Reduction: 75:1
Toggle Switch: 3 Position
Infinite Speed Adjustment: 0 – 20 RPM (11.8FPM)
Speed Control Knob: Infinitely Variable
Foot Switch: On/Off
Length: 20.5"
Width: 8.08"
Height: 9.06"
Weight: 18.5 lbs.

In the Box

Contents

32044 Eastwood Bead Roller

(1) 19” Throat Bead Roller Frame
(1) Crank Handle
(1) Roller Tensioning Lever
(1) Set of Offset/Tipping Dies, pre-installed

(3) Complete Sets of Roller Dies:
- 1/4” Bead Forming Dies
- 3/8” Bead Forming Dies
- 1/2” Bead Forming Dies

(6) Die Set-Screws

21111 Eastwood Power Drive System

(1) 1/6 HP Electric Motor
(1) Speed Controller
(1) Foot Switch
(1) Mounting Bracket
Mounting Hardware

Guides & Accessories

Instructions

Click here for Bead Roller instructions


Click here for Power Drive instructions

Safety Information

Wear work gloves and protective clothing. Sheet metal will often have sharp edges which can cause cuts to hands arms and face. Keep fingers and hands away from moving parts when operating.

Click here to see safety products

Reviews

Rated 5 out of 5 by from 19 Inch Bead Roller and drive motor Came in 2 boxes, some assembly required. Worked as advertised.
Date published: 2023-09-24
Rated 5 out of 5 by from Bead roller motor I shopped around and this was the easiest conversion. Great.
Date published: 2023-07-30
Rated 5 out of 5 by from Bear roller drive system Bead Roller Drive System added to my Bead Roller came in handy. Works very well and glade i purchased it.
Date published: 2023-03-28
Rated 5 out of 5 by from Good Item with needed improvements work great, just wish you had a foot switch that reversed it
Date published: 2023-03-27
Rated 5 out of 5 by from Amazing fit! Drive unit adapted to my bead roller seamlessly. Could not believe it went that smoothly. Loving it!!
Date published: 2023-03-21
Rated 5 out of 5 by from Works with adjustable top shaft The bead roller works fantastic....able to dial it down to zero Easy to install on my roller with adjustable top shaft .. Just drilled two new holes in the side plate and tapped new threads Powerful motor
Date published: 2023-03-01
Rated 5 out of 5 by from A great investment Been eyeing this for years and watching as Eastwood made improvements. Last year I finally bit down and bought the whole setup including motor, stand and extra rollers. After assembly and setup I turned out my first panel within minutes and couldn't be happier. Really looking forward to learning more about panel forming, shrinking and stretching sheet metal, picking up where I left off in high school metal shop.
Date published: 2023-01-26
Rated 5 out of 5 by from
Date published: 2022-12-16
  • y_2023, m_9, d_29, h_4
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_29, tr_79
  • loc_en_US, sid_98027, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 8.85ms
  • REVIEWS, PRODUCT

Questions & Answers

What are the dimensions of the bead roller motorized unit, length, width and height

Asked by: Wendell
Specifications Motor 1/6 HP 1.65 Amp Gear Reduction 75:1 Toggle Switch 3 Position Infinite Speed Adjustment 0 – 20 RPM (11.8FPM) Speed Control Knob Infinitely Variable Foot Switch On/Off Length 20.5" Width 8.08" Height 9.06" Weight 18.5 lbs.
Answered by: GeneB
Date published: 2023-03-24

so then is this a one and done cost ... there is nobody here during the day so I can't be paying thier so called brokerage fees .. I undestand that even through Fedex I'm still paying all the same fees but it was a one and done fee nothing extra ..

Asked by: Larry55
Be cost of product and the shipping carrier cost.
Answered by: gm75
Date published: 2023-02-15

So.. why is it that when I look at the description page for this item . it says New Faster Shipping to Canada via Fedex.. but when I go to the checkout it wants to ship it by UPS ?.. I don't like UPS for shipping to Canada !!

Asked by: Larry55
We used to ship Fed-Ex, but currently we ship UPS. Sorry for the confusion.
Answered by: Nick BC
Date published: 2023-02-13

Just received my second drive unit, the speed control does not work, no mater what it is set to it goes the same speed?

Asked by: Smac
Please reach out to customer solutions for warranty service help@eastwood.com or 800-343-9353.
Answered by: Nick BC
Date published: 2023-01-03

Is it feasible to do 16 gauge cold rolled with this bead roller?

Asked by: Joel
That is thicker than the maximum recommended thickness of 18 gauge for steel, so we cannot guarantee satisfactory performance, sorry.
Answered by: Nick BC
Date published: 2022-12-12

I can’t justify motorizing a bead roller, but I am wondering how possible it is to form a straight bead if working alone?  Thank you!

Asked by: Rhoadsrunner
Its possible, but much better easier to have a friend, your wife, your kid, and maybe your dog crank while you guide the metal.
Answered by: Nick BC
Date published: 2022-06-02

What is the torque spec. on this motor?

Asked by: CJw08
There is no torque spec, but the motor is rated at 120W and is more than capable of driving all our bead rollers at their respective material capacity ratings.
Answered by: Nick BC
Date published: 2022-06-01

Is this item UL listed?

Asked by: J River
The entire unit is not UL listed, but some components such as the direction switch, foot switch, and power cord are.
Answered by: Nick BC
Date published: 2022-05-27
