Item # 20665 BRAND: Eastwood

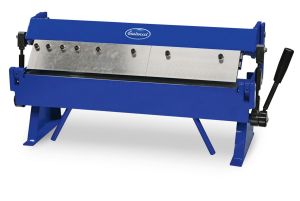

Eastwood 24 Inch Box and Pan Sheet Metal Brake

Create your own pans and boxes
Create your own pans and boxes
Eastwood HotCoat® Powder Coat Sunshine Yellow - 25lb is rated 4.3 out of 5 by 19.
  • y_2024, m_5, d_24, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_5, tr_14
  • loc_en_US, sid_20665, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 40.31ms
  • REVIEWS, PRODUCT
Reg. $524.99 Sale $449.97 Save $75.02
Loading...
Loading...
Save for Later
Create your own pans and boxes

1 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More
The Eastwood Service Plan Protect your purchase with comprehensive coverage 24/7 support No deductibles, no additional fees Parts & labor costs included Transferable coverage and more

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support

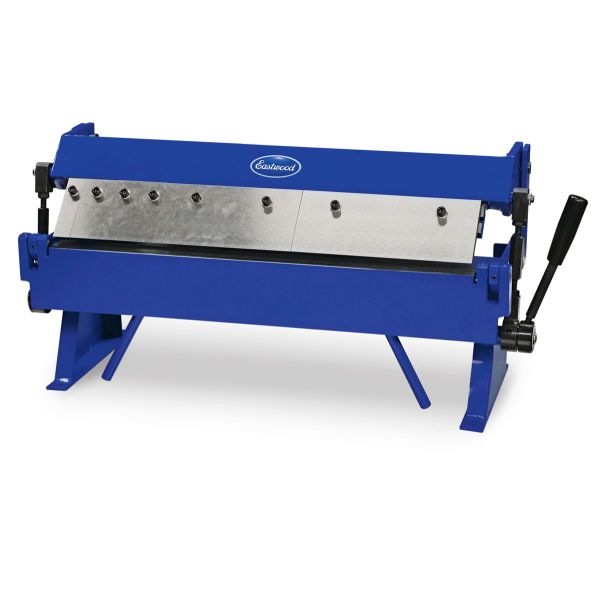

Eastwood 24 Inch Box and Pan Sheet Metal Brake

Product Overview:

Description

The Eastwood 24 Inch Box and Pan Sheet Metal Brake is the perfect size for a small shop or home use.

The Eastwood 24 Inch Box and Pan Sheet Metal Brake Features:

  • Bends sheet metal up to 24"
  • Use on up to 20 gauge steel or 16 gauge aluminum
  • Makes bends up to 135 degrees
  • Removable fingers to create pans or boxes
  • Perfect size for small shop
Eastwood 24 Inch Box and Pan Sheet Metal Brake
Eastwood 24 Inch Box and Pan Sheet Metal Brake

The Eastwood 24 inch Box and Pan Brake is a precision engineered metal working tool designed to produce accurate, variable length bends in angles up to 135° in mild, 20 gauge sheet steel and 18 gauge aluminum in widths up 24”. Create complex shapes such as floor reinforcement channels and ribs, sections of corrugated pickup bed floors; truck bedside panels, inner fender structures and much more, all with one convenient bench-mounted tool.

Warranty

1 Year

Specifications

Metal Width Bends up to 24"
Metal Gauge Up to 20 gauge steel or 16 gauge aluminum
Bend Angles Up to 135 degrees
Removable Fingers 5
(1) 1 x 1 inch
(1) 1 x 2 inch
(1) 1 x 3 inch
(1) 1 x 8 inch
(1) 1 x 10 inch
Mounting Area Dimensions 26” x 10.75”
Overall Dimensions 28.5” wide x 10.75” deep x 14.25” tall
Weight 94.6lbs

In the Box

Contents

(1) Eastwood 24 Inch Box and Pan Sheet Metal Brake

Guides & Accessories

Instructions

Safety Information

This tool is considerably heavy. Use extreme caution when mounting or dismounting when using a vice or other temporary fixturing arrangement. Personal injury could occur if tool is dropped. Pinch Hazard. Keep fingers away from moving parts when operating. Wear appropriate work gloves and protective clothing. Sheet metal will often have sharp edges which can cause cuts to hands and arms. Wear appropriate eye protection. Metal chips can be ejected during the bending process.

Accessories

Eastwood 24 in. Box And Pan Sheet Metal Brake Easy Adjustment Box With 5 Adjustable Fingers

Application Tips

Bends Sheet Metal Up To 24 in.

Reviews

Rated 5 out of 5 by from Simple and easy to use With so many metal brakes out there I took a chance on this one and I was not disappointed. It's heavy enough that bending 20g was very easy. Having the different fingers is a must to build any kind of pan. The description says 1" lips but I believe you can bend a 3-4" lip. Setup was super simple as well as adjusting the metal place holder. I would recommend this unit for basic pan/metal braking.
Date published: 2023-01-22
Rated 5 out of 5 by from 24” metal brake This was a great bender, it was very easy to use and to adjust and made clean bands. I bought it to do 1/8” steel I knew it wasn’t rated for it, so I welded on a few pieces and it bends It like a champ! Eastwood has always been very good to me, their customer service is fabulous I would recommend this to anyone!
Date published: 2022-01-21
Rated 5 out of 5 by from Very good little brake ! I can make all the small stuff on this brake. It's like a small version of my big brake. I really prefer to use this one because of the ease of adjustments. It's well designed and it's light enough that it can be carried to job sites in the back of a small SUV. Good stuff!
Date published: 2021-11-08
Rated 5 out of 5 by from Rigid and solid Bought this to bend a variety of things...and it works as advertised
Date published: 2021-03-01
Rated 5 out of 5 by from Big Work Saver I was wondering how I was going to make small tapered channels for my airplane, since they can't be purchased anywhere. This brake did the job beautifully.
Date published: 2021-01-30
Rated 5 out of 5 by from Great value!! Bought this last week to use for a furnace install. Wow!! What a great value!! I even got lucky and caught it on sale, which made it easier to pull the trigger..... I had to make an adapter plenum as my new furnace was shorter and a little narrower. Also had to make a double fold on top to set the old plenum on as the A/C coil was uncased and riveted at the very bottom of plenum so couldn't use the s-cleats. Turned out great, even with my rusty sheet metal skills (haven't done any sheet metal fab since high school). I used this in conjunction with the rotary sheet metal shear and that combination made it easy for professional quality results!! Definitely a good brake for your shop. We plan on doing some restoration work on the kids truck, so I know this brake will come in handy in the future. Fed-ex delivered it, was in a crate. Installed the handle and checked a few adjustments and we were bending steel!!! Again, very impressed with quality of tool!!! This will last my lifetime and then some, heavy built and quality finish, good tolerances. Thinking of maybe getting the 48" brake too.
Date published: 2019-12-17
Rated 5 out of 5 by from exceptional value I bought this to make prototypes thinking I would need to buy a better brake for production. I am now in production and have used the brake for hundreds of parts. No need to get the $2500 brake, this one does all I need. I'm sure the fancy brake would be a little better but I doubt that 99% of users would need to spend 7 times as much. The brake is rigid and does not seem flimsy at all. Just don't exceed the capacity or you may damage it as with any metal brake.
Date published: 2019-03-19
Rated 5 out of 5 by from Works just like the video shows nicely manufactur Need to replace windshild molding the brake streacher and shrinker wroked great glade I have them
Date published: 2018-10-29
  • y_2024, m_5, d_24, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_5, tr_14
  • loc_en_US, sid_20665, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT

Questions & Answers

The instructions link appears to be broken. Can you let me know how I can obtain a copy?

Asked by: khowell
Please call into 8003439353
Answered by: James Project Advisor
Date published: 2023-12-11

Can I use this to fold a 1 5" u channel in 12ga mild steel?

Asked by: Scott
12 gauge is certainly too thick. We only recommend this unit be used with 20 gauge.
Answered by: Nick BC
Date published: 2023-12-07

Any adaptors or suggestions to make a perfect 90º bend on 0.063 5051 aluminum?

Asked by: Brady
Use plenty of heat, but that thickness is outside of our 0.050" or 16 gauge aluminum max recommended capacity.
Answered by: Nick BC
Date published: 2023-12-07

My project involves fabricating 3/8" and 1/2" channels from .035" thick 4130. Will this machine handle that? Thanks

Asked by: Bud69
Yes, this would work for your material.
Answered by: Nick BC
Date published: 2023-12-07

Can I get this tool which can bend a piece with dimension 120cm. Or can I get this which suitable for more than 24 inch

Asked by: Johar
This unit can not bend a piece that is 120cm.
Answered by: ZachC
Date published: 2023-12-07

How deep a box can you bend up with this brake?

Asked by: Tin man
The max height would be about 1.5 inches.
Answered by: Kelly H
Date published: 2023-12-07

Do you offer different radius fingers for this brake?

Asked by: Bob1
Unfortunately at this current time we do not. We will be sure to mention the interest to our Product Manager in hopes of having such options in the future.
Answered by: Kelly H
Date published: 2024-02-23

Is there a chance that this will be manufactured in the USA in the near future? Thanks.

Asked by: RWR7
As of right now there are no plans to change this particular unit but we are always looking for new items to bring in.
Answered by: Scott C
Date published: 2023-12-07
