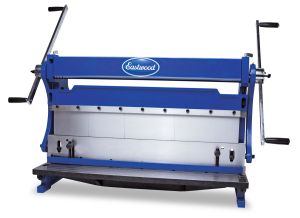

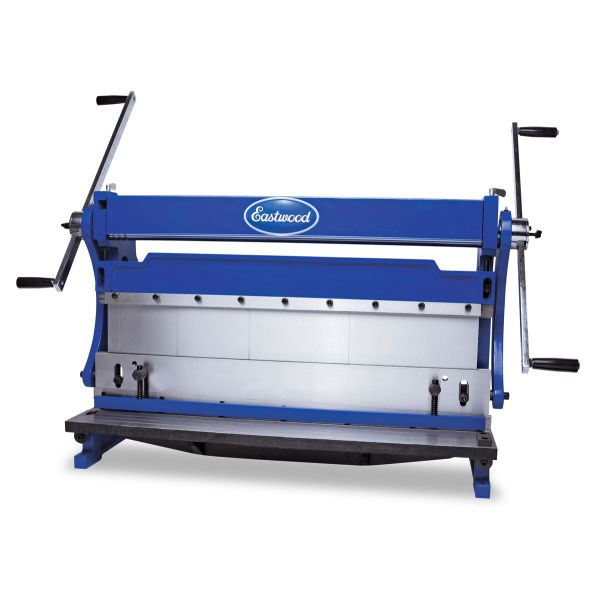

Eastwood 30 Inch 3 in 1 Sheet Metal Shear Brake and Slip Roll
Sheet Metal Brake, Shear and Slip Roll all in one
Sheet Metal Brake, Shear and Slip Roll all in one
Sheet Metal Brake, Shear and Slip Roll all in one
1 year Warranty Included
Add an Eastwood Service Plan for additional protection?
Learn More
The Eastwood Service Plan
Protect your purchase with comprehensive coverage
24/7 support
No deductibles, no additional fees
Parts & labor costs included
Transferable coverage and more
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
Eastwood Sheet Metal Brake, Shear and Slip Roll are three precision engineered metal working tools all rolled into one.
The Eastwood 3 in 1 30" Sheet Metal Shear Brake and Slip Roll Features:
- Bends, Rolls and Shears up to 30" wide
- Works on 20 gauge mild steel 24 gauge stainless and 18 gauge aluminum
- Compact space saving design
- Designed for one person operation
- Create complex shapes such channels, ribs, patch panels, cones, cylinders
Compact design meant to save space and time when working with sheet metal. 6 removable fingers enable you to create boxes and pans up to 30" wide. Adjustable stops for both the shear and brake that enable repeatable actions without measuring each time. Spring loaded hold down enables one handed operation of the shear. This machine was designed for one persons ease of use. Create complex shapes such channels, ribs,patch panels, cones, cylinders and much more in sheet metal, wire and tubing, all with one convenient bench mount tool.
Warranty
Specifications
Roller Diameter: 1.5"
Maximum Material Working Thickness (Steel): 20 Gauge
Maximum Material Working Thickness (Stainless): 24 Gauge
Maximum Material Working Thickness (Aluminum): 18 Gauge
Finger Lengths: 1", 2",3", 6",8" and 10"
Wire Forming Sizes: 1/8", 5/32", and 3/16”
Deepest Box That Can Be Created: 2.5"
Smallest Cylinder That Can Be Created: 1.5"
Weight: 316 lbs.
Construction Material: Cast Iron
Dimensions (Overall): 39" x 15.5" x 23” tall
Dimensions (for the holes needed to bolt down the feet):31-1/8" x 13.5"
Shipping & Handling
Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.
In the Box
Contents
Guides & Accessories
Instructions
Click here to download product instructions PDF
Safety Information
Handling sharp metal can cause serious cuts. Wear thick, well fitting work gloves to prevent cuts from handling sharp metal.
Click here to see safety products
Accessories
Reviews
Questions & Answers
Is the bend radius adjustable?
"A word about Bend Radius: Every gauge and type of sheet metal has a minimum Bend Radius. If an attempt is made to bend that metal sharper than the
allowable Bend Radius, it will fatigue and crack. It is best to consult an online table or a Machinery’s Handbook for the proper Bend Radius however a good
“rule-of-thumb” to employ is never set the distance of the Knife-edge of the Fingers any less than 1-1/2 X the thickness of the metal being bent."
Date published: 2022-06-27
Considering that sheet metal for an automobile body is typically 18 gauge why was this designed for only 20 gauge? Is there a 3 in 1 that will handle 18 gauge mild steel or plan for Eastwood to have one manufactured?
All of our 3 in 1 units are only able to bend 20 gauge.
Date published: 2024-07-29
Do you ship your products to Australia?
We do not ship internationally.
Date published: 2021-06-21
Do you sell spare parts for the EASTWOOD 30" 3 IN 1 SHEET METAL SHEAR BRAKE AND SLIP ROLL?
Contact the Eastwood customer Service dept at 1-800-343-9535 and they can assist you with parts availability.
Date published: 2022-05-13
What size are the holes that bolt this to a table?
The mounting hole specifications for the Eastwood 30" 3 in 1 Sheet Metal Shear, Brake and Slip Roll (21304) are, 31-1/8" center to center length and 13.5 in center to center width. The recommended size bolt & nut to mount this unit would be a 3/8" in or 9mm.
Date published: 2021-04-21
Very interested in this machine. How deep of a box or pan can you make
The Eastwood 30" 3 in 1 Sheet Metal Shear Brake and Slip Roll (21304) will bend up to a 2.5" deep box.
Date published: 2022-04-07
Can this bend the sheet metal at less than 90 degree angles?
Yes this can create bends up to 90 degrees and less.
Date published: 2021-04-04
Where overseas it’s manufactured?
This product is manufactured in China.
Date published: 2022-02-01
It appears the same machine is available under 4 other names. In the past I have spent extra $ for quality only to find it the same as the one at the local discount tool company. Any input on why or if the Eastwood 3 in 1 machine is worth the extra $?
Although we can not compare to a brand we do not sell this unit was designed in house here in PA but is manufactured overseas for us. This unit will come with a 90 day return period if you are unsatisfied with this item and a 1 year warranty again manufacturer defects.
Date published: 2023-03-30
What is the thickest ga stainless you would attempt to roll? Also what is the thickest ga stainless you would attempt to use on the metal brake?
Here are the specs. on this tool, Works on 20 gauge mild steel 24 gauge stainless and 18 gauge aluminum
Date published: 2019-09-05
Can this cut .12 of an inch chromoly steel?
This will not be able to cut Chromoly that is that thick.
Date published: 2019-08-25
Will this cut/ bend/ roll 1/8" aluminum, if so how wide?
The maximum capabilities of this tool are, 20 gauge mild steel 24 gauge stainless and 18 gauge aluminum. 1/8" is to thick of material.
Date published: 2020-02-07
Can you buy replacement teeth for the brake?
You can give us a call into the customer service department to see if we can get replacement teeth.
Date published: 2023-03-30
Can it bend material more than 90 degrees?
This will not bend past 90 degrees.
Date published: 2018-02-01
Hi I purchased one of these machines from Eastwood some Year's ago and I received the equipment with only one handle, now I am see ing that you all have two hàndles on the new version. Can I purchase another handle? Also the bushings for the rollers?
At this time these are sold as complete units and we do not have any spare parts. We have never had any parts wear out.
Date published: 2021-10-23
do you have replacement blades for this shear?
We currently do not sell replacement blades for this item.
Date published: 2020-04-06
When do you expect to have these back in stock?
Next batch is due in stock Beginning of February 2018.
Date published: 2017-12-07
Will this shear 20ga the full 30” width
This will certainly shear a full 30 inch width 20ga steel.
Date published: 2019-09-26
Where is it made at
This unit is designed in the USA but manufactured overseas.
Date published: 2020-03-21
What is the warranty period (length of time) on the Eastwood 30" 3 in 1 Sheet Metal Shear Brake and Slip Roll?
This product would be covered by our 100% Satisfaction guarantee http://www.eastwood.com/our-guarantee
Date published: 2017-12-24
Can I get away with using 16 gauge aluminum in the 3 in 1 30 inch
