Item # 32194 BRAND: Eastwood

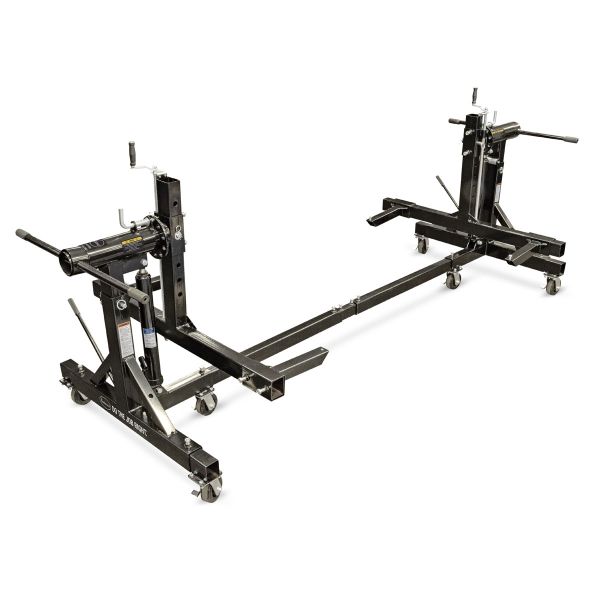

Eastwood 3000lb Rotisserie

Don’t miss a single side of your restoration with an Eastwood 3000 lb Rotisserie
Don’t miss a single side of your restoration with an Eastwood 3000 lb Rotisserie
Astro Pneumatic - 100 PCS 10-24 Steel Rivet Nuts is rated 4.4 out of 5 by 18.
  • y_2024, m_4, d_18, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.41
  • cp_1, bvpage1
  • co_hasreviews, tv_5, tr_13
  • loc_en_US, sid_32194, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 26.77ms
  • REVIEWS, PRODUCT
Reg. $1,599.99 Sale $1,349.97 Save $250.02
Loading...
Loading...
Save for Later
Don’t miss a single side of your restoration with an Eastwood 3000 lb Rotisserie

3 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More
The Eastwood Service Plan Protect your purchase with comprehensive coverage 24/7 support No deductibles, no additional fees Parts & labor costs included Transferable coverage and more

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
Eastwood 3000lb Rotisserie

Product Overview:

Description

Looking for professional results on your project car? Then why not work on your project like a professional.

The Eastwood 3000 LB Capacity Rotisserie Features:

  • Heavy Gauge Steel Components
  • Six 4" Swivel and Locking Casters
  • Total Weight Capacity 3000 Lbs
  • Low-Friction Spindle Design
  • Fine Tuning Height and Balance Adjustments
  • Generous 18' Maximum Span

Turn your restoration project into a stunning success with the help of this Eastwood Car Rotisserie. With its impressive 3000-lb. weight capacity and generous 18’ maximum span, it’s capable of lifting and spinning large vehicle components with ease. The heavy-gauge steel frame has six swivel and locking casters that allow you to turn the auto rotisserie smoothly across a flat surface in your garage or workspace. In addition, there are height and balance adjustments that can be fine-tuned to support any part of your rotisserie restoration project.

The Eastwood 3000-lb. Capacity Rotisserie allows you to comfortably access any portion of a vehicle while you’re working on an off-frame restoration. You’ll be able to achieve professional results thanks to the easy maneuverability provided by this durable frame. And with an affordable price point, weekend enthusiasts are sure to save money in the long run by investing in their own rotisserie. Car restoration can be completed faster and more efficiently with this Eastwood rotisserie.

Warranty

3 Year

Specifications

Max Weight Capacity Total Unit 3000lb (1630kg)
Max Weight Capacity per End 1500lbs (680kg)
Max Extended Capacity 18' (5.5m) Face to Face of "Tee" Beams
Overall Spindle Height (center line of vehicle) 5' (1.5m)
Overall Max Extended Length 22' (6.7m)
Overall Max Extended Width 70' (1.78m)
Minimum Mounting Bar Height 13.4" (340mm)
Maximum Mounting Bar Height 49" (1260mm)
Pin that connects the T-Beam and Spindle Assembly Q235 Carbon Steel - Diameter 0.78" (20mm)

Eastwood 3000 LB Capacity Rotisserie

Shipping & Handling

Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.

In the Box

Contents

Contains One Complete Automobile Rotisserie

Guides & Accessories

Instructions

Click here to download product instructions

Safety Information

Please read and fully understand the instruction manual before use.

Reviews

Rated 5 out of 5 by from Eastwood Rotisserie The Rotisserie works great!
Date published: 2024-01-05
Rated 5 out of 5 by from Must Have Equipment Restoration project made easier with the rotisserie. Easy to put together, only requires one person. Only comment would be to make attachments for your model vehicle. I had to make my own brackets.
Date published: 2023-11-14
Rated 5 out of 5 by from A shop "Must Have" Excellent product, only issue was that the powder coating was in some of the treaded bolt holes which prevented the bolts from starting.
Date published: 2023-01-31
Rated 5 out of 5 by from Easy to use!! This is a well balanced easy to use one man can roll around flip up rotate , I had a homemade unit and it did not work well . This is amazing tool
Date published: 2022-12-30
Rated 5 out of 5 by from Great product for a Great Price. I very seldom write a review. However I am to impressed with this rotisserie not to take the time to write a review. I restore WWII Jeep and Dodge soft skin trucks. I am currently doing a Dodge WC56 ( command car). The floor was gone and the same with the hat channel holding in the floor. So I needed a rotisserie. When I researched the market I just couldn't get my head around the costs of rotisserie's for the restoration. I live in Sierra Nevada in CA. So I looked for used rotisseries. There were none available so I had to get a new one. I have bought a lot of specialty tools for body work from Eastwood. So I saw on line the 3000 pound rotisserie. So I called Reno store and they had one and I was able to go to the store with a trailer, they loaded in on and off I went. When I got home as I assembled the rotisserie I was impressed with the weight of the unit and the fact that this rotisserie for the cost had heavy duty hydraulic lifts to help in getting the tub adjusted for center of gravity. I made out of rectangular metal stock mounting brackets that I bolted up to the arms of the rotisserie. I can spin the tub with ease. The coasters are smooth operating as well. Another excellent product from Eastwood.
Date published: 2022-09-13
Rated 5 out of 5 by from Outstanding bargain. As usual, got my money's worth. Assembly was straightforward, did it by myself. Product much improved with respect to earlier reviews. Have no further suggestions to improve product.
Date published: 2022-03-02
Rated 5 out of 5 by from Would buy again, great value! Very good value for the price, one thing that could be improved is the handles , the plastic hand grips do not stay on and they drop out during rotation, everything else is good , easy to understand instructions, good packaging and quick shipping!
Date published: 2021-07-27
Rated 5 out of 5 by from Good build quality overall The Eastwood rotisserie is built solid. I’m using it for a frame off on a 65 chevelle. The only problem I have is the brackets that come with the rotisserie will not slide out far enough to mount to the front mounting holes on the body. I will have to add 2” to the square tubing on both ends to use the supplied mounting arms or ditch the mounting arms and fab some new ones. I expected to have to tweak the brackets a little bit to make them work and would buy this rotisserie again. The brackets did mount up to the rear body mounts.
Date published: 2020-04-20
  • y_2024, m_4, d_18, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.41
  • cp_1, bvpage1
  • co_hasreviews, tv_5, tr_13
  • loc_en_US, sid_32194, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.72ms
  • REVIEWS, PRODUCT

Questions & Answers

Will the base purchase work on a 1965 ford mustang fastback

Asked by: Gigem Garage
Yes. We do not offer any brackets for our rotisserie so these would have to be fabricated on your own.
Answered by: Wil Project Advisor
Date published: 2024-02-12

Cuál es el calibre o grosor del material?? De los tubulare

Asked by: Antonio
No espanol
Answered by: Anonymous
Date published: 2023-12-24

Is the overall length adjustable? If so how short can it be?

Asked by: JayP2
Specifications Max Weight Capacity Total Unit 3000lb (1630kg) Max Weight Capacity per End 1500lbs (680kg) Max Extended Capacity 18' (5.5m) Face to Face of "Tee" Beams Overall Spindle Height (center line of vehicle) 5' (1.5m) Overall Max Extended Length 22' (6.7m) Overall Max Extended Width 70' (1.78m) Minimum Mounting Bar Height 13.4" (340mm) Maximum Mounting Bar Height 49" (1260mm) Pin that connects the T-Beam and Spindle Assembly Q235 Carbon Steel - Diameter 0.78" (20mm)
Answered by: Anonymous
Date published: 2024-01-02

Would this rotisserie work for a 2005 Dodge Magnum and a 2006 Mini Cooper?

Asked by: MontyMoo2976
The Eastwood 3000 LB Capacity Rotisserie Features: Heavy Gauge Steel Components Six 4" Swivel and Locking Casters Total Weight Capacity 3000 Lbs Low-Friction Spindle Design Fine Tuning Height and Balance Adjustments Generous 18' Maximum Span Turn your restoration project into a stunning success with the help of this Eastwood Car Rotisserie. With its impressive 3000-lb. weight capacity and generous 18’ maximum span, it’s capable of lifting and spinning large vehicle components with ease. The heavy-gauge steel frame has six swivel and locking casters that allow you to turn the auto rotisserie smoothly across a flat surface in your garage or workspace. In addition, there are height and balance adjustments that can be fine-tuned to support any part of your rotisserie restoration project. The Eastwood 3000-lb. Capacity Rotisserie allows you to comfortably access any portion of a vehicle while you’re working on an off-frame restoration. You’ll be able to achieve professional results thanks to the easy maneuverability provided by this durable frame. And with an affordable price point, weekend enthusiasts are sure to save money in the long run by investing in their own rotisserie. Car restoration can be completed faster and more efficiently with this Eastwood rotisserie. Warranty 3 Year Specifications Max Weight Capacity Total Unit 3000lb (1630kg) Max Weight Capacity per End 1500lbs (680kg) Max Extended Capacity 18' (5.5m) Face to Face of "Tee" Beams Overall Spindle Height (center line of vehicle) 5' (1.5m) Overall Max Extended Length 22' (6.7m) Overall Max Extended Width 70' (1.78m) Minimum Mounting Bar Height 13.4" (340mm) Maximum Mounting Bar Height 49" (1260mm) Pin that connects the T-Beam and Spindle Assembly Q235 Carbon Steel - Diameter 0.78" (20mm)
Answered by: Anonymous
Date published: 2024-02-08

What size tubing are the mounting arms?

Asked by: Jmac
Specifications Max Weight Capacity Total Unit 3000lb (1630kg) Max Weight Capacity per End 1500lbs (680kg) Max Extended Capacity 18' (5.5m) Face to Face of "Tee" Beams Overall Spindle Height (center line of vehicle) 5' (1.5m) Overall Max Extended Length 22' (6.7m) Overall Max Extended Width 70' (1.78m) Minimum Mounting Bar Height 13.4" (340mm) Maximum Mounting Bar Height 49" (1260mm) Pin that connects the T-Beam and Spindle Assembly Q235 Carbon Steel - Diameter 0.78" (20mm)
Answered by: Anonymous
Date published: 2024-02-06

Thanks for answering my previous question. This time I’m wondering if there are brackets you sell that attach to  my front and rear bumper for a secure fit or what recommendations would you make for a secure fit

Asked by: Gstang
The Uni-Plate Mounting Brackets are designed to gain access to bumper or firewall areas on uni-body vehicles. Mounting Brackets connect to the mounting arms provided with the rotisserie. Uni-Plate Mounting Brackets to gain access to firewall and bumper mounts for Uni-body vehicles. 2" square X 6" collar with a 6" X 8" Flat Plate. Requires end user to drill bolt pattern to match. This comes in a bare steel finish. Does not fit the Eastwood 3000lb Rotisserie, item 32194.
Answered by: Anonymous
Date published: 2023-04-26

I’m working on a 67 coupe and wanted to know what rotating jig you recommend or if this would work.

Asked by: Gstang
This will work on you 67.
Answered by: Anonymous
Date published: 2023-04-24

What is the size and weight of box or crate it’s packaged in?

Asked by: Travis
Not exactly sure of box size Actual size is 48" wide X 261 Long Warranty 3 Year Shipping Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.
Answered by: Anonymous
Date published: 2023-11-26
