Item # 21111 BRAND: Eastwood

Bead Roller Drive System

Give your manual bead roller the option of power.
Give your manual bead roller the option of power.
Performance Tool Universal Engine Lift Plate is rated 4.8 out of 5 by 82.
  • y_2024, m_4, d_15, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.41
  • cp_1, bvpage1
  • co_hasreviews, tv_22, tr_60
  • loc_en_US, sid_21111, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 19.99ms
  • REVIEWS, PRODUCT
$472.99
Loading...
Out Of Stock. Due back May 19
Save for Later
Give your manual bead roller the option of power.

1 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More
The Eastwood Service Plan Protect your purchase with comprehensive coverage 24/7 support No deductibles, no additional fees Parts & labor costs included Transferable coverage and more

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
Bead Roller Drive System

Product Overview:

Description

A must-have setup to enable your bead roller to become an easy one-man operation without hand cranking. Perfect for custom sheet metal work, with electric power and foot pedal control.

Eastwood Bead Roller Drive System Features:

  • Powerful 1/6hp 120v reversible electric motor makes solo work easy
  • Foot Pedal and speed controller make it easy to keep a consistent speed while forming in a straight line or around bends
  • Infinitely variable speed control
  • Mates up to All Three Eastwood manual bead rollers and numerous other brands
  • 1 Year Warranty

One Man Operation

With the Eastwood Bead Roller Power Drive System, it no longer takes two people to fabricate a metal panel. The Drive System features a 3 Position Toggle Switch with an infinitely variable Speed Controller and Foot Switch. These features provide convenient one-person operate.

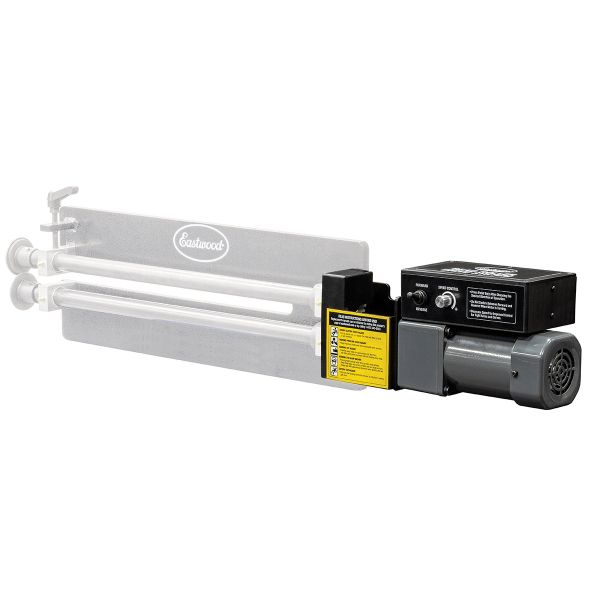

Eastwood Power Bead Roller Drive System
Eastwood Power Bead Roller Drive System

Powerful Drive System

The Eastwood Bead Roller Drive System features a powerful 1.65-amp motor with an integral 75:1 gear reduction that enables you to easily forms ½” beads in 18-gauge steel. Unlike other motors on the market, the Eastwood Drive System has a durable industrial style motor, which gives you more power then you need.

Fits All Current Eastwood Bead Rollers

Eastwood designed this power drive system to fit all Eastwood Bead Rollers and others with a plate steel frame and 50mm bearing block bolt pattern. Installation takes less than 30 minutes.

Eastwood Power Bead Roller Drive System
Eastwood Power Bead Roller Drive System

Universal Design To Fit Other Bead Rollers

The drive motor fits any hand crank bead roller with a standard shaft size, which is 25mm at the crank handle. The shaft is usually smaller where the dies attach (often 22mm).

The 1/6-horsepower electric motor and three-position toggle switch replaces the hand crank. Use the infinite Speed Control dial to set the exact rate for your forming project. It comes with a footswitch to operate the drive system, leaving both hands free to control sheets and parts.

The Eastwood Universal Bead Roller Drive turns what once were two-man projects into a solo operation. It can form bends and channels in up to 18-gauge steel just like if you were using the original hand crank while running off ordinary household current. Installation takes less than 30 minutes. If you want to switch back to manual operation, that’s easy,

Warranty

1 Year Warranty

Specifications

Motor 1/6 HP 1.65 Amp
Gear Reduction 75:1
Toggle Switch 3 Position
Infinite Speed Adjustment 0 – 20 RPM (11.8FPM)
Speed Control Knob Infinitely Variable
Foot Switch On/Off
Length 20.5"
Width 8.08"
Height 9.06"
Weight 18.5 lbs.
Mounting Specifications

Eastwood Power Bead Roller Drive System

In the Box

Contents

  • (1) 1/6 HP Electric Motor
  • (1) Speed Controller
  • (1) Foot Switch
  • (1) Mounting Bracket
  • Mounting Hardware

Bead Roller is not included

Guides & Accessories

Instructions

Safety Information

Wear work gloves and protective clothing. Sheet metal will often have sharp edges which can cause cuts to hands arms and face. Keep fingers and hands away from moving parts when operating.

Click here to see safety products

Accessories

Eastwood Elite Bead Roller Drive System 1/6Hp 120V Infinitely Variable Speed Control Toggle Switch Durable Motor

Application Tips

Perfect For Custom Sheet Metal Work, With Electric Power And Foot Pedal Control

Reviews

Rated 5 out of 5 by from Great addition for existing bead rollers! Fast delivery and fast, flawless installation. Really a well made addition for existing bead rollers. The added functionality is super.
Date published: 2024-02-16
Rated 5 out of 5 by from Eastwood bead roller drive I finally talked myself into this drive unit after getting tired of struggling with a hand crank. The unit works well but my roller used 14mm bolts so I had to fabricobble different spacers and source different bolts. I did the Jere Kirkpatrick inspired adjustable top shaft and the slots in the mounting plate were long enough to work without modification.
Date published: 2024-01-30
Rated 5 out of 5 by from add a bead roller drive and table to older 19"' manual crank bead roller ordered the bead roller drive system , to put on my older manual roller. I had to make my own mounting bracket, which was fairly simple process, and also added the roller table. this makes using the bead roller so much easier and faster than the manual crank setup. For the money spent I would never recommend the manual roller alone. ben there done that
Date published: 2024-01-29
Rated 5 out of 5 by from Best addition to my shop Best addition to my shop yet. Easy installation, easy to use no more hand cranking. Price was fair.
Date published: 2024-01-23
Rated 5 out of 5 by from Best drive system I have not installed my bead roller drive system yet. But only did the reviews tell me this was the best drive system. I’ve seen other people home build LARGE 30” throat bead rollers and choose this drive system for its quality, ease of install and operation. Hand cranking bead roller is a two person job and it’s hard to get exactly the start and stop you want. A drive motor is the ONLY option for working as a one man set up. Eastwood never disappoints.
Date published: 2024-01-21
Rated 5 out of 5 by from Love the Eastwood products Just got my bead roller motor to add to my bead roller. It works awesome!!! Keep up the great work Eastwood!!
Date published: 2024-01-13
Rated 5 out of 5 by from Great. I am somewhat of a DYIer and wholeheartedly a cheap a$$, I thought of does of ways to make this Everything from a 12v ATV wench to a CVT drill press. I love this thing, no more hand crank for me. The electrons do all the work for me. I have spent countless hours with the crank and loathed every second of it. All I have ever done up to the point was flanges and tank rolls, now I see bead-rolled as an art. The days of buying or dreaming about buying bead-rolled panels are gone… I just make them. Starting off with the bad: the motor does not make a healthy noise on startup and the pedal makes a nice audible click but all together feels cheap, I can see it can be easily replaced so I bought do that with a safety foot pedal. The good: is that the motor is torquey and it makes long bead-rolling sections easy and actually fun. After 2 hours the motor was not even warm. The great: I have done a lot of mods around my shop to take this 22mm coupler as input like my lathe bottom slide, a 4 jaw chuck to make welding turntable, and a height adjuster on my drill press.
Date published: 2024-01-09
Rated 5 out of 5 by from DREAMS CAN COME TRUE Have been wanting to add a drive and this was the shot I needed to get it done. I felt the price was right considering trying to build one from scratch. It takes a little patience to get it done with aligning, reinforcing a HF roller building a stand etc. BUT IT IS WORTH IT!
Date published: 2024-01-02
  • y_2024, m_4, d_15, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.41
  • cp_1, bvpage1
  • co_hasreviews, tv_22, tr_60
  • loc_en_US, sid_21111, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.31ms
  • REVIEWS, PRODUCT

Questions & Answers

Will this work on an older Woodward fab bead roller?

Asked by: Richard
We can not guarantee fitment with other brands but this power drive system should fit most brands with a plate steel frame and 50mm bearing block bolt pattern.
Answered by: Kelly H
Date published: 2023-11-27

What are the dimensions of the bead roller motorized unit, length, width and height

Asked by: Wendell
Specifications Motor 1/6 HP 1.65 Amp Gear Reduction 75:1 Toggle Switch 3 Position Infinite Speed Adjustment 0 – 20 RPM (11.8FPM) Speed Control Knob Infinitely Variable Foot Switch On/Off Length 20.5" Width 8.08" Height 9.06" Weight 18.5 lbs.
Answered by: Anonymous
Date published: 2023-03-24

Just received my second drive unit, the speed control does not work, no mater what it is set to it goes the same speed?

Asked by: Smac
Please reach out to customer solutions for warranty service help@eastwood.com or 800-343-9353.
Answered by: Nick BC
Date published: 2023-01-03

What is the torque spec. on this motor?

Asked by: CJw08
There is no torque spec, but the motor is rated at 120W and is more than capable of driving all our bead rollers at their respective material capacity ratings.
Answered by: Nick BC
Date published: 2024-02-28

Is this item UL listed?

Asked by: J River
The entire unit is not UL listed, but some components such as the direction switch, foot switch, and power cord are.
Answered by: Nick BC
Date published: 2023-08-29

Can this be mounted vertically

Asked by: MoMo
The motor system cannot be mounted vertical with respect to the bead roller, it must be inline as shown in the images, but I see no reason the entire bead roller and motor assembly could not be oriented vertically.
Answered by: Nick BC
Date published: 2022-05-27

If i have a bead roller rated at 16g mild steel and needed a replacement drive, would this unit supply the power needed for my machine to retain its 16g capabilities?

Asked by: Roadhouse1
Can the Eastwood Elite bead roller power drive system operate in a vertical position?
Answered by: MoMo
Date published: 2022-05-24

How much torque does this motor put out?

Asked by: Cjw9475
The max allowable torque of this motor is 40 N*M, 29.5 Ft Lbs. It is a 120 Watt motor with a 75:1 gear reduction.
Answered by: Kelly H
Date published: 2024-02-28
