Item # 23021 BRAND: Eastwood

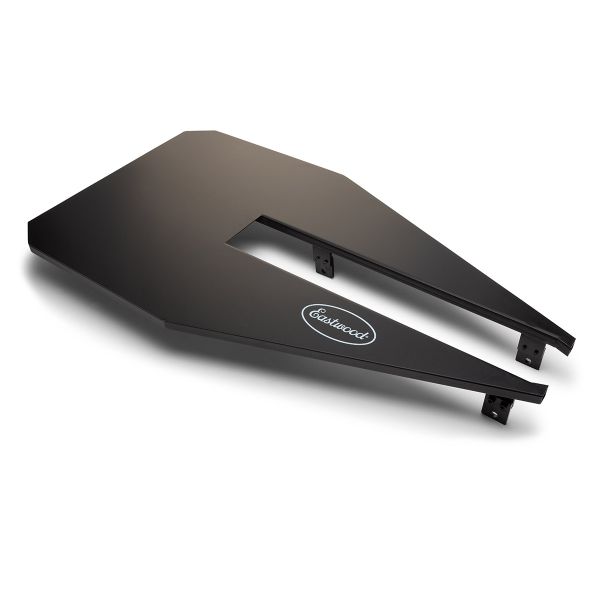

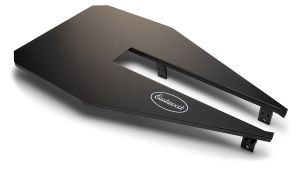

Eastwood Bead Roller Table

Large Bead Roller Table provides support for those long panels and increases precision for small projects.
Large Bead Roller Table provides support for those long panels and increases precision for small projects.
Eastwood Bead Roller Table is rated 4.1 out of 5 by 18.
  • y_2023, m_9, d_30, h_4
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_5, tr_13
  • loc_en_US, sid_23021, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 19.47ms
  • REVIEWS, PRODUCT
$159.99
Loading...
Loading...
Save for Later
Large Bead Roller Table provides support for those long panels and increases precision for small projects.

1 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Eastwood Bead Roller Table

Product Overview:

Description

Eastwood Bead Roller Table

Supports long panels and increases precision on smaller projects.

  • Fits standard plate-style bead rollers that are 1/2" thick, including Eastwood 19" item 32044 and other brands.
  • Heavy Duty tube frame construction with thick 18-gauge steel table surface.
  • Adjustable mounting tabs for easy height adjustment. Perfect for working with different die sizes.
  • Tool free quick release pin facilitates quick die changes.
  • Template and mounting instructions included.
  • 1 Year Warranty
  • Dimensions: Length - 36.25"; Width Widest - 19.5"; Width Narrowest - 5"

Increase precision when forming small to very large projects. It's a great third and fourth hand when forming large panels that could flex.

Please note this does not fit the 24" or 36 Motorized Bead Roller.

Warranty

1 Year

Specifications

  • Heavy duty tube frame construction with thick 18-gauge steel table surface
  • Adjustable mounting tabs allow for height adjustment. Perfect for adjusting different die sizes.
  • Tool free quick release pin facilitates quick die changes
  • Fits 19” Plate Bead Roller (item 32044) as well as other standard plate style bead rollers
  • Drilling required. Unit includes Drilling Template

FAQs

Will my Bead roller work with this Table? This Table is designed for Plate style Bead rollers that are 1/2" thick.

Shipping & Handling

N/A

In the Box

Contents

  • (1)Bead Roller Table
  • Mounting Bracket, 6mm x 37.5mm x 47.5mm (Installed)
  • (4) M6x1.00x16 Socket Head Cap Screws (Installed)
  • (8) Pin, 10mm x 41mm x 178mm
  • (1) Spacer, 19mm O.D. x 10.20mm I.D. x 78.5mm
  • (1) Spacer, 19mm O.D. x 10.20mm I.D. x 26.3mm
  • (1) M10x1.5x150 Bolt
  • (1) M10x1.5 Nut
  • (1) M10 Washer
  • (1) Drilling Template
  • (1) Eastwood Instruction Manual

Guides & Accessories

Instructions

Safety Information

Bead Rollers have rotating rollers and gears with amplified leverage which can quickly cause severe injury.

Keep fingers and hands away from moving parts when operating.

Wear proper work glove and protective clothing and eye wear.

Aerosol Details

Application Tips

Spare Parts

• Heavy Duty tube frame construction with thick 18-gauge steel table surface • Adjustable mounting tabs allow for height adjustment. Perfect for adjusting for different die sizes. • Tool free quick release pin facilitates quick die changes • Fits 19” Plate Bead Roller EW32044 as well as other plate style bead rollers • Drilling required, Includes Drilling Template

Reviews

Rated 5 out of 5 by from Great deal Always quality tools. This thing is beast and it's so nice and will make my work alot easier.
Date published: 2022-12-17
Rated 5 out of 5 by from install table for bead roller this is a quality stand and easy to install or remove.
Date published: 2022-11-19
Rated 5 out of 5 by from New roller bead table Very stable. I also have the stand features a suitable work area
Date published: 2022-04-25
Rated 5 out of 5 by from Very well built. Purchased the Bead Roller (#32044), the Bead Roller Fence (#20552), and the Bead Roller Table (#23021). Discovered that they can't be used all at once; i.e., I wanted to use the table for larger pieces while using the fence for more precise edges on said larger pieces. No can do. No sweat, just looking for more versatility.
Date published: 2022-02-14
Rated 5 out of 5 by from Good table Good build, good quality, check for warpage when opening up.. Fedex is a little rough on things over 10 pounds during shipping..
Date published: 2021-10-04
Rated 5 out of 5 by from Perfect match This appears to be a quality tool with many uses. I have four street rods and there is always SOMETHING this bead roller can help with
Date published: 2021-07-06
Rated 5 out of 5 by from Great improvement I bought this a week ago for my 19 ”bead roller but it is not compatible with the electric motor that fits it.
Date published: 2021-03-20
Rated 4 out of 5 by from Big help Had to make some modifications because of the power motor. After, all said and done; is a big help in managing the work piece.
Date published: 2021-11-02
  • y_2023, m_9, d_30, h_4
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_5, tr_13
  • loc_en_US, sid_23021, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.72ms
  • REVIEWS, PRODUCT

Questions & Answers

Hi will the fence work with this Table?

Asked by: Geo60
No the Bead roller table will not work with the fence installed
Answered by: ZachC
Date published: 2022-05-12

Are we suppose to cut the bead rolling table to get it to fit with the bead rolling motor?

Asked by: John
This fits without cutting the bead rolling table.
Answered by: SeanW
Date published: 2021-07-11

I have the 27" elite bead roller. Will the table and the stand mount to it.

Asked by: Troy Allshouse
Unfortunately, it will not work on the 27" Bead Roller. It is designed for the 32044 19" Bead Roller and other bead Rollers with the same dimensions.
Answered by: Kelly H
Date published: 2021-11-15

Hi, Will this bead roller table fit a Woodward fab bead roller pn# WFBR6?

Asked by: Rick
Unfortunately, we do not have the ability to guarantee fitment or compatibility with products we do not sell.
Answered by: Kelly H
Date published: 2021-04-02

Will this item fit the old Eastwood Bead Roller item 28187?

Asked by: Dale I
yes it will fit #28187
Answered by: vince
Date published: 2021-03-13

Does this work with the bead roller fence?

Asked by: Gordy
No the Bead roller table will not work with the fence installed
Answered by: vince
Date published: 2021-09-14

Will this fit your 24" Motorized Bead Roller?

Asked by: MIke
This Bead Roller Table is designed specifically for the Eastwood 19" Bead Roller(32044) and will not work on the 24" . Keep an eye on our web site www.eastwood.com for future developments with regards to additional Bead roller tables.
Answered by: vince
Date published: 2022-03-29
  • y_2023, m_9, d_30, h_4CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_7
  • loc_en_US, sid_23021, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 19.56ms
  • QUESTIONS, PRODUCT
Eastwood Bead Roller Table
$159.99
In Stock
