Item # 32049 BRAND: Eastwood

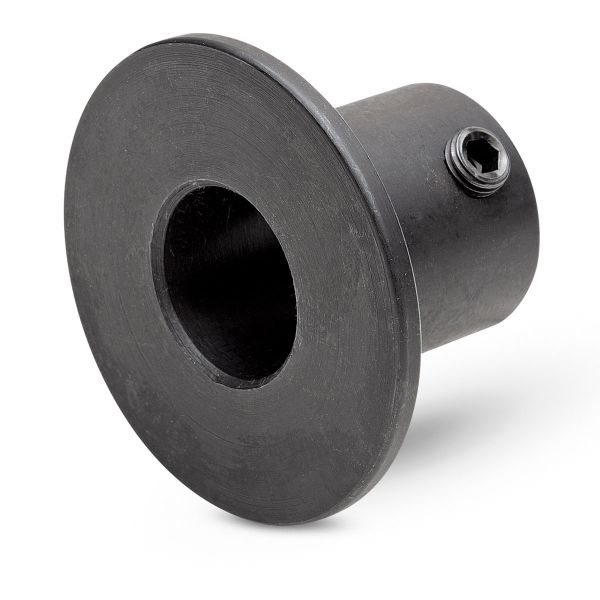

Eastwood Bead Roller Tipping Die

In stock
SKU
32049
$26.99
Loading...
Save for Later
Partner this Tipping die with the 20268 Polyurethane die and produce bends up to 90 degrees
  • Warranty Included
  • 90 Day Returns + 100% Satisfaction Guarantee
  • FREE Lifetime Tech Support

QUESTIONS? Talk to an Expert:
Phone Icon  800-343-9353   |     Chat   |     Email Us

QUESTIONS? Talk to an Expert:  Phone Icon  800-343-9353   |     Chat   |     Email Us

Description

Partner this Tipping die with the 20268 Polyurethane dies and produce bends up to 90 degrees. This die has endless uses.

This die fits 22mm shaft bead rollers. Including the 8" HD bead roller, Eastwood 18" Bead Rollers and 27" Eastwood Elite Bead Roller

Eastwood Bead Roller Tipping Die

Click here for the Polyurethane Lower Bead Roller Forming Die

What's Included
(1) Eastwood Bead Roller Tipping Die
Safety Information
Keep fingers and hands away from moving parts when operating.
Wear proper work glove and protective clothing and eye wear.

Click here to see safety products
Accessories
Eastwood Bead Roller Tipping Die 22mm ID Form Bend Tool Floor Panel Ribs
application_ax
Fits Eastwood 18"" Bead Rollers And 27"" Eastwood Elite Bead Roller
Rated 5 out of 5 by from Bead roller tipping die and polyurethane rollers I live in Canada and I purchased the tipping die as a trial to see how it was dealing with Eastwood across the border I was impress with both the quick shipping and the quality of the product
Date published: 2020-03-07
Rated 2 out of 5 by from Tipping die not as advertised Before ordering this die I called and spoke with a specialist. I was informed this die had radius to form a “soft” corner. When the die arrived it square shoulders, I ended up chucking it up in my lathe and putting a radius on both edges. After modification the results were what I wanted.
Date published: 2025-04-13
  • y_2026, m_4, d_13, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.43
  • cp_1, bvpage1
  • co_hasreviews, tv_3, tr_2
  • loc_en_US, sid_32049, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 3.1ms
  • REVIEWS, PRODUCT

Will the 20268 polyurethane lower bead roller and the 32049 tipping die fit the 8 inch bead roller?

Asked by: bob the beast
Yes, both will work with your bead roller with a 22mm shaft.
Answered by: Kelly H
Date published: 2022-05-04

How thick is the die at the point where it contacts the work piece?

Asked by: Kertz
That is a .149" area
Answered by: SeanW
Date published: 2022-06-25

Will this fit on a Bailiegh Bead roller with 7/8" shaft?

Asked by: Frip
This die is designed to fit a 22mm shaft.
Answered by: ZachC
Date published: 2019-12-18

Will these dies fit the harbor freight bead roller?

Asked by: 440Abody
These dies have a 22mm. hole size, if the harbor freight bead roller has the 22 mm size then your good to go.
Answered by: Bob G
Date published: 2021-04-26

Are these tipping does compatible with a summit brand bead roller?

Asked by: Xlford
These tipping dies have a 22 mm ID.
Answered by: Bob G
Date published: 2019-12-18

When do you think you will have tipping dies for the motorized roller

Asked by: Minterfab
Unfortunately at this point in time we do not have a set date for a release of a tipping die for this unit.
Answered by: SeanW
Date published: 2018-08-08

Is there a tipping die like this for the Motorized bead roller?

Asked by: Harryjay
Unfortunately at this time we do not yet have tipping dies for the motorized bead roller.
Answered by: Scott C
Date published: 2018-07-05
