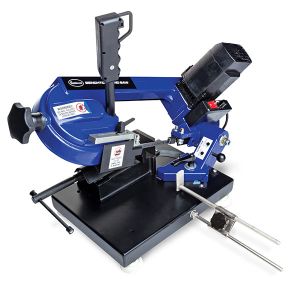

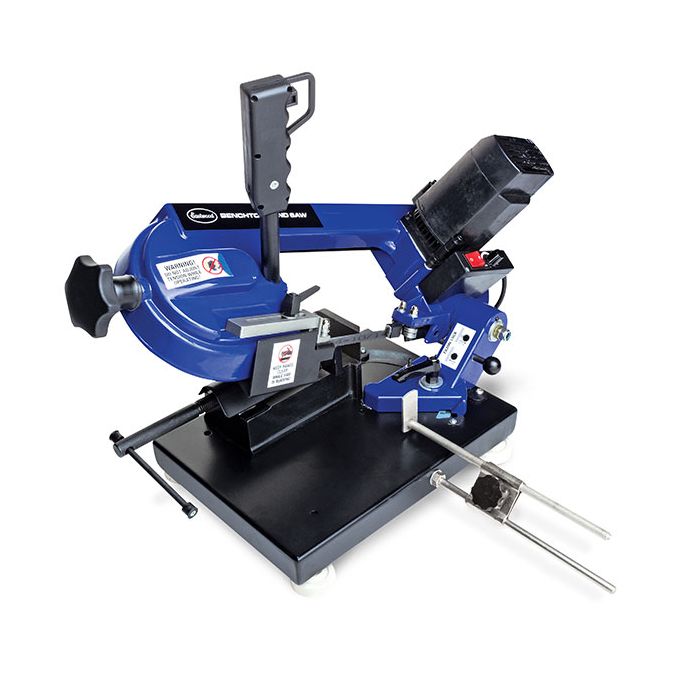

Eastwood Benchtop Metal Cutting Bandsaw
Eastwood Benchtop Metal Cutting Bandsaw
Item #20237 Brand: Eastwood
Details
This Eastwood Benchtop Band Saw is a must for cutting tubing easily and accurately when fabricating.
The Eastwood Benchtop Metal Cutting Bandsaw Features:
- Fast, accurate cuts in a variety of materials
- Powerful, variable speed 1000 watt motor
- Pistol grip handle and speed control trigger
- Make perfect miter cuts from 90° to 45°
- Thin, exact cuts with a narrow kerf
- Built-in clamp for material up to 3.25in thick
- Stop bar for repeatedly cutting the same size
It is possible to use a cut-off wheel, angle grinder, reciprocating saw, or even a hacksaw to cut tubing when fabricating. But each of those methods are sloppy, inaccurate, slow, or all three. This bench top electric band saw makes perfectly clean, exact cuts in various materials up to 3 1/4 inch wide. The angle of the cut can be adjusted accurately from 90° to 45° with a built in pivot clamp and markings on the table. A stop bar and material clamp also makes it easy to set up and make multiple cuts of exactly the same length. The thin nature of a band saw blade means a narrower kerf compared to a cut off wheel or circular saw, so positioning the cut in the material for the exact right length is easier. The fact that a band saw moves in just one direction, unlike a hacksaw or Saw-zall, means less chance of the cut position changing as you work through the material. Its compact bench top design makes it easy to store on a shelf or under a work bench when not in use. With a 1000 watt motor and variable speed piston grip it’s easy to cut through nearly steel or aluminum, even solid blocks.
Contents
1000 watt motor with 3.25 inch throat bandsaw. A 52" long, 1/2" wide blade(20238) with 12-14 teeth per inch is installed in saw. Stop bar.
Specifications
• Motor Power: 1000 Watts
• Motor Voltage: 120 V AC
• Throat Capacity: 3.25" (85mm)
• Width Capacity: 4.5" (115mm )
• Blade Speed: 100 – 260 ft/min (30 – 80 m/min)
• Capacity:
– Circular (90°) – 3.3" (85mm)
– Rectangular (90°) – 3.3 x 4.1" (85 x 105mm)
– Circular (45°) – 2.7” (70mm)
– Rectangular (45°) – 2.5 x 2.9" (65 x 75mm)
It saves space by being able to store the saw on a shelf or under your work bench when not using it. Pistol grip trigger for easy use. Variable speed for better control when cutting different sizes and shapes of material. Easy adjustable material clamp along with a stop bar for repeating same length cuts. Pivot clamp allows for miter cuts from 90 to 45 degrees.
Instructions
Click here for product instructions
Safety
Always wear ANSI rated safety glasses and gloves while using. Stop tool and disconnect from power source before changing blade.
Warranty
1 year warranty against manufacturer defects.
Accessories
Eastwood Offers Free Lifetime Technical Support
Click here for product SDS information
Attention California Residents - Proposition 65
WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
