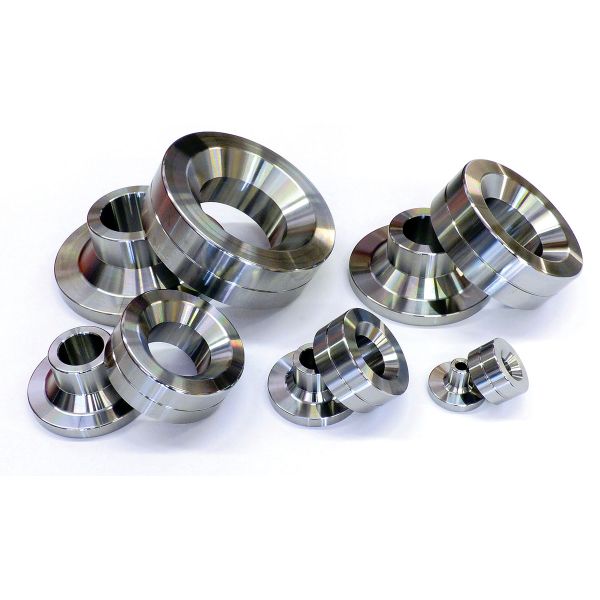

Eastwood Sheet Metal Hole Punch and Flare Dimple Die Set
Create flares in sheet metal up to 1/8" thick
Create flares in sheet metal up to 1/8" thick
Eastwood Sheet Metal Hole Punch and Flare Dimple Die Set is rated
out of
5 by
11.
Create flares in sheet metal up to 1/8" thick
None Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Product Overview:
Description
Create flares in sheet metal up to 1/8" thick using the Eastwood Dimple Dies.
- Includes both Male and Female Dies
- Form clean 45° flares in up to 1/8” thick steel
- Made with high-strength Chrome Moly steel
- Machined to close tolerances
Simply drill the recommended hole size in the metal that you desire to dimple, then use a press to do the work. Made from heat treated Chrome Moly steel, these dies are built to last.
Specifications
Hole and Flare Size
| 1/2" Die - Requires 1/2" hole | Flare Width 0.7" |
| 1" Die - Requires 1" hole | Flare Width 1.4" |
| 1-1/2" Die - Requires 1-1/2" hole | Flare Width 2.15" |
| 2" Die - Requires 2" hole | Flare Width 2.85" |
| 2-1/2" Die - Requires 2-1/2" hole | Flare Width 3.5" |
Metal Flaring Capacity
| Mild Steel | 1/8” |
| Aluminum | 1/8” |
| Stainless Steel | 3/32” |
Tools Required (not included)
- A set of sharp, high-quality metal saws in sizes corresponding to those in the Die Set.
- A 20 Ton Hydraulic Shop Press or equivalent.
In the Box
Contents
- (1) Set of 1/2” Dies
- (1) Set of 1” Dies
- (1) Set of 1-1/2” Dies
- (1) Set of 2” Dies
- (1) Set of 2-1/2” Dies
Guides & Accessories
Instructions
Click here to download product instructions PDF
Safety Information
Always follow all manufactures safety procedures with the use of this type of equipment. Always read and fully understand the instruction manual before operating this type of equipment.
Accessories
Application Tips
Includes Both Male And Female Dies
Reviews
Rated 5 out of
5
by
Kevin65 from
Good quality
I bought these to make a new set of anti skid steps for a piece of equipment I have. They preformed great just keep them well lubricated to prevent ware.
Date published: 2018-01-14
