Item # 31639 BRAND: Eastwood

Eastwood Electronic Tire and Wheel Balancer

Eastwood Electronic Wheel Balancer
Eastwood Electronic Wheel Balancer
Eastwood Electronic Tire and Wheel Balancer is rated 2.0 out of 5 by 1.
  • y_2021, m_9, d_16, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_31639, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 128.88ms
  • REVIEWS, PRODUCT
$1,399.99
Loading...
Loading...
Save for Later
Eastwood Electronic Wheel Balancer
  • 90-Day Returns
  • Technical Support
  • 1 year Warranty
Eastwood Electronic Tire and Wheel Balancer

Description

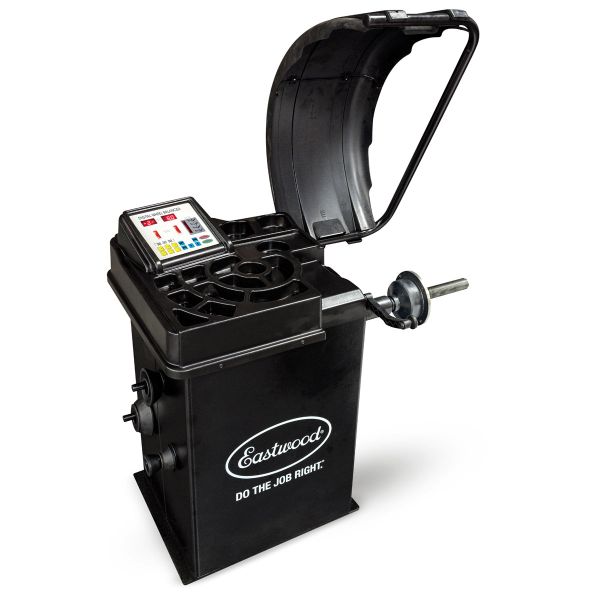

The Eastwood Electronic Wheel Balancer brings the convenience and economy of a professional, high precision tire and wheel Balancer to the well-equipped DIY or race shop. Allows quick balancing and guidance for applying clip-on or stick-on weights to a variety of wheel types, sizes and materials.

Specifications

Rim Diameter Range: 10” to 24”
Rim Width Range: 1.5” to 20”
Maximum Tire Diameter : 34” [864mm]
Maximum Tire Weight : 143lbs [65kg]
Rotating Speed: 200 RPM
Measurement Cycle Time: 8 Seconds
Maximum Out of Balance Range: 0.25 to 35 Oz. [1 to 999 Grams]
Power Requirements: 120 VAC, 60hz.

Warranty

2 Year Warranty

Contents

(2) Guard Halves
(1) Tubular Steel Guard Frame
(4) M6 x 25 Bolts
(4) M6 Nuts
(2) Phillips Head Screws
(1) M10 x 45mm Bolt
(1) M10 Nut
(1) Main Drive Spindle
(1) M10 x 125 Socket Head Cap Screw
(1) 3 piece Tool Kit: 8mm & 5mm Hex Keys and a 10mm Flat Wrench
(3) Accessory Storage Posts
(3) Accessory Storage Post Protective Rings
(4) Spindle Hub Cones; 2”, 2.5” 3” & 4”
(1) Quick-Release Hub Wing Lock
(1) Balance Weight Pliers
(1) 100 gram Red Calibration Weight
(1) Wheel Width/Diameter Caliper
(1) Main Balancer Unit

Shipping

There is a Flat Rate Shipping Charge of $172.70

Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.

Accessories

Eastwood Electronic Wheel Balancer Automatic Machine Tire Repair Tool

Application Tips

Allows Quick Balancing And Guidance For Applying Clip-On Or Stick-On Weights To A Variety Of Wheel Types, Sizes And Materials.

Safety Information

Always read and fully understand the instruction manual before operating this unit. Always wear proper personal safety equipment while operating this unit.

Click here to see safety products

Customer Reviews

Rated 2 out of 5 by from Not so great with larger steel wheels. Selecting the different balance procedures is a hassle. Why isn't there a dedicated button for that? What you end up doing is pressing two buttons at once but they never read as a single input. The instructions are not very helpful. The instructional video that was made for the machine is too short and vague to be of any help. I for the life of me can not get this machine to properly center a steel wheel. I've fought with these wheels for more than an hour and can't get the wheel to track straight. I'm just going to have to take my truck to a different tire shop and pay them to balance my tires.
Date published: 2021-05-13
  • y_2021, m_9, d_16, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.19
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_31639, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 47.66ms
  • REVIEWS, PRODUCT

Questions & Answers

Do you have a larger cup for holding 8 hole wheels on. The large cone fits the wheel but the cup does not. That does not impress me since the specs do not mention this inability to do some very common wheels.

Asked by: Anonymous
The 4" cone works for the larger diameter 8 lug wheels, but the cap that screws on to hold the wheel to the cone needs to be bigger. Hunter used to have a cover that went on that would be big enough to hold the center of the wheel to the cone. If anyone comes up with something, please post is so we all can benefit.
Answered by: PhilPot
Date published: 2021-06-19

Do you offer any training for this wheel balancer?

Asked by: Micheladas
Unfortunately at this time Eastwood does not offer a training class for the Electronic Wheel Balancer (31639). This unit does come with a comprehensive instruction manual that will provide the necessary information to set up the unit and start balancing wheel/tires.
Answered by: vince
Date published: 2021-01-21

is there an adapter kit available for motorcycle wheels?

Asked by: Ed r
We do not currently have an adaptor for motorcycle wheels.
Answered by: ZachC
Date published: 2021-07-10

whta is the weight of this balancer ......

Asked by: nick
This weighs 225lbs.
Answered by: SeanW
Date published: 2020-04-12

Can this be used electric only for balancing ?

Asked by: Automedic
Yes, this unit is electric only.
Answered by: Kelly H
Date published: 2020-01-17

Can this machine do dually wheels

Asked by: Av auto
This unit can not do dually wheels.
Answered by: Kelly H
Date published: 2019-12-02

Can you balance truck tires?

Asked by: Big de
This machine can balance a tire as long as they are under these specifications. Rim Diameter Range: 10” to 24” Rim Width Range: 1.5” to 20” Maximum Tire Diameter: 34” [864mm] Maximum Tire Weight: 143lbs [65kg]
Answered by: SeanW
Date published: 2021-05-12

Can these machine do static and dynamic balance

Asked by: Av auto
This wheel balancer does both static and dynamic balancing.
Answered by: Kelly H
Date published: 2021-05-12
