Item # 32500 BRAND: Eastwood Elite

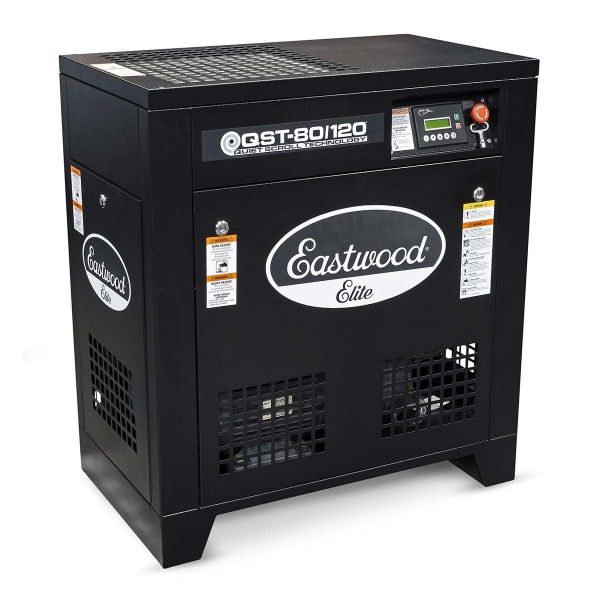

Eastwood Elite QST® 80/120 Scroll Air Compressor

Own Your Own Business? Meet Your New Silent Partner!!!
Own Your Own Business? Meet Your New Silent Partner!!!
Eastwood Elite QST® 80/120 Scroll Air Compressor is rated 4.0 out of 5 by 3.
  • y_2023, m_9, d_30, h_4
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_32500, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 41.18ms
  • REVIEWS, PRODUCT
$5,129.99
Loading...
Loading...
Save for Later
Own Your Own Business? Meet Your New Silent Partner!!!

3 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Eastwood Elite QST® 80/120 Scroll Air Compressor

Product Overview:

Description

Eastwood ELITE QST® 80/120 Scroll Compressor

Own your own business?? Meet your new silent partner.

  • Innovative - Direct Drive Cast Iron Scroll Pump
  • Integrated Air Cooler - Multi-stage oil filtration system
  • Low Noise Level - Quiet Scroll Technology and only emits 62DB +/- 3Bd
  • Powerful - 11 HP Motor delivers 31.8 SCFM @ 90 PSI Air Output
  • Dependability - 100,000 hour pump life, with 100% Duty cycle
  • 3-year warranty

This compressor must be used with a minimum of a 60 gallon air tank. We suggest pairing it with our 32501 Eastwood 80 Gallon Receiver Tank to make a powerful combination to keep your business humming.


"The shop is quiet and it fills so fast." - Mike Phillips - Phillips Hot Rod & Custom


Delivers More Power for less the cost of other air compressors

Our Elite 80/120 Scroll Compressor is ideal for the professional automotive repair and body shops . With its dependable, long-lasting construction and affordable price compared to other big brands, our R&D guys have crafted the ideal compressed air source. Read more about the advantages of scroll compressors below or call our experts. We back them with a three-year warranty and 60-day money-back guarantee so you can Do the Job Right.

Eastwood Elite 80/120 Scroll Compressor

Eastwood Elite 80/120 Scroll Compressor

Quiet Technology

  • As low as 62DB +/- 3Bd* at 1 meter - No louder than a typical conversation!
  • Comparable in noise to your home A/C unit
  • Quieter than your air tools

*Using standard sound level testing conditions. Results may vary based on compressor location and environment.

Eastwood Elite 80/120 Scroll Compressor

Professional-level automotive shops will get the compressed air they need from a unit made to Do the Job Right. The QST-80/120 is our most powerful yet quietest shop compressor yet. The innovative scroll technology performs like a 120-gallon compressor at a noise level of approximately 62 decibels, which is equivalent to a normal conversation or common household appliances such as air conditioners and dishwashers. You’ll no longer need to shout or use earplugs every time you fire up the compressor — just connect your tools and get to work.

With nearly 32 CFM of air output at 90 PSI, the Eastwood QST Industrial Air Compressor can run several tools at once without a drop of sweat. It has an advanced air cooling and oil filtration system to maximize quality. This is one of the most dependable shop compressors ever, too. You never have to give it a break mid-project, and the pump life averages 100,000 hours. Note an external air tank is required — we recommend our 80-Gallon Auxiliary Compressor Tank. Visit the Eastwood Garage to learn more about the advantages of quiet scroll air comp

Warranty

3 Years

Specifications

The Eastwood Elite QST® 80/120 Scroll Compressor is capable of a monstrous 31.8 SCFM output which means there is plenty of air to go around for the entire shop. With a 100% duty cycle and high output SCFM, this scroll compressor will handle everything that you throw at it and more. This compressor was developed with Quiet Scroll Technology and only emits 62DB +/- 3Bd. (Tested using standard sound level testing conditions. Results may vary based on on compressor location and environment.)

Power Requirement: 208-240V, 60Hz, 29.8-amp, 3 phase
Motor Horsepower: 11 HP
Motor RPM: 3516
Sound Reading @ 10 ft. [1m] 62 +/- 3 db.*
Air Output: 31.8 SCFM @ 90 PSI [900 l/min. @ 6.2 bar]
Requires External Air Tank: Yes
Cut-in Pressure: 115 PSI [8 bar]
Cut-out Pressure: 145 PSI [10 bar]
Maximum Pressure: 145 PSI [10 bar]
Pressure Relief Valve Setting: 160 PSI [11 bar]
Oil Capacity: 74 oz. [2.2 liter]
Dimensions: 33" (840mm) long x 19-3/4" (500) wide x 36-5/8" (930mm) high
Weight: 452 lbs. (205kg)
Eastwood Elite 80/120 Scroll Compressor

SCROLL TECHNOLOGY

Eastwood Elite 80/120 Scroll Compressor



HOW DO SCROLL COMPRESSORS WORK?
Read more at Air Compressors

WHY ARE SCROLL COMPRESSORS MORE EFFICIENT?
Read more at Air Compressors

Shipping & Handling

Ships via Truck Freight, Flat Ship 249.99

In the Box

Contents

(1) QST® 80/120 Scroll Compressor
(1) 3/4” x 3-3/8” Pipe Nipple
(1) Side Panel Key
(1) Eastwood Instruction Manual

Guides & Accessories

Instructions

Click here for product instructions.

Please read and fully understand the instruction manual for this unit before operating. This unit will only work on 3 Phase Power.

Safety Information

Please read and fully understand the instruction manual for this unit before operating. This unit will only work on 3 Phase Power

Consumables

31715, 32508, 32509

Spare Parts

Reviews

Rated 5 out of 5 by from air compressor review awesome compressor super quite and builds air really fast could not be happier
Date published: 2022-11-14
Rated 5 out of 5 by from VERY Quiet! Easy installation We have had this compressor for over 6 months now. It has been a fantastic upgrade. We have installed it in a 2,500 sq ft section of the warehouse (open), so sound really travels. The compressor is barely noticeable when it is running. We highly recommend it!
Date published: 2021-03-22
Rated 2 out of 5 by from Great compressor poor customer support I purchased one of the first 80/120 compressors with an air tank,about 8 months ago. It runs two paint booths and 3 shops just fine. The only issue I’ve had is the oil end of life alarm which has been alarming for over a month now …after numerous calls to tech support ,the alarm is still going off constantly and myself or my tenet has called numerous times to get it resolved. So in all we’ve spent at least 8 hrs of phone time and actual troubleshooting time and still have an alarm. For what I spent,I could have purchased two two stage compressors and been much happier.
Date published: 2021-06-16
  • y_2023, m_9, d_30, h_4
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_32500, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 3.52ms
  • REVIEWS, PRODUCT

Questions & Answers

Does the 80/120 compressor have and auto shutoff that can be turned on? Want to run CNC machine into the night but want the air compressor to shut off at a certain time after machining is done

Asked by: NPT 72
Yes
Answered by: GeneB
Date published: 2023-09-20

Does this use the same compressor as the 30/60? Is just the motor different between the two???

Asked by: Jwarns
Eastwood ELITE QST® 80/120 Scroll Compressor Own your own business?? Meet your new silent partner. Innovative - Direct Drive Cast Iron Scroll Pump Integrated Air Cooler - Multi-stage oil filtration system Low Noise Level - Quiet Scroll Technology and only emits 62DB +/- 3Bd Powerful - 11 HP Motor delivers 31.8 SCFM @ 90 PSI Air Output Dependability - 100,000 hour pump life, with 100% Duty cycle 3-year warranty Eastwood QST® 30/60 Air Compressor Features: Innovative - Direct Drive Cast Iron Scroll Pump Integrated Air Cooler - Multi-stage oil filtration system Low Noise Level - As low as 63dBs* Compact Size - Performance of a 60 gallon in the size of a 30 gallon Powerful - 12.7 cfm @ 90 psi Dependability - 100,000 hour pump life, 4 HP continuous duty motor, All steel pressure hard lines and hydraulic style flex lines 3-Year Warranty - Guaranteed confidence Improved Pressure Switch - This compressor includes an improved pressure switch that provides longer service in a wider variety of conditions. Includes Moisture Drain Kit - Improved performance and easy to service
Answered by: GeneB
Date published: 2023-08-24

How many CFM is output at max PSI?

Asked by: Hotdog
Because this is a scroll compressor, it outputs the same SCFM of 31.8 at all pressures (including the max of 145psi).
Answered by: Nick BC
Date published: 2022-11-30

Eastwood recommends an 80 gallon tank, but is there a reason I can't use the 60 gallon tank I already have? My air requirement is 20.5 cfm at 100 psi.

Asked by: Joel
This would work fine. The only down side is result is the unit cycling on/off more often since you have a lesser capacity.
Answered by: Nick BC
Date published: 2022-08-01

Would I need a dryer for this unit? If so will there be one available soon?

Asked by: Dan K
We offer many different air drying systems on our website.
Answered by: Nick BC
Date published: 2022-06-01

Curious like question asked 2 days ago. Does this unit condense water like regular 2 stage compressor would? Would you still need separator, air dryer, and refrigerate system for clean dry air? Thank you.

Asked by: Kalev
Yes, you would still need a air drying system.
Answered by: Nick BC
Date published: 2022-06-01

What size phase converter is needed?

Asked by: Scrambler
We recommended the unit be used on power company supplied 3 phase 208-240VAC. However, if a phase convertor must be used, we recommend: Pro-Line Rotary Phase Converter model PL-40. If another brand is used it must control output 3-phase voltage to within 5%, if not the compressor motor will go into a phase unbalance and shut down until voltage is regulated between each phase to within the maximum 5%.
Answered by: Mark R
Date published: 2022-07-23

Will this be offered 240 bolt single phase?

Asked by: Rucky
We do not have this option available in single phase, only 3 phase options. We do not have any plans to bring out a single phase option at this time.
Answered by: SeanW
Date published: 2021-06-08
