Item # 20569 BRAND: Eastwood Elite

Eastwood 200 Amp Elite MP200i Multi Process Welder MIG - TIG - Stick

A great 200 amp multi-process welder for metal fabrication and auto restoration
A great 200 amp multi-process welder for metal fabrication and auto restoration
FBN-2 FabNut 3/8 Inch-16 Round T-Nut 6 Pack is rated 4.7 out of 5 by 82.
  • y_2024, m_4, d_12, h_6
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.41
  • cp_1, bvpage1
  • co_hasreviews, tv_23, tr_59
  • loc_en_US, sid_20569, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 46.43ms
  • REVIEWS, PRODUCT
Reg. $944.99 Sale $774.97 Save $170.02
Loading...
Loading...
Save for Later
A great 200 amp multi-process welder for metal fabrication and auto restoration

3 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More
The Eastwood Service Plan Protect your purchase with comprehensive coverage 24/7 support No deductibles, no additional fees Parts & labor costs included Transferable coverage and more

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support

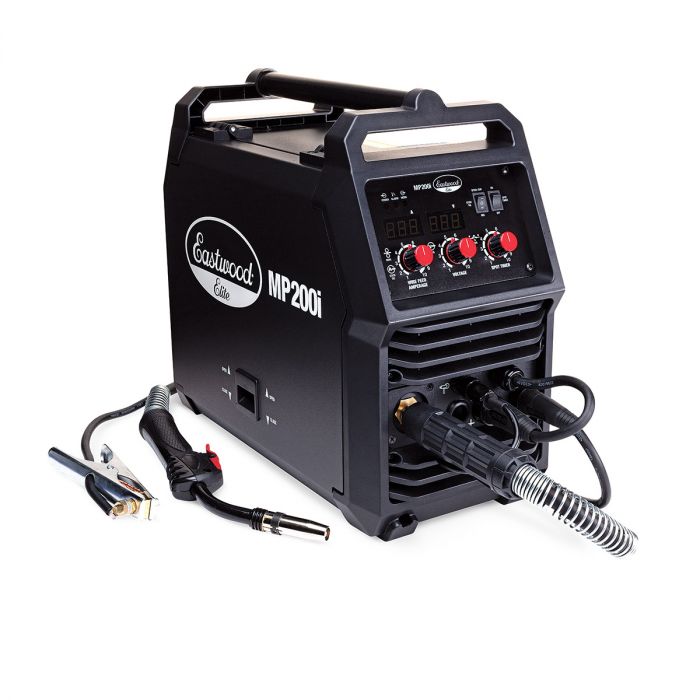

Eastwood 200 Amp Elite MP200i Multi Process Welder MIG - TIG - Stick

Product Overview:

Description

Everyone who owns an MP200i Eastwood welder can fabricate metal like a professional in their home shop. This multi-process welder from the Eastwood Elite series is designed to do it all. It includes pro-grade torches for MIG, TIG and stick welding that use common consumables. You can do wire-free flux core welding, too. They aren’t stripped-down torches, either — each of these processes has all the same capabilities and features as you would find in a standalone welder. The 200-amp output is enough to weld up to 3/8-inch thick steel, and with an Eastwood Spool Gun you can weld aluminum, too!

The R&D guys have made it possible to customize your 3-in-1 welder for every job. It has infinitely adjustable knobs, digital displays, a built-in spot weld timer and heavy-duty wire feed motor. By using the latest IGBT inverter technology, we’ve slimmed the welder down to just 34 pounds for portability. We’ve included all the supplies you need to get started, included a shielding gas hose, welding rods, gas nozzles and ray tungsten. Eastwood Elite welders have a 3-year manufacturer’s warranty and lifetime tech support.

If you're looking for one of the best multi-process 200 amp welders that is a fully functional AC/DC TIG machine that can weld steel and aluminum with a foot pedal for precise control and many other features, check out the Eastwood Elite AC/DC 200 Amp MP200i.

The Eastwood Elite MP200i Multi Process Welder Features:

  • MIG, Stick or TIG Weld
  • Latest IGBT Inverter Technology
  • 120 VAC or 230 VAC Input Voltage
  • 200-amp maximum welding output
  • 40% Duty Cycle @ 90A 120 VAC
  • 20% Duty Cycle @ 200A 230 VAC
  • Welds up to 3/8” thick steel
  • Built-in Spot Weld Timer

latest IGBT inverter technology

The latest IGBT inverter technology produces the most stable arc possible and provides the capability of welding thin or heavy gauge steel with precision and ease. A powerful, 200 amp maximum welding output allows welding up to 3/8” thick steel and a unique, built-in Spot Weld Timer feature allows for exact, factory perfect spot welds on automotive restoration projects.

MIG and Flux Core Welding

TIG Welding

Stick (ARC) Welding

Warranty

Specifications

Input power: VAC 120-230
Frequency: 50/60 Hz
Rated input current: 20 Amps 120 VAC - 36 Amps 230 VAC
Rated working voltage: 18.5 volts @ 120 VAC - 24 volts @ 230 VAC
MIG welding current: 30-90 A @ 120 VAC | 30-200 A @ 230 VAC
TIG welding current: 20-90 A @ 120 VAC | 20-200 A @ 230 VAC
Stick welding current: 30-70 A @ 120 VAC | 30-170 A @ 230 VAC
Rated duty cycle: 120 VAC 40% @ 90A - 230 VAC 20% @ 200A
Weight: 34 lbs.
Recommended MIG Welding Wire
Solid: 0.023-0.035" (0.6-0.9mm)
Stainless: 0.023-0.035" (0.6-0.9mm)
Flux Core: 0.030-0.035" (0.8-0.9mm)
Recommended ARC Welding Rods
E6010: 1/16",3/32",1/8" - Polarity: DCEN
E6011: 1/16",3/32",1/8" - Polarity: DCEN
E6013: 1/16",3/32",1/8" - Polarity: DCEN, DCEP
E7014: 1/16",3/32",1/8" - Polarity: DCEN, DCEP
Recommended 20645Spool Gun Welding Wire
4043 Aluminum: 0.030-0.035" (0.8-0.9mm)
Duty Cycle

The rated Duty cycle refers to the amount of welding that can be done within an amount of time. The Eastwood MP200i has a duty cycle of 20% at 200 Amps for 230 Volts and 40% at 90 Amps for 120 Volts. It is easiest to look at your welding time in blocks of 10 Minutes and the Duty Cycle being a percentage of that 10 Minutes. If welding at 200 Amps with a 20% Duty Cycle, within a 10 Minute block of time you can weld for 2 Minutes with 8 Minutes of cooling for the Welder.

If the Duty Cycle is exceeded, the Welder will automatically shut off, however the fan will continue running to cool the components. When a safe temperature has been reached, the Welder will automatically switch the Welder output back on. To increase the duty cycle you can turn down the Voltage Output control.

In the Box

Contents

  • (1) - MP200i Dual-Voltage, Multi-Process Welder
  • (1) – Adapter Cord, 12 Ga., 3’ [0.91m], 120Volt 30 Amp Plug/NEMA 50R Receptacle
  • (1) - Shielding Gas Regulator
  • (1) - Shielding Gas Hose, 4.6’ [1.4m]
  • (1) - Ground Clamp with 10’ [3m] Cable
  • (1) - Trafimet ERGOPLUS 24, Tweeco Style MIG Torch. 10’ Length. (0 .030”/0.8mm contact tip installed)
  • (5) - Spare 0.030 Contact Tips
  • (1) - Electrode Holder with 12.5’ [3.8m] Cable
  • (1) - WP-17v TIG Torch with 10’ [3m] cable, 14’ [4.3m] Gas Line
  • (1) - #4 Gas Nozzle (1/4”)
  • (1) - #5 Gas Nozzle (5/16”)
  • (1) - #6 Gas Nozzle (3/8”) (Installed)
  • (1) - Short Black Cap (Installed)
  • (1) - Long Black Cap
  • (1) - Collet Body, 1/8” [3.2mm] (Installed)
  • (1) - Collet, 1/16” [1.6mm] (Installed)
  • (1) - Collet, 1/16” [1.0mm]
  • (1) - Collet, 1/16” [2.0mm]
  • (1) - 1/16” x 6” Tungsten (Gray)
  • (1) - Welding Wire Spool, 2lb., 0.030” Solid Wire
  • (5) - Welding Rods, 1/8” E6013

20645 Spool Gun for welding aluminum is optional and not included.

A foot pedal for TIG welding cannot be connected to this unit. It utilizes the torch trigger for TIG welding.

Guides & Accessories

Reviews

Rated 5 out of 5 by from Easy setup Awesome product easy setup an ready to go, had the 110v but need the 220 for thicker stuff
Date published: 2024-03-25
Rated 5 out of 5 by from Love it can’t wait to try the new tig function and love the mig experience Love the new welder works great with the mig lead was longer
Date published: 2024-03-23
Rated 5 out of 5 by from Best welder I have ever had Came fast. Sharp looking. Easy to use. High quality. It’s really really good at flux core best I have ever seen for that
Date published: 2024-03-16
Rated 5 out of 5 by from Excellent welder for the price The Eastwood 200 amp elite has been a very easy machine to set up and use quickly. If you’re looking for an affordable welder that can multi process look no further, you’ll be very satisfied with this machine.
Date published: 2024-03-01
Rated 5 out of 5 by from B3g5#$6m Good and smooth current flow. Make sure to get the eastwood cart.
Date published: 2023-07-15
Rated 5 out of 5 by from Great little unit that handles everything you would need. Nice little unit for a home shop. As of right now it would have been nice if they could squeeze more the n 70 amps on 110v so a person could run with 3/32 E7018. I was able to to try the tig torch out on a couple of 3/4” pipe shelf supports for the wife yesterday and it worked great. The material was under a 1/16” but with a 1/16 tungsten it preformed as I expected it would.
Date published: 2023-06-22
Rated 5 out of 5 by from Love Eastwood Welding Machines! I Love this Welder! It is exactly as described and gets the job done. I have 2 Eastwood Welding machines in my personal shop (1 multi-process & 1 Tig), and 3 Eastwood Welders at the Bladesmith Academy where I teach (1 MIG & 2 Multi-Process). They all are top notch machines and a great value! One more thing- No One Beats Eastwood’s 3 Year Warranty!
Date published: 2023-06-03
Rated 5 out of 5 by from Great Machine!!!! It's an excellent machine it'll do everything I want. I'm just at home welder. This machine makes it so easy.
Date published: 2023-04-28
  • y_2024, m_4, d_12, h_6
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.41
  • cp_1, bvpage1
  • co_hasreviews, tv_23, tr_59
  • loc_en_US, sid_20569, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 6.82ms
  • REVIEWS, PRODUCT

Questions & Answers

Lift or HI frequency tig?

Asked by: Rube
This unit features a Lift or scratch start TIG function only. Our Eastwood Elite 200 Amp Multi-Process AC/DC MP200i Welder and our Eastwood MP250i Multi-Process 250 Amp Welder do have HF start and foot pedal options though.
Answered by: Kelly H
Date published: 2023-11-24

Hello, I purchased many years ago the MIG 175/VersaCut 60 combo. Everything is still flawless and works like it did from day one, the MIG 175 came with the aluminum welding spool gun. Question: will the aluminum spool gun work with the MP200i ?

Asked by: bhyogy
The 20569 Elite MP200i uses a different spool gun design, unfortunately. However, 33980 MIG 180 or 33930 MIG 250 take the same one as long as your spool gun has the metal 2-pin trigger connector.
Answered by: Nick BC
Date published: 2023-11-13

Is The Setup Guide Available To Download In Color As the 120V Details Are Red On The Machine Setup Guide Decal?

Asked by: urbnsr
NO
Answered by: Anonymous
Date published: 2023-09-22

Can any generator be used as long as it give the power needed to supply the welder? An can using a generator mess the welder up in any way?

Asked by: Jonathan
Usually generators have a hard time keeping up
Answered by: Anonymous
Date published: 2023-11-12

I bought a finger trigger for my mp200i and it doesn't plug in need to know if they make a 5-pin to 4-pin adapter need to know if they make the same adapter for full gun so I can run my school gun off of that machine instead of my mig180

Asked by: Kelly
No adapters. Is the finger trigger Eastwood's? Call into our Tech Dept.
Answered by: Anonymous
Date published: 2023-11-18

Will it do spool gun

Asked by: Zavj
Item 20172 Call in 800-343-9353 ask for Jim Naylor
Answered by: Anonymous
Date published: 2024-01-09

What Are The Logistics To Receiving Warranty Coverage? Pay To Send To...Where? Opportunity to get repaired after warranty?

Asked by: urbnsr
https://www.youtube.com/watch?v=LysMdM-NSOQ
Answered by: Anonymous
Date published: 2023-05-21

What’s the Smallest recommend wattage generator for this welder? Would a 9000 get away with it?

Asked by: Ditchboiz
If you need full power we recommend a 12000W. 9000W would likely be fine for about 150A output.
Answered by: Nick BC
Date published: 2024-01-09
