Item # 72105 BRAND: Eastwood Elite

Eastwood Elite QST 30/60 Automatic Moisture Drain Kit

Automatically drain moisture from your Scroll Compressor.
Automatically drain moisture from your Scroll Compressor.
Eastwood Elite QST 30/60 Automatic Moisture Drain Kit is rated 2.7 out of 5 by 3.
  • y_2025, m_3, d_23, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_72105, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 33.24ms
  • REVIEWS, PRODUCT
$61.99
Loading...
Out Of Stock. Due back May 3
Save for Later
Automatically drain moisture from your Scroll Compressor.

1 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Eastwood Elite QST 30/60 Automatic Moisture Drain Kit
main product photo

Product Overview:

Description

The Eastwood QST 30/60 Automatic Drain Kit is specifically designed for use with the Eastwood QST 30/60 Scroll Compressor to provide enhanced moisture extraction capability. This is particularly important for Compressor health in high humidity and heavy use environments. The Automatic Moisture Drain automatically bleeds excess moisture captured by the Moisture Separator when the compressor cycles off. This minimizes moisture accumulation in the Oil Tank. The included Moisture Drain Bottle Kit catches the drained fluids and enables easy oil level checking by catching fluid from the Oil Tank Drain. Use of this kit will extend Compressor life.

  • Designed for use with the Eastwood QST 30/60 Scroll Compressor
  • Provides enhanced moisture extraction capability for your compressor
  • Use in high humidity and heavy use environments
  • Automatically bleeds excess moisture captured by the Moisture Separator
  • Use of this kit will extend Compressor life

Warranty

1 Year

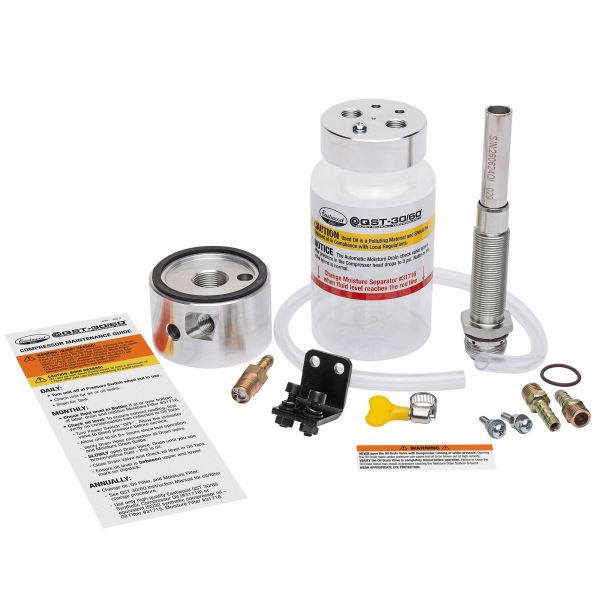

In the Box

Contents

Contents

(1) Eastwood Elite QST 30/60 Automatic Moisture Drain Block with Seal
(1) Check Valve Assembly
(1) 20” Drain Hose
(1) Hose Clamp
(1) O-Ring
(1) Standpipe with O-Ring Installed
(1) Moisture Drain Bottle
(1) Moisture Drain Kit Lid Assembly
(3) M5x20 Phillips Head Screws with Lock Washer, Washers and Nut
(2) Straight Brass Barbed Fittings
(1) Mounting Bracket
(2) M6x20 Socket Head Screws with Nut
(1) Compressor Maintenance Label
(1) Oil Drain Valve Warning Label

Guides & Accessories

Instructions

Please read and fully understand the instructions for this product before use

Safety Information

Please wear all proper personal safety equipment when using this product.

Consumables

31715,31716,31718,

Reviews

Rated 4 out of 5 by from get more moisture out In general I would recommend this, as anything to help get moisture out of the oil & air is good. Doing the first oil change on my gen1 compressor, there was a lot of moisture goo in the bottom of the oil. But the provided instructions are fairly minimal; it just says "remove old standpipe". The standpipe is two threaded pieces, grab the very top of old one with some vice grips and unscrew it. the bottom portion is threaded in also. You'll need a 30mm or 1-3/16" socket to remove. Don't try to use an adjustable wrench or adjustable pliers, as it is recessed below the seal surface for the filter and you'll just damage the alum housing, ask me how I know. Yes its too tall to put the cover back on, unless you want to cut a slot in the top to be able to reinstall
Date published: 2025-01-30
Rated 3 out of 5 by from Installed exactly as video and directions I just installed mine , reading the directions is one way or watch the YouTube video. I followed his moves step by step , and finally put the label on , check my oil and power on. I hear a hissing noise , clearly leaking somewhere , then the 20” hose pops off the bottle . Turned it off , reattached it , checked everything 1 more time , power it on. Pops off again. I cut a small portion on the tube , reattached it . It’s always something with this unit , but this will be my 3rd attempt . The block and pipe are on solid , the brass fitting are tight , I threaded the fitting into the moisture block, it’s sealed tight , I’ll give it another shot . Drum roll…..
Date published: 2025-02-07
Rated 1 out of 5 by from Missing product, unable to rate. 🤷‍♂️ I have no idea, paid for it 2 weeks ago and it hasn’t arrived.
Date published: 2025-01-15
  • y_2025, m_3, d_23, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_72105, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.19ms
  • REVIEWS, PRODUCT

Questions & Answers

The 20” hose keeps popping off at start up. I power down, check everything.. watched video and read directions , every is hooked up exactly as shown, blows off again. What now ? Cut the hose ?

Asked by: Roby
Did you swap one of the threaded fittings? the matching pair should be in the bottle and the one with a check valve should be in the filter adapter block
Answered by: robj
Date published: 2025-02-20

Does this push the filter too high such that it conflicts with the enclosure on earlier models? Also, it would be appreciated if you would offer these at no cost since it appears to be a design issue.

Asked by: tadufour
In the instructions it says you 'can not' use the enclosure. Yes it would have been nice to get this as a update free of charge, I have only had my unit for around 8 months with only 2hrs on it, It is what it is a guess. I received the kit Friday, I am going to wait until the spring to install it when I do the oil and filters.
Answered by: SteveF
Date published: 2025-02-08

Are instructions included for proper installation? Can the enclosure still fit over the unit once installed?

Asked by: nhsteve
Yes instructions are included and in those instruction it says you 'can not' use the enclosure.
Answered by: SteveF
Date published: 2025-01-19
