Item # 16178ZP BRAND: Eastwood

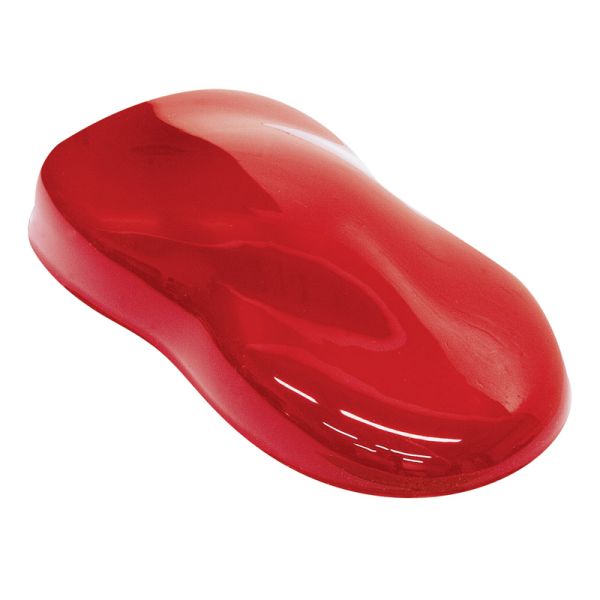

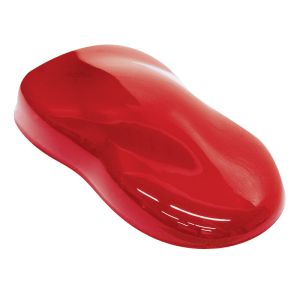

Eastwood 4:1 GM Regal Red - Basecoat - Automotive Car Paint - Gallon

This classic GM color is part of Eastwood’s Muscle Car Color Series
This classic GM color is part of Eastwood’s Muscle Car Color Series
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 59.3ms
  • bvseo-msg: HTTP status code of 404 was returned;

Customize this product:

* Required Fields


Select a customization to add to cart
Save for Later
This classic GM color is part of Eastwood’s Muscle Car Color Series

90 day Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Eastwood 4:1 GM Regal Red - Basecoat - Automotive Car Paint - Gallon

Product Overview:


Eastwood GM Regal Red Basecoat Paint adds the superior durability of urethane to the ease of conventional basecoats.

  • Apply a durable urethane finish wherever you live in the continental US, even CA
  • Choose a fast, medium or slow Low-VOC Activator
  • Makes 5 sprayable quarts
  • Clearcoat is required on basecoat paints
  • Mixes 4:1 with your activator choice
  • Approximate coverage: 160 SQ FT
  • Max Temperature: Paint will handle up to 300 degrees without delamination, but color shift may occur, so it should not be used in a high heat setting
  • Made in the USA
  • This classic GM color is part of Eastwood’s Muscle Car Color Series

Basecoat Paint Kit is a low-VOC system, so it meets regulatory limits in highly-regulated areas, eliminating the need to switch to a waterborne system.


90 Day


Thoroughly mix four parts Low-VOC Urethane Basecoat with one part Low-VOC Urethane Activator. Use Fast (50308ZP) for small jobs, or temps below 75°F; Medium (50309ZP) for small jobs, or temps between 70-85°F; or Slow (50310ZP) for large jobs, or temps above 80°F. Keep in mind, other factors, such as humidity, air flow and total film thickness should also be considered. In many situations, it will be useful to add 10%-20% 50104ZP Zero-VOC Reducer to aid sprayabliity, flow and leveling. Remember, this is an activated basecoat system; only mix as much as is needed. Pot life is about 2 hours at 70°F.

HVLP Gun: Fluid Tip 1.2-1.4 mm Inlet Spray Pressure 8-10 psi
Conventional Gravity: Fluid Tip 1.2-1.5 mm Inlet Spray Pressure 40-50 psi
Conventional Siphon: Fluid Tip: 1.3-1.6 mm Inlet Spray Pressure 40-50 psi

Apply Low-VOC Urethane Basecoat color in two full medium wet coats with a consistent 50% overlap pattern. Allow five to ten minutes flash time between coats. Flash time should increase if additional coats are applied. Most colors will cover in two coats.

Basecoat should dry dust-free within 10-20 minutes. May be lightly sanded in as few as 20 minutes. Wait at least 30 minutes before wet sanding. Wait 45-90 minutes before taping on the fresh film. All dry times are approximate, at 70°. Temperature, air flow, total film thickness and other variable may extend these times.

**Our Best Representation. Not designed to be an exact factory match**

In the Box


Urethane Basecoat, 1 gallon
Low-VOC Urethane Activator, 1 qt. (your choice of Fast, Medium or Slow)

Guides & Accessories


Click here for product instructions

Safety Information

Always wear appropriate eye, skin and respiratory protection. Consult MSDS for specific precautions and warnings .VOC = 3.5 lbs./gallon.


50104ZP Zero-VOC Urethane Paint Reducer
PRE Painting Surface Prep
Low-VOC Gray Urethane Primer
12569 Concours Master Gun Cleaning Kit
12846Z Aerosol-Injected Cleaner
SAS Bandit Respirator
Gen-Nex Painters Coveralls
15639 Concours LT HVLP Paint Gun 1.3mm

Application Tips

Choose From A Fast, Medium Or Slow Low-Voc Activator


  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 11.42ms
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

Can I buy a quart in addition to the gallon?

Asked by: Jlee
Unfortunately, this is not an available option. We only offer this in a gallon size. We apologize for the inconvenience.
Answered by: Kelly H
Date published: 2022-04-18

I’m repainting a 2002 Trans Am convertible. I was wondering if you knew how much paint I’d need?  Also can these paints work with your metallic additives?  I was hoping to use your purple with this red?  Thanks for any info.  This is a first for me.

Asked by: Frank1126
If this is a color change paint job that includes door jams, under hood, under trunk and any interior painting, 2 gallons are recommended. If no door jams, under hood or under trunk painting, 1 gallon should be enough. Each gallon when mixed to the specified 4:1 mix with the activator will make 5 paintable quarts. Yes you can mix Eastwood Metallic additives with this paint or in the clear urethane top coat. This base coat/ clear coat paint will need to be clear coated and you will need the same amount of clear as color. Most red paints require 2-3 coats for a complete coverage.
Answered by: vince
Date published: 2021-05-30

How soon can you tape over this to lay down stripes will there be enough time to do both before clear coating?

Asked by: Ed45
If applying ad curing in temps of roughly 70F and above, we recommend waiting at least 45-90 minutes before taping. You have up until 18 hours to apply a clear over without the need to sand or abrade.
Answered by: Kelly H
Date published: 2021-05-05

How many square feet does a gallon of paint cover?

Asked by: Bill
160 square ft
Answered by: eastwood alsip
Date published: 2021-04-19

Is the accessories included with the paint?

Asked by: Owen
This is just the paint. Any accessories will need to be purchased separately.
Answered by: ZachC
Date published: 2020-02-15

Is it possible to get a color sample?

Asked by: JohnL92
A sample of this color is available in our painting chip chart.
Answered by: SeanW
Date published: 2020-02-05

i have a 66 chevelle can you use this paint without clear coat on the dash and interior

Asked by: stevenscksj
This Base coat paint alone is not uv stable. A clear would need to be applied over top.
Answered by: Kelly H
Date published: 2018-06-29

Do you sell samples/chip of your paint?

Asked by: DreamC10
We do actually have a link here to receive a chip chart.
Answered by: Scott C
Date published: 2018-05-30
