Eastwood L6700 LED Welding Helmet Light Edition
2 year Warranty Included
Add an Eastwood Service Plan for additional protection?
Learn More
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Product Overview:
Description

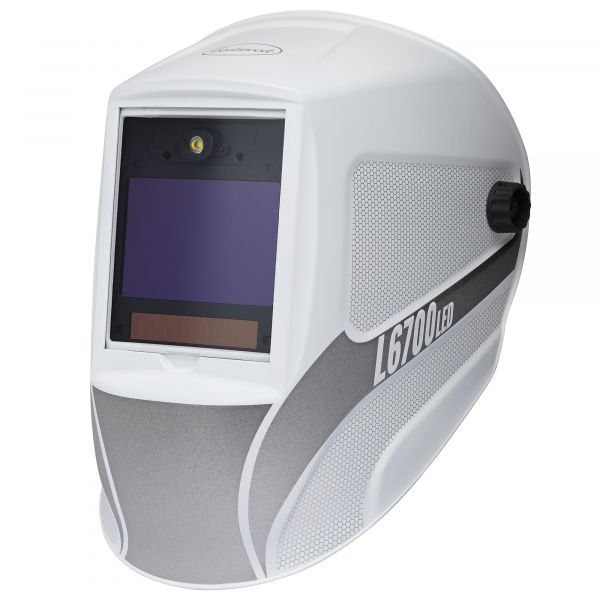

The Eastwood L6700 LED Welding Helmet is a high-quality welding helmet that provides excellent UV and IR radiation protection with a large viewing lens. The integral 100 Lumen LED light enhances visibility while welding, plasma cutting, and grinding in dim areas. True Color technology with auto-darkening feature provides optimal visibility of the workspace at all times with nearly instantaneous arc protection. All settings are adjusted directly on the viewing lens cartridge. The replaceable, long-life CR2032 batteries (included) are maintained by the solar panel and will last many welding hours before replacement is necessary. The LED light has a separate, USB rechargeable lithium ion battery that can last up to 11 hours. Comfort is at your fingertips with the 10-way adjustable headgear which features a quick-adjust, oversized rear support. This helmet meets ANSI Z87.1, CSA Z94.3, WWH 175 B, AS/NZS 1337, and CE welding helmet standards.
Eastwood L6700 MIG TIG Welding Helmet Matte White with LED Light Features:
- Provides excellent UV and IR radiation protection with a large viewing lens
- Integral 100 Lumen LED light enhances visibility while welding
- True Color technology with auto-darkening feature provides optimal visibility
- All settings are adjusted directly on the viewing lens cartridge
- Replaceable long-life CR2032 batteries are maintained by the solar panel and will last many hours
- LED light has a separate, USB rechargeable lithium ion battery that can last up to 11 hours
- 10-way adjustable headgear which features a quick-adjust, oversized rear support
- Meets ANSI Z87.1, CSA Z94.3, WWH 175 B, AS/NZS 1337, and CE welding helmet standards
Warranty
Specifications
Optical class: 1/1/1/1
Viewing area: 3.94" x 2.64"
Viewing lens type: True Color
Controls: Analog
Cartridge Size: 5.25" x 4.5" x 0.35"
Sensitivity: Inside & Stepless adjustment
Delay Time: Inside & Stepless adjustment 0.15 - 0.80s
Shade adjustment: Inside and Stepless
Arc Sensors: 4
Light state: DIN 3
Dark state: DIN 5-9 / 9-13
TIG capability: >2A
Grinding mode / location: Independent switch / Inside
UV & IR protection: Up to DIN 16
Cartridge Power Supply: 2x Replaceable Li-Mn CR2032 & Solar combination
Switching time (light to dark): <0.00006 second @ room temperature
Helmet Material: High Impact Resistant Nylon
Operating Temperature: 23°F to 122°F (-5°C to 50°C)
Weight: 1.23 lbs.
Certifications: ANSI Z87.1 CSA Z94.3 WWH 175 B AS/NZS 1337 CE
LED Power Supply: 3.7V / 1100mAh, Li-Ion Rechargeable Battery
LED Light Output: 50 / 100 Lumen LED
Runtime: 11 / 4 Hours
LED Light Activation: Light-mounted button inside helmet
LED Light Charging: 2 Hour Charge Time (USB Type-C Port) 5V, 1A input
Shipping & Handling
In the Box
Contents
(1) L6700 LED Welding Helmet
(1) Replacement Inner Shield
(1) Replacement Outer Shield
Guides & Accessories
Instructions
Click here to download product instructions
Safety Information
Reviews
Questions & Answers
Are the auto shade or light shut off automatically when not in use?
