Item # 32498 BRAND: Eastwood

Eastwood Benchtop Mini Mill - 4 Inch x 16 Inch

Drill - Machine - Mill - Slot - Radius - Bevel at Home
Drill - Machine - Mill - Slot - Radius - Bevel at Home
Eastwood Benchtop Mini Mill - 4 Inch x 16 Inch is rated 4.2 out of 5 by 12.
  • y_2023, m_3, d_28, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_2, bvpage2n
  • co_hasreviews, tv_1, tr_11
  • loc_en_US, sid_32498, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 124.6ms
  • REVIEWS, PRODUCT
Reg. $849.99 Sale $799.97 Save $50.02
Loading...
Loading...
Save for Later
Drill - Machine - Mill - Slot - Radius - Bevel at Home

1 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Eastwood Benchtop Mini Mill - 4 Inch x 16 Inch

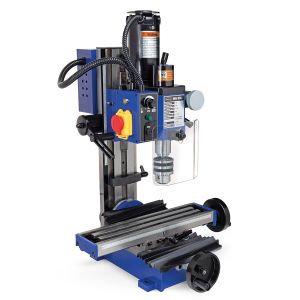

main product photo
Frequently Bought Together

Price for all checked items:

Product Overview:

Description

With The Eastwood 4" X 16" Mini Mill You will be able to accomplish projects that simply are not possible without a milling machine. Now you can accurately Slot, Drill, Chamfer, Bevel, Face and Plunge Cut with this one machine. The tilting column allows for accurate angle work to be done and the Large R8 Taper accommodates common tooling. We've even included an 3/8" Collet and end mill so you can begin machining right out of the box!

Features:

  • Home workshop-friendly size
  • Accurately, Slot, Drill, Chamfer, Bevel, Face and plunge cut
  • Tilting column allows for accurate angle work
  • Large R8 Taper accommodates common tooling
  • 0-2500 RPM Motor Control with a 2 Speed gearbox

The Eastwood 4” X 16” Mini Mill is a highly capable machine able to perform as a Drill Press with up to 1/2” [13mm] drill shank capacity and as a fully functional manual Milling Machine with up to 5/8” end mill capacity (3/8” included). The 2 axis Table, along with a 45° left or right tilting column design, allows drilling or milling virtually any surface. A 0-2500 RPM Motor Control with a 2 Speed gearbox provides the versatility to accommodate most materials. The standard R8 Taper arbor will accept a wide variety of Collets, Drills and other accessories.

Warranty

1 Year

Specifications

Spindle Travel: 5 inches
Swing: 12-3/4 inches
Longitudinal Table Travel: 7-5/16 inches
Cross Table Travel: 4 inches
Head Travel: 7-1/2 inches
Head Tilt: Left and Right 45 deg
Maximum Distance Spindle to Column: 6-3/8 inches
Maximum Distance Spindle to Table: 11-1/2 inches
Drilling Cap for Steel: 5/8 inch
Range of Vertical Spindle Speeds: 0 – 1100, 0 – 2500 RPM
Quill Dial: 1.580 inch
Table Length: 15-3/4 inches
Table Width: 3-5/8 inches
Number Of T Slots: 3
T Slots Width: 0.465 inch
T Slots Height: 5/8"
T Slots Centers: 1-1/8 inches
Stud Size: 5/8 inch
Spindle Taper: R8
End Milling Cap: 1/2 inch
Face Milling Cap: 1-1/8 inches
Draw Bar Diameter: 12 mm
Draw Bar TPI: 7/16" x 20
Draw Bar Length: 4 inches
Spindle Bearings: Permanently Sealed Ball Bearings

Shipping

Ships Via Truck

In the Box

Contents

(1) 4” x 16” Milling Machine with installed Drawbar and R8 Taper ½” (13mm) Drill Chuck
(1) Chip Shield (Installed)
(1) Drill Chuck Key
(2) Handwheel Handles
(1) Spanner Wrench 38-42mm
(1) Spanner Wrench 45-52mm
(1) Wrench 8/10mm
(1) Wrench 14/17mm
(1) Wrench 17/19 mm
(1) Wrench 36mm
(1) Spare Fuse 5 Amp
(2) T Nuts M10-1.5
(1) Spindle Locking Pin
(1) Set of 4 Hex Keys
(1) Oil Bottle
(1) 3/8” R8 Collet
(1) 3/8” End Mill
(1) Eastwood Instruction Manual

Guides & Accessories

Instructions

Click here for product instructions

Milling for home Machinists For Home Machinists Book

Metalworkers Data Book For Home Machinists Book

Safety Information

Always wear eye and hand protection when working with metal. Keep all body parts away form moving parts of this machine. Please read and fully understand the instruction manual before use.

Aerosol Details

Application Tips



Reviews

Rated 4 out of 5 by from Nice looking machine Nice looking machine i pictured it bigger but think i will be able to make it work.
Date published: 2021-05-21
Rated 2 out of 5 by from Cleaning and setup So. Idk where all these good reviews come from but they must have just opened the crate and wiped off the Cosmoline from the outside which hope they didn't. Customers who purchased this mill would be feeling the same as me. Im not sure why it didn't just come in parts but this whole ordeal was inside. I've just spent every minute of my free time for a week on disassembly, cleaning, making sure there were zero defects, oiling/greasing and reassembling. I just got done yesterday and still have to tram the thing. "I did find defects, as in cross threaded alignment screws, and some others ill get to" not considering the products i had to buy to remove the Cosmoline which i feel like i should at least be compensated for if not the time i have into this. Things i discovered already saved them money from having to replace the y axis feed screw bearing, i had to purchase a shim set because the but there cheap, just wish a set was sent with it. as i said if it came in parts, shipping would be cheaper, it would of been much easier for the customer, and i could make sure its not going together in a manner that causes cross threading or other issues as the people from the factory seem to love doing. I may also need new gib spacers since someone tried drilling a little notch for the 'dog point" set screws to sit, but it didn't work and i noticed the gib spacers are only contacting at the top and not the whole surface of the dove tail. Finding threads in ball bearings isn't a hopeful sight and im just praying theres nothing wrong since i didn't feel comfortable trying anything with all Cosmoline and gritty stuff that was stuck to it, idk if it was metal or just dirt but it was awful. I know this isn't the highest quality machine out there and i also understand the reason behind the Cosmoline but dang it was a job., i wish they at least said something in the advertisement here or at least gave me some direction in the manual. I talked to a lovely gentleman about it Friday who probably just wanted to go home and not talk to me after id been pretty fed up that i wasn't even close to trying it. Im not sure if i need a new base or not but it wasn't machined correctly so they just took a grinder to it at the factory that left a hump where the column sits. Its Sunday and im tired so i will see if its even correct tomorrow but i can clearly see its not sitting flush with that weird part. I don't have access to a machine to have it fixed either or i would, and its too big for a file. Maybe im just too malicious about it but i dont think im exaggerating, no where does it explain this step which should be in the manual at least. Even after all this im really not upset i just hope it works because im not going to clean another machine, it has already cost me much more than it should have. Hopefully they will understand my grievances and understand where im coming from, i definitely would have bought something a little more expensive if that meant the machine wasn't in such condition and i hope this isn't just some cheap machine Eastwood buys from the manufacturer that they know has issues, its not expensive but its not cheap either so i honestly expected a little better quality than this, i had the idea someone at Eastwood at least inspected the machine itself and not just the box, they would of seen its probably not something they wanted to have their name on. I know they stand behind their products and that's the only reason i purchased from them, my intention from the beginning was to use it and modify it as needed, but its in kind of a weird condition that it needs more than i thought. Ill report back after i speak with customer service and hopefully some of these issues will be resolved..
Date published: 2023-01-23
Rated 2 out of 5 by from A pandora’s box of issues This mini mill works well when it works. For me that was roughly 2 hours lol. It is exceedingly obvious how many corners were cut in manufacturing to keep costs low. A cheap plastic gear broke so I decided to try and upgrade the mill to being belt drive (slightly less torque but safer and no broken gears to worry about), but had so many issues disassembling this machine because of parts that were obviously not machined well and then just brute forced on. I bent the shaft of a flathead screwdriver (1/4” thick steel) trying to pry the godforsaken gear off of the motor spindle. It had obviously been hammered on at the factory. In the process of finally getting that gear off, the plastic (!) housing keeping the spindle in place broke from the prying force. Had to buy new parts from littlemachineshop because OF COURSE Eastwood sells no replacement parts. They also never responded to my correspondence seeking to file a warranty claim. After I replaced the housing and finished the belt drive upgrade it worked for about an hour and then just stopped. No fault light on so the issue is the motor. $200+ for a replacement motor (again, not sold by Eastwood) or just sell in its current non-functional state and buy a well built machine? So long mini mill. Never buying Eastwood again.
Date published: 2023-01-02
  • y_2023, m_3, d_28, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_2, bvpage2n
  • co_hasreviews, tv_1, tr_11
  • loc_en_US, sid_32498, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 28.12ms
  • REVIEWS, PRODUCT

Questions & Answers

What is the model number for this machine? I can't seem to find it anywhere

Asked by: Anonymous
This product is Eastwood Item No. 32498.
Answered by: Nick BC
Date published: 2023-01-14

What type of leadscrews does this mill have?

Asked by: Scooter
This mill has a standard style lead screw. It does not have ball screws.
Answered by: Nick BC
Date published: 2022-06-22

What options are available for securing material to the milling table?

Asked by: Lucas
At this time Eastwood does not sell any fixturing tooling or vises designed specifically for this mill, but our customers have used the included T-slot nuts to attach a vise, or other T slot fixturing clamps to secure their workpiece on the mill.
Answered by: CodyB
Date published: 2023-01-14

What is the shipping weight of the mill

Asked by: MikeMc
Shipping weight of this item is 149 lbs.
Answered by: Kelly H
Date published: 2022-11-09

What is the travel distance is there for each axis

Asked by: Liquid
The approximate travel of the axes is: 8.75" X (Table) 4" Y (Table) 7.375" Z (Headstock)
Answered by: Nick BC
Date published: 2022-08-24

What is footprint total

Asked by: Leon
The footprint of the base is 8.5" W x 12.5" D. Overall you probably want about 3' W x 2' D x 3' H open space for ease of use machining and full travel of the axes.
Answered by: Nick BC
Date published: 2022-08-16

Will this end mill stainless

Asked by: Bigdog
You can - be sure to use a collet with 4 flute end mill and fasten the workpiece rigid on the table or in a vise.
Answered by: Nick BC
Date published: 2022-08-16

What is the motor HP or KW rating for this Mini Mill?

Asked by: Tim S
The motor is 3/4 HP.
Answered by: Nick BC
Date published: 2022-08-16

Does Eastwood make a milling vise for this?

Asked by: Diastolic82
We do not currently sell Eastwood milling vises.
Answered by: Nick BC
Date published: 2022-08-16

What is the motor hp/w rated at?

Asked by: A234
The motor is 3/4 HP.
Answered by: Nick BC
Date published: 2022-05-23

Will this mitre bicycle frame tubing? Up to 1 1/8 tubing?

Asked by: Patrick
Patrick, This can mitre bicycle tubing with proper fixturing and tooling. another option for this would be our tubing notcher.
Answered by: CodyB
Date published: 2022-11-10

Is this machine 120 single phase

Asked by: Will
Yes, this needs a single-phase 120v power
Answered by: ZachC
Date published: 2022-03-29

How. Many amps

Asked by: Melvin
The Motor Amperage for the Eastwood Mini Mill(32498) is 4.5 amps.
Answered by: ZachC
Date published: 2021-11-16

Do you have other models of bench top milling machines?

Asked by: George
At this current time- this one is the only option we offer.
Answered by: Kelly H
Date published: 2022-04-16

Need table clamps.  What size and do you carry?  Can’t find them on your site.

Asked by: Groovidad
Littlemachineshop.com has an awesome package for the R8 mini mills . Vises, clamps , tooling , etc.
Answered by: Uncle Matt
Date published: 2021-12-04

can you add a digital readout to this?

Asked by: TBOLT1985
can purchase digital linear readout kits for mini mills from a 3rd party supplier for universal attachment to most mini mills
Answered by: Mr Booth
Date published: 2022-03-29

How much does it weigh?

Asked by: Chris
Approximately 143 pound.
Answered by: vince
Date published: 2022-03-29

I'm interested in the Eastwood Benchtop Mini Mill and am new to milling. Can the machine run annular cutters to make holes? What is the max size collet/shanks can be used in the machine? Thanks!

Asked by: Leaseline1
Yes you can use annular cutters in this machine. The larges shank size is 1/2" or 13mm
Answered by: vince
Date published: 2021-08-17

Does the table have stops you can set as well?

Asked by: Corey
Yes it includes depth stops for drilling operations.
Answered by: vince
Date published: 2021-08-17

Whats the overall dimensions and clearance needed around it. Before buying I need to know how much real estate it needs, nowhere it is indicated

Asked by: Tazio
The maximum height of the machine is 30 inches you should allow 2 inches above for a total of 32 inches overall height clearance. The depth is 21" and allowing 2 inch clearance total depth needed would be 23 inches. The width is 20 inches wirth the table centered. with the table full left then full right the total width would be need to be 32 inches.
Answered by: vince
Date published: 2022-05-03

Do you sell t slot clamps for it?

Asked by: Brd166
This unit comes with 2 T-nuts included for clamping purposes. At this time we do not offer T-clamps tfor this unit but they are available on line from several manufactures.
Answered by: vince
Date published: 2021-08-17

How many amps is the motor

Asked by: Maddie
The Motor Amperage for the Eastwood Mini Mill(32498) is 4.5 amps.
Answered by: vince
Date published: 2021-08-17

Does Eastwood offer a table or cabinet for this item. Would be nice if you do so you could keep milling machine tools separate and have a sturdy base To work on.

Asked by: Bowtie1952
At this time we don't currently offer a table or cabinet but are always looking for the next great addition to our current line up.
Answered by: Scott C
Date published: 2021-08-17

What’s the total height of the unit??

Asked by: Travis
This unit is 30" tall.
Answered by: Kelly H
Date published: 2021-02-15

Steel gearing

Asked by: Oneshot
The drive gears on the Mini Mill are POM Nylon
Answered by: Scott C
Date published: 2021-04-26

Are the drive gears plastic/nylon or are they steel

Asked by: Ken12
The drive gears on the Mini Mill are POM Nylon.
Answered by: RLRL
Date published: 2021-06-07

Is it gear or pulley drive

Asked by: Harri
This unit features a durable geared drive.
Answered by: Scott C
Date published: 2021-02-15

Does it require 110V or 220V?

Asked by: Lastboyscout
This item requires 120V. .
Answered by: Kelly H
Date published: 2021-06-05

Where is it made

Asked by: Jim319
This item was designed in house here in PA but is manufactured overseas for us in China.
Answered by: Kelly H
Date published: 2021-05-25

How much does it weight?

Asked by: hello
This product weighs 149lbs.
Answered by: ZachC
Date published: 2021-04-03
