Details

The Eastwood Modular Lighting System Utilizes the latest LED technology to achieve the brightest 1000 Lumen light output and most energy efficiency possible.

• Three function Switch:
• Press once and release, On – High Illumination
• Press and hold, Dimming up and down
• Press and release, Off/On
• 170° adjustable Handle/Stand with magnetic base
• Battery power display function: 3 Color, 4 Segment LED’s indicate charge level
• Durable aluminum housing
• Interchangeable, Tool Free, Clamp-on accessory attachment system
• 12 Volt, 1 Amp output AC wall charger with 9ft cord
• 12 Volt, DC, automotive “lighter” type, power port charger with 6ft cord

The progressive dimming feature allows infinitely adjustable light output to provide only the light needed while conserving battery power.

Contents

32400 Eastwood Modular Lighting System

(1) Eastwood Lighting System Light Module on adjustable magnetic base
(1) Wall Charger – 120V input, 12V, 1 amp output, 9 ft. cord
(1) 12 Volt DC Power Port Charger – 12V input, 12V 500ma output

32401 Underhood Bar

(2) Halves of Bracket
(1) Sliding Light Module Mount
(2) Thumb Screws

Specifications

32400 Eastwood Modular Lighting System

Battery: Rechargeable Li-Ion 7.4V 2200 Mah
Functions: On/Off and Dimmable
Brightness: On/Off = 1000 Lumen; Dimmable = 100-1000 Lumens
Runtime: 1.5hrs on High; 8hrs on lowest dimmer setting
Charge Time: 3hrs
Moisture Rating: IP65
AC Adapter: Input 120V, Output 12V; 1A, 9ft cord
DC Adapter: Input 12V; Output 12V; 500mA, 6ft cord
Dimensions: 6.7" x 6.2" x 2.2"
Weight: 1.6lbs

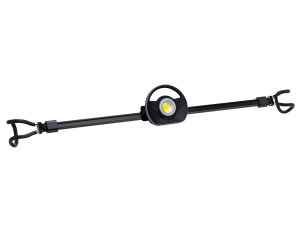

32401 Eastwood Underhood Light Bracket

Expands from 48" to 72"
Non-Marring Hooks included to protect from scratching paint
Durable Aluminum Body
Fits up to four Eastwood Modular Lighting Modules

Instructions

Click here for product instructions

Safety

Please fully read and understand the instruction manual and safety warnings on this product before use.

Warranty

1 Year Warranty
