Item # 16179ZP BRAND: Eastwood

Eastwood 4:1 Afterburner Red - Basecoat - Automotive Car Paint - Gallon

Urethane basecoat works with our Low-VOC Primers, Clears; w/ activator
Urethane basecoat works with our Low-VOC Primers, Clears; w/ activator
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 6.28ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;

Customize this product:

* Required Fields

$244.99

Loading...
Select a customization to add to cart
Save for Later
Urethane basecoat works with our Low-VOC Primers, Clears; w/ activator

90 day Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Eastwood 4:1 Afterburner Red - Basecoat - Automotive Car Paint - Gallon

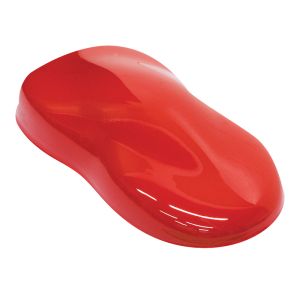

main product photo
Frequently Bought Together

Price for all checked items:

Product Overview:

Description

Eastwood Afterburner Red Basecoat Paint adds the superior durability of urethane to the ease of conventional basecoats.

  • Apply a durable urethane finish wherever you live in the continental US, even CA
  • Choose a fast, medium or slow Low-VOC Activator
  • Makes 5 sprayable quarts
  • Clearcoat is required on basecoat paints
  • Mixes 4:1 with your activator choice
  • Approximate coverage: 160 SQ FT
  • Max Temperature: Paint will handle up to 300 degrees without delamination, but color shift may occur, so it should not be used in a high heat setting
  • Made in the USA

Basecoat Paint Kit is a low-VOC system, so it meets regulatory limits in highly-regulated areas, eliminating the need to switch to a waterborne system.

Warranty

90 Day

Specifications


BASECOAT PAINT MIXING RATIOS
Thoroughly mix four parts Low-VOC Urethane Basecoat with one part Low-VOC Urethane Activator. Use Fast (50308ZP) for small jobs, or temps below 75°F; Medium (50309ZP) for small jobs, or temps between 70-85°F; or Slow (50310ZP) for large jobs, or temps above 80°F. Keep in mind, other factors, such as humidity, air flow and total film thickness should also be considered. In many situations, it will be useful to add 10%-20% 50104ZP Zero-VOC Reducer to aid sprayabliity, flow and leveling. Remember, this is an activated basecoat system; only mix as much as is needed. Pot life is about 2 hours at 70°F.

PAINT GUN SET-UP
HVLP Gun: Fluid Tip 1.2-1.4 mm Inlet Spray Pressure 8-10 psi
Conventional Gravity: Fluid Tip 1.2-1.5 mm Inlet Spray Pressure 40-50 psi
Conventional Siphon: Fluid Tip: 1.3-1.6 mm Inlet Spray Pressure 40-50 psi

APPLICATION INSTRUCTIONS
Apply Low-VOC Urethane Basecoat color in two full medium wet coats with a consistent 50% overlap pattern. Allow five to ten minutes flash time between coats. Flash time should increase if additional coats are applied. Most colors will cover in two coats.

Basecoat should dry dust-free within 10-20 minutes. May be lightly sanded in as few as 20 minutes. Wait at least 30 minutes before wet sanding. Wait 45-90 minutes before taping on the fresh film. All dry times are approximate, at 70°. Temperature, air flow, total film thickness and other variable may extend these times.

In the Box

Contents


Urethane Basecoat, 1 gallon
Low-VOC Urethane Activator, 1 qt. (your choice of Fast, Medium or Slow)

Guides & Accessories

Instructions

Click here for product instructions

Safety Information

Always wear appropriate eye, skin and respiratory protection. Consult MSDS for specific precautions and warnings .VOC = 3.5 lbs./gallon.

Accessories

50104ZP Zero-VOC Urethane Paint Reducer
PRE Painting Surface Prep
Low-VOC Gray Urethane Primer
12569 Concours Master Gun Cleaning Kit
12846Z Aerosol-Injected Cleaner
SAS Bandit Respirator
Gen-Nex Painters Coveralls
15639 Concours LT HVLP Paint Gun 1.3mm

Application Tips

Choose From A Fast, Medium Or Slow Low-Voc Activator

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 6.07ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

Can this be applied over black base coat for art work ie. flames stripes ect

Asked by: Jack
This is a basecoat and we cannot insure compatibility. Basecoat over Basecoat?
Answered by: GeneB
Date published: 2023-07-12

do you sell color samples for your paint? All the reds look so close to the same shade.

Asked by: 69camaro
We offer our chip chart part #51136.
Answered by: ZachC
Date published: 2021-10-27

What color primer is used with this paint color?

Asked by: Bill
This was sprayed over a grey primer.
Answered by: SeanW
Date published: 2021-10-27

How can I compare this red to the other basecoat reds in something larger than the 1" color chip? Possibly a description of year/model of a car that it's close too, or possibly whether it's lighter, darker, warmer, more pink/orange to the other reds?

Asked by: Ross
The color options we have are manufactured specifically for us. We can not match or even cross reference to any paint codes, makes, models or years (there's way to many available options out there for us to do so). The only way to view these colors is with the color chip chart in reference, online, or at one of our 3 retail locations. We apologize for the inconvenience.
Answered by: Kelly H
Date published: 2021-10-27
