Item #
20195
BRAND: Eastwood
Eastwood Shop Table Kit Unpainted Bare Steel
Sturdy steel brackets for quick do it yourself workbench construction with wood or steel
Sturdy steel brackets for quick do it yourself workbench construction with wood or steel
Eastwood Shop Table Kit Unpainted Bare Steel is rated
out of
5 by
77.
Sturdy steel brackets for quick do it yourself workbench construction with wood or steel
None Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
A shop table kit from Eastwood lets you build exactly the kind of workbench you need for your shop.
Workbenches sound simple, but each one can be a little bit different. We know very few people who follow the assembly instructions to a T — home fabricators usually make their own customizations or tweaks to a table to suit the types of tasks they want to get done.

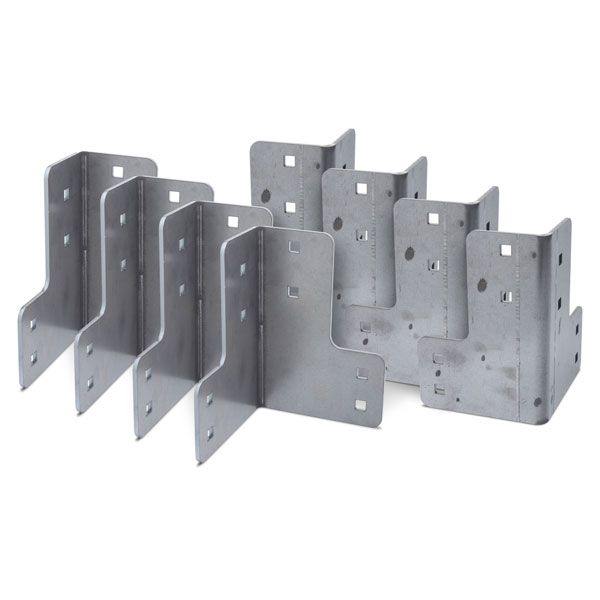

Eastwood Shop Table Bracket Kit Features:
- Unpainted bare steel
- 3/16 inch Heavy Gauge High Strength Steel
- Laser cut and CNC bent for accuracy
- Bolt together with 4x4 and 2x4 lumber
- Weld together with 2.5in tubing and 2in angle iron
- 8 brackets in kit make 1 table
- You decide height and width of the table by the lumber or steel purchased.
Each auto shop is different, and a one-size-fits-all workstation many not fit you. The Eastwood Workbench Bracket Kit forms the foundation of a custom table for metal fabrication, part cleaning and many other task. Each package includes eight corner brackets made of 3/16-inch heavy-gauge steel steel. Use them to assemble a wood or steel table with the dimensions you’ve chosen. The brackets are fabricated in the USA with laser cutting and CNC bending for a precise fit.
Instead of trying to “make it work”, make a table that works for you by shopping at Eastwood. Supply your own lumber or angle irons and steel tubing to form the frame. You can mix and match materials, too. Whether bolted or welded, these brackets will hold them together for decades. You can also add center supports, storage shelves and more — the choice is yours! This DIY shop table kit is an affordable solution for mechanics who don’t mind putting in a little elbow grease to get the work surface they want. Do the Job Right with our 100% customer satisfaction guarantee.
They are designed to use 4x4 lumber or 2.5-inch square tube legs, and 2x4 lumber or 2-inch angle iron for surfaces. Laser-cut and CNC bent for accuracy, they will help hold that table together for generations.
Warranty
Made in USA
Specifications
5 lbs each, 8.75 inches high with 6 inch wide mounting flanges
3/16 inch thick heavy gauge Domex steel (made in Sweden) corner brackets are the foundation of this kit. Laser cut and CNC bent brackets assure perfect 90 degree bench corners and parallel legs. Kit includes 8 brackets to build a bench any length, width or height you want while assuring the bench will be square and plumb. Brackets are designed to use 4 x 4 lumber for legs and 2 x 4 lumber for cross members or use 2.5 inch diameter tubing for legs and 2 x 2 x 1/4 inch angle iron for a weld up design.
In the Box
Contents
Includes
(8) Workbench Corner Brackets
Required Materials (Not Included)
Legs = four 4x4’s x 36” Long (4)
Stringers (2 top, 2 bottom) = four 2x4’s x 86” Long (4)
Side Runners (2 top, 2 bottom) = four 2x4’s x 15-1/2” Long (4)
Cross Supports = four 2 x 4’s x 19-1/2” Long (4)
Top = one 4x8 sheet of ¾” Plywood (cut in half lengthwise) (1)
3/8 Carriage Bolts x 4-1/2” long (32)
3/8 Carriage Bolts x 2-1/4” long (32)
3/8 Nuts (64)
3/8 Washers (64)
2 lbs. #8, 2-1/2” Drywall Screws (1)
Optional Materials recommended for bench loads over 50 lbs. (Not Included)
Center Supports = four 4x4’s x 36” Long (4)
3/8 Carriage Bolts x 4-1/2” long (16)
3/8 Nuts (16)
3/8 Washers (16)
(8) Workbench Corner Brackets
Required Materials (Not Included)
Legs = four 4x4’s x 36” Long (4)
Stringers (2 top, 2 bottom) = four 2x4’s x 86” Long (4)
Side Runners (2 top, 2 bottom) = four 2x4’s x 15-1/2” Long (4)
Cross Supports = four 2 x 4’s x 19-1/2” Long (4)
Top = one 4x8 sheet of ¾” Plywood (cut in half lengthwise) (1)
3/8 Carriage Bolts x 4-1/2” long (32)
3/8 Carriage Bolts x 2-1/4” long (32)
3/8 Nuts (64)
3/8 Washers (64)
2 lbs. #8, 2-1/2” Drywall Screws (1)
Optional Materials recommended for bench loads over 50 lbs. (Not Included)
Center Supports = four 4x4’s x 36” Long (4)
3/8 Carriage Bolts x 4-1/2” long (16)
3/8 Nuts (16)
3/8 Washers (16)
Guides & Accessories
Instructions
Click here to download product instructions PDF
Safety Information
Accessories
Reviews
Rated 5 out of
5
by
Anonymous from
Day 1
Great product easy install.
Date published: 2022-04-20
Rated 5 out of
5
by
JimA from
Easy to Build
Easy to use. Instructions are clear and easy to follow. To alter the plans is also easy to do. I made a larger table with casters without problems.
Date published: 2022-04-11
Rated 5 out of
5
by
Worker Bee from
Work Table
Great brackets, exactly as advertised, accurate and well made.
Date published: 2022-04-04
Rated 5 out of
5
by
Newt from
Quality brackets
Great high quality heavy duty table brackets. Good price and shipped fast.
Date published: 2022-04-02
Rated 5 out of
5
by
Michael from
Exactly what I needed
Designed as expected and very easy to create the bench with this product
Date published: 2022-03-28
Rated 5 out of
5
by
Jason from
Shop Table Kit
Fantastic product. I really don’t have any woodworking skills, but this was too easy. Excellent price for what you get.
Date published: 2022-01-26
Rated 5 out of
5
by
Steve in Colorado from
Strong, Straight, and True
Built my table out of treated lumber - steel plates made it easy to get the top square and level. Suggest test fitting and pre-drilling all holes before assembly - easier to drill using a press or large corded drill.
Date published: 2022-01-26
Rated 5 out of
5
by
ENSS from
Shop table brackets
Incredibly beefy, it must be 3/16 steel and holes are drilled already.
Date published: 2021-11-17
Rated 5 out of
5
by
Ronald from
Work bench
It just makes it easier for me to build a work bench! I am not a carpenter!!!!!
Date published: 2021-10-25
Rated 5 out of
5
by
Simon Dog from
Built like brick shithouse
Excellent quality; bought mine before Eastwood offered pressure treated. Design is perfect for a nice lower shelf for storying heavy stuff. If you match the 4x4 lengths, getting the top and bottom shelf level is pretty much automatic
I bought mine years ago, and still enjoy the benefits of this most excellent product.
Date published: 2021-10-17
Rated 5 out of
5
by
Hounddogjake from
Work table
I’ve bought 3-4 of the and while the finished table is not cheap and it takes some effort to assemble it is still the best value for the money. With a little work it will make and outstanding work bench
Date published: 2021-07-28
Rated 5 out of
5
by
BudMan from
Thumbs up
Awesome cold rolled steal. Neighbors are jealous. Eight foot bench, middle braces out off stock :(
Date published: 2021-07-28
Rated 5 out of
5
by
Jake from
Saw table
These brackets were exactly what was needed for my saw table. The instructions say to use a 4.5" bolt and a 2.5" bolt but with the cost of material and every friggin thing else going through the roof you can use 4" & 2" bolts and cut your cost a little.
Date published: 2021-04-28
Rated 5 out of
5
by
Joe Mc from
Love them very durable
I made a see through coffee table for the fire dept .love the look of the brackets.
Date published: 2021-02-04
Rated 5 out of
5
by
Yogi1127 from
Durable Great Product
I recently bought these work bench bracket to build me a sturdy wood lathe table. I chose these bracket because i can set the dimension of my preference. Mannn, these are some heavy weight steel brackets which is good. I see why they cost extra for powder coated painted ones because aerosol paint isn't going to last no matter how well you clean them. Instruction book is easy to follow but i did my table a different way with the bottom legs area. Buying the 4x4s, 2x4s, bolts, washers, nuts and screws is easy as instruction guide you to get. I also bought six 3" caster wheels with locks to mobilize this project as well. After cutting, drilling, screwing, assembling and adding caster wheels to my table was a work out but well built and worth it. I took pix during different stages until it was complete and it felt great to have invested in these brackets. I could've bought cheaper brackets from your local hardware store but for this project i need the strength to hold my new Rikon wood lathe with the extension bed all together. If anyone looking to invest in these steel brackets for a sturdy strong table, look no further, Eastwood have what you need and it's no joke. Thanks for reading my experience of these brackets from Eastwood and enjoy my pix.
Date published: 2020-10-31
Rated 5 out of
5
by
Tony from
Will not disappoint
Bought this kit to build the ultimate end all work bench to replace smaller shop tables scattered around my basement work area. Really glad that I did. Took my time putting this together with my son, and ended up with a tank of a work bench. Included directions are easy to follow. I am going to add a few extra 2x4 stringers to support the top to get rid of any bounce when hammering. Tip: buy your hardware at your local farm supply store instead of a “big box” home improvement store. I found out the hard way that I could have saved about 50% on hardware.
Date published: 2020-08-28
Rated 5 out of
5
by
Cdawg2701 from
Work of ART !!
Bought this kit last week, I had a good idea of what it would look like but the finished product was outstanding the bench is flawless the brackets are aesthetically amazing absolutely love it can’t wait to build another
Date published: 2020-07-16
Rated 5 out of
5
by
Lloydie from
Good product, very industrial
Pleased with the product and delivery. These are heavy duty and precise. I ordered unpainted, I primed and sprayed to get the appearance I wanted. Found black powder coated bolts, washers and nuts. Great COVID quarantine project. Built the bench, drawers, and chop saw slide out shelf to fit my needs. The corner brackets were the key to success in achieving the look and functionality I wanted.
Date published: 2020-06-16
Rated 5 out of
5
by
DaveT from
Good Choice for Build-Your-Own Workbench
For my workbench I had several factors to deal with: My application backs up to a window so I needed to go vertical, to get higher than the window, which also meant I needed my pegboard tools on the two sidewalls, not the rear wall like most images of workbenches on the web. And last, for my application I needed space for bulk storage underneath. I had been searching the internet for build-your-own workbench brackets and ran across these Eastwood brackets. It was an immediate yes. I purchased them on the spot. Good quality. Thick. Heavy duty. I first had to paint the brackets (photo). I had complete confidence extending upward 8 foot high with these brackets as the support base (photo). This type of project does require strong DIY skills to build so heads up
Date published: 2020-05-30
Rated 5 out of
5
by
Sbmf66 from
My beast of a bench!
Found a 10'x 30" used butcher block for $75. With this kit and a days labor. I have a bench for my reloading and work. Now to organize and install my vice. Great product Eastwood!
Date published: 2020-05-05
Rated 5 out of
5
by
Drbabar from
Great welding project
Cleaned out the garage and built a new bench. Customized the size a little. Come out pretty well. (Would have come out better if I was a better welder)
Still need to add the shelf.
Date published: 2020-05-02
Rated 5 out of
5
by
Engineer from
Great Work Table Brackets
So I was very impressed when I found these online at Eastwood. I was looking to build a really big work table for my shop. Someone asked about where to buy carriage bolts "on the cheap" and I would say Tractor Supply or Rural King where they sell hardware by the pound. My table design has 3 layers of 3/4" plywood for the top, each layer glued and screwed. The perimeter of the plywood was hand power planed and 3/4" oak boards were screwed around the perimeter. The top and perimeter of the table were then coated with counter top laminate using rubber cement. A 45 degree router bit was used to add a chamfer to the corners of the table top. The exposed Oak boards were stained black to match the laminate.
I did use 4x4's across the bottom, because I could not locate suitable casters that would mount to the bottom of the 4x4 legs (always 1 screw hole off the edge of a 2x4). I also had to saw a notch in the top of the center supports to mate up with the upper supports (circled in red). Turned out to be a rock solid and movable work surface.
Date published: 2020-04-15
Rated 5 out of
5
by
KJP333 from
Awesome Brackets
Just received these brackets and finished building the work bench that I’ve been meaning to build for some time now. These brackets are exactly as described very strong and extra heavy duty. They also look awesome and worth the cost. I always read reviews on things I’m looking to purchase and usually read the bad reviews wanting to see what the complaints may be. I noticed in the past that some people had complained about the drilled holes not being the right size and even sent pictures showing these issues. However, the brackets I received worked perfect and looking forward to buying another set of brackets for another work bench I plan on building. Great product would definitely recommend it.
Date published: 2019-12-18
Rated 5 out of
5
by
cgpd7507 from
Very Sturdy Corner Brackets
Purchased these brackets to build my first workbench. These brackets are very thick and sturdy with no sharp edges. I chose to prime and finish the brackets myself and purchased the bare versions. Keep in mind that you must buy the bolts, lock nuts and washers separately. I chose to reverse the base legs so that I can install leveling legs on the bottom and create more storage space. My design is also different because the rear two 4x4 are cut taller so that I could install overhead shelving.
Date published: 2019-12-15
Rated 5 out of
5
by
cgpd7507 from
Very Sturdy Corner Brackets
Purchased these brackets to build my first workbench. These brackets are very thick and sturdy with no sharp edges. I chose to prime and finish the brackets myself and purchased the bare versions. Keep in mind that you must buy the bolts, lock nuts and washers separately. I chose to reverse the base legs so that I can install leveling legs on the bottom and create more storage space. My design is also different because the rear two 4x4 are cut taller so that I could install overhead shelving.
Date published: 2019-12-15
Rated 5 out of
5
by
Jack from
Excellent brackets
Heavy duty steel brackets precision cut and notched I made a nice work bench!
Date published: 2019-09-15
Rated 5 out of
5
by
Tom Cat Seven from
Very Pleased
The old table that was here when we bought the place, ten years ago, was black, very ugly, had far too many cross braces and the 4 x 8 foot, 3/16" steel top made it far too heavy for the wimpy little casters. It was time for a change.
We bought the unpainted kit and I used some quality primer and spray paint on them. We also painted our lumber before we started cutting. I am not the most precise person in the world but I must say that I am very pleased with the results. I spent the money and bought some quality stem-style casters and drilled holes up into the 4x4 legs and it rolls with ease. I still have more things and features to add on, but I am very happy with the results.
Date published: 2019-09-09
Rated 5 out of
5
by
Joe Mc from
Endless options
Firemans coffee table I made for my department!!!!
Date published: 2019-08-10
Rated 5 out of
5
by
CNelson from
Great brackets worth the money
After looking at several different work bench kits I decided to go with the Eastwood unpainted brackets and use local lumber to build. I powder coated the brackets myself and used Douglas fir from Lowe’s. The oak top is from Ikea with a plywood base beneath it. The casters flip up and down with a foot pedal. The Eastwood brackets are heavy duty and precision cut and bent. They were all identical. I’m very pleased with how well it turned out.
Date published: 2019-05-23
Rated 5 out of
5
by
Judy from
Super solid
I built my husband a bench and he loves it. Glad I got two sets so I can do another. The corner icon makes all the difference and looks fabulous. Just need to put on some stain.
Date published: 2019-05-10
Questions & Answers
would these work for a 10x12 pergola
Unfortunately we never tested these on anything except a workbench for fitment or design.
Date published: 2021-03-26
Can these be used with square metal tubing instead of wood?
Square tubing can be used with these brackets.
Date published: 2020-08-14
what’s the minimum grade of carriage bolts I should use for loads over 50lbs?thx and that is on a table 8ft long with the extra suggested bracing in the middle.thx
The carriage bolts used in the construction of a table using the 20195 Shop Table Brackets are subjected to static loading only in normal use of up to several hundred pounds and as such, standard Grade 2 bolts should be sufficient. If the anticipated table usage will subject it to occasional shock loads, or weight exceeding several hundred pounds, then Grade 5 bolts are recommended.
Date published: 2021-03-26
Can the table be assembled using all 4x4 lumber (Legs and Stringers) it appears that it should be fine.
Using 4x4 lumber will be of no problem.
Date published: 2021-09-06
Are the black version painted or powder coated ? Thanks
You are going to be looking for #Item #31493
Date published: 2021-01-05
What are the actual dimensions of the brackets?
These are 8.5" in height. The arms which stick out from the sides to center are 6" and 4" in height.
Date published: 2020-08-13
What would be the recommended length of table before center supports are required?
. 4'x4' would be a good recommended span.2'x8' would work well with a 2"x4" center support.
Date published: 2024-10-02
Are the painted brackets made of the same Domex steel as the un-painted ones?
These are made out of the same material as the non-painted sets.
Date published: 2019-10-05
I want to build bunk beds in my utility trailer with this kit. Obviously the dimensions will be a little higher and wider than a workbench. Am I missing something or does this sound feasable?
For safety reasons we would not recommend using these brackets for making a second level.
Date published: 2019-12-01
The Eastwood shop table kit indicates it is out of stock. A answer to a precious post stated you expected them to be in stock January 2019. Any updates on when they are expected?
Please add the item in question into your shopping cart. After doing so the estimated due in date will be listed in red print below the item in your cart. *Please keep in mind this is an estimated date and may be subject to change.
Date published: 2021-10-01
Any updates on when the bench brackets will be available again?...
Please add the item in question into your shopping cart. After doing so, he estimated due in date will be listed below the item in our cart in red print. Please keep in mind this is an estimated date and may be subject to change.
Date published: 2019-07-06
Are these brackets going to be available? I see both finished and unfinished are out of stock
The Unpainted Shop Table Kit is due back in on 1/17/2019
The other Shop Table Kit is due in on 07/04/2019
Date published: 2019-11-23
Are these brackets available with a polished steel finish?
Unfortunately these brackets are not available in a polished finish.
Date published: 2019-08-12
what is the length of the 4x4 and caster type
This kit only includes the brackets at the corners of the tables. You can make any length 4x4s and use any casters which work well for you.
Date published: 2019-12-14
Can I buy just the brackets?
This kit is just for the steel brackets. Once you have the brackets you get to decide the height and length of the table as you build.
Date published: 2019-09-24
could you use them to make a shelf (3 shelves) and buy the additional 4 brackets?
We unfortunately do not have the ability to break these kits up into smaller amounts of brackets.
Date published: 2018-11-15
Would this support a 40 gal aquarium weighing about 400 lbs?
Since this just the brackets for the corners the strength of the table is dependent on what you build it with.
Date published: 2018-09-10
It is great idea, but not for $120.00 for 8 pcs of steel. Are they made in USA?
Website states made in China.
Date published: 2021-04-23
Is this a corrosion resistant steel? Could they be left bare?
These come with an anti rust coating. If you would like to paint them simply clean with pre, scuff , and paint.
Date published: 2019-05-08
Is this a complete kit, with all wood pieces, or is this just the steel brackets for $99.99?
This will just be the steel brackets. You can add lumber or steel legs of your choice.
Date published: 2018-09-10
dimention of the table?
what ever you want, could be one x six, or four x eight; my frame is 24" wide x 60" long x 48" high, with a 36" x 72" x1" thick plywood top....works good, and worth the money. You try cutting, bending and drilling 8 pieces of 3/16 steel plate yourself without a shop (or a work bench)! my time is worth more than that. All in all it works
Date published: 2021-05-09
Can you please advise the hole sizes?
The holes are 1/2" square.
Date published: 2019-02-03
Can the brackets be used with 4 x 4 lumber for legs and 2 x 6 lumber for cross members?
Yes, the brackets are designed for use with 4x4s as legs, and 2x4s as cross supports, but 2x6s may be used if you'd like.
Date published: 2018-07-31
Can you use 6x6 legs and cross members?
We found other products you might like!
Eastwood Shop Table Kit Unpainted Bare Steel
$139.99
In Stock
