Details

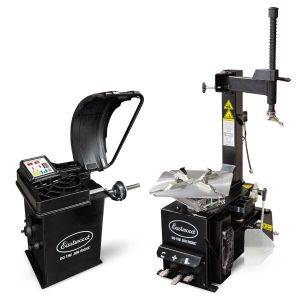

Eastwood Swing Arm Tire Changer
The Eastwood Tire Changer offers the ability to quickly and easily mount and dismount tires on most any steel or alloy wheels without damage. Constructed with the same pneumatic functions as other professional machines, this Tire Machine is ideal for the avid home hobbyist, race shop or small business.
Eastwood Electronic Wheel Balancer
The Eastwood Electronic Wheel Balancer brings the convenience and economy of a professional, high precision tire and wheel Balancer to the well-equipped DIY or race shop. Allows quick balancing and guidance for applying clip-on or stick-on weights to a variety of wheel types, sizes and materials.
Contents
Eastwood Swing Arm Tire Changer
(1) Main Tire Machine Base Unit(1) Vertical Tower
(4) M12 Nuts
(4) M12 Washers
(1) Slide Shaft Spring
(1) Plastic Cover
(20) Mount/Dismount Shoe “Duckhead” Replaceable Plastic Glides
(20) Mount/Dismount Shoe “Ducktail” Replaceable Plastic Glides
(1) Coiled Air Hose
(1) Gauge/Fill Gun
(1) 1/4” MNPT, Male Coupler
(1) Tire Iron
(4) Rim Protectors
Eastwood Electronic Wheel Balancer
(2) Guard Halves(1) Tubular Steel Guard Frame
(4) M6 x 25 Bolts
(4) M6 Nuts
(2) Phillips Head Screws
(1) M10 x 45mm Bolt
(1) M10 Nut
(1) Main Drive Spindle
(1) M10 x 125 Socket Head Cap Screw
(1) 3 piece Tool Kit: 8mm & 5mm Hex Keys and a 10mm Flat Wrench
(3) Accessory Storage Posts
(3) Accessory Storage Post Protective Rings
(4) Spindle Hub Cones; 2”, 2.5” 3” & 4”
(1) Quick-Release Hub Wing Lock
(1) Balance Weight Pliers
(1) 100 gram Red Calibration Weight
(1) Wheel Width/Diameter Caliper
(1) Main Balancer Unit
Specifications
Eastwood Swing Arm Tire Changer
Rim Diameter Range:
– External Clamping: 10” to 18”
– Internal Clamping: 12” to 21”
Maximum Rim Width: 16”
Maximum Tire Diameter: 45”
Turntable Rotation Speed: 6 RPM
Power Requirements: 120 VAC, 60hz
Air Supply Operational Range: 115 to 145 PSI [8 to 10 Bar]
This machine has a tire inflator only. Bead seating jets are not included on this model.
Eastwood Electronic Wheel Balancer
Rim Diameter Range: 10” to 24”
Rim Width Range: 1.5” to 20”
Maximum Tire Diameter : 34” [864mm]
Rotating Speed: 200 RPM
Measurement Cycle Time: 8 Seconds
Maximum Out of Balance Range: 0.25 to 35 Oz. [1 to 999 Grams]
Power Requirements: 120 VAC, 60hz.
Safety
Always read and fully understand the instruction manual before operating this unit. Always wear proper personal safety equipment while operating this unit.
Click here to see safety products
Shipping Instructions
Tire Changer Ships via Freight, There is a Flat Rate Shipping Charge of $227.32
Wheel Balancer Ships via Freight, There is a Flat Rate Shipping Charge of $172.70
Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.
Eastwood Offers Free Lifetime Technical Support
