Item #
31638
BRAND: Eastwood

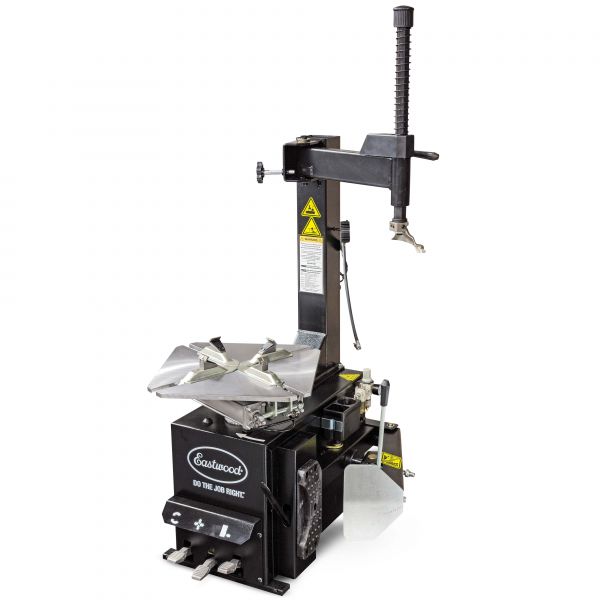

Eastwood Swing Arm Tire Changer
Eastwood Swing Arm Tire Changer
Eastwood Swing Arm Tire Changer
Eastwood Swing Arm Tire Changer is rated
out of
5 by
11.
Eastwood Swing Arm Tire Changer
1 year Warranty Included
Add an Eastwood Service Plan for additional protection?
Learn More
The Eastwood Service Plan
Protect your purchase with comprehensive coverage
24/7 support
No deductibles, no additional fees
Parts & labor costs included
Transferable coverage and more
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
The Eastwood Tire Changer offers the ability to quickly and easily mount and dismount tires on most any steel or alloy wheels without damage. Constructed with the same pneumatic functions as other professional machines, this Tire Machine is ideal for the avid home hobbyist, race shop or small business.
Warranty
Specifications
– External Clamping: 10” to 18”
– Internal Clamping: 12” to 21”
Maximum Rim Width: 16”
Maximum Tire Diameter: 45”
Turntable Rotation Speed: 6 RPM
Power Requirements: 120 VAC, 60hz
Air Supply Operational Range: 115 to 145 PSI [8 to 10 Bar
Tire Changer Overall Usable Footprint dimensions are 70”H x 43”W x 37”D]
This machine has a tire inflator only. Bead seating jets are not included on this model.
Shipping & Handling
Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.
In the Box
Contents
(1) Vertical Tower
(4) M12 Nuts
(4) M12 Washers
(1) Slide Shaft Spring
(1) Plastic Cover
(20) Mount/Dismount Shoe “Duckhead” Replaceable Plastic Glides
(20) Mount/Dismount Shoe “Ducktail” Replaceable Plastic Glides
(1) Coiled Air Hose
(1) Gauge/Fill Gun
(1) 1/4” MNPT, Male Coupler
(1) Tire Iron
(4) Rim Protectors
Guides & Accessories
Instructions
Click here to download product instructions PDF
Safety Information
Click here to see safety products
Accessories
31810 Eastwood Tire Machine Replacement Duck Head Feet Produced Before 03/2017 (White)
Application Tips
Reviews
Rated 1 out of
5
by
Andrew from
Very disappointed because of the incorrect advertisement said 45inch
Doesnt fit even 35 inch tires it says its good for 45 ?
Date published: 2021-10-20
Questions & Answers
Where is it made
This unit is made over seas in China on our lines
Date published: 2022-05-27
How much does the tire changer weigh?
This weighs about 432 lbs. in total.
Date published: 2022-08-21
Will this tire changer change motorcycle tires?
No, this unit will not be able to grip correctly for you to service motorcycle tires.
Date published: 2021-11-09
Can you change 20 inch tires
Rim Diameter Range:
– External Clamping: 10” to 18”
– Internal Clamping: 12” to 21”
Maximum Rim Width: 16”
Maximum Tire Diameter: 45”
Date published: 2024-06-23
What is the height of this machine? Trying to put it on a bus.
This is 70" in total height.
Date published: 2021-09-15
Can I order the bead blaster kit for this machine
Here is a link to this item on our website https://www.eastwood.com/eastwood-tire-bead-seating-tank.html
Date published: 2022-09-15
Does this machine have a built in bead blaster? Or can it be upgraded to have one?
This machine has a tire inflator only. Bead seating jets are not included on this model. This arrives as is and we do not have ways to modify them before being sent. We apologize for the confusion.
Date published: 2021-06-21
Will the machine do wire wheels?
This machine is capable of doing wire wheels as long as they meet the dimension specifications.
Date published: 2021-03-23
What are the overall dimensions of this unit?
Tire Changer Overall Usable Footprint dimensions are 70”H x 43”W x 37”D
Date published: 2021-03-23
Will this machine change a C7 ZO6 Tire? It's a 20x12 inch wide wheel
Here are the specs, so it appears that that rim will fit, based on the 21" internal clamping.
Rim Diameter Range:
– External Clamping: 10” to 18”
– Internal Clamping: 12” to 21”
Maximum Rim Width: 16”
Date published: 2023-09-25
Do you sell replacement parts for this machine?
Yes. Please call our Technical support team at 800-343-9353 and hit option 3. We will need the order number in reference to this purchase and serial number on this machine
Date published: 2022-02-24
Is there a plastic or nylon shoe available for this to avoid damage or scratches to wheel?
We personally do not sell any shoes for this item. We apologize for the inconvenience.
Date published: 2023-09-25
What are bead setting jets?
A tire changer's bead blaster system or jets would deliver a large volume of high pressure air into the interior cavity of a tubeless tire in order to help seat the “beads” of the tire to the wheel assembly.
Date published: 2021-09-21
What is the limit of what wheel sizes this will work on? As in, minimum wheel size to maximum wheel size.
max and min diameter is 10-18 with external clamping. 12-21 with internal clamping. The rim width is widest at 16 inch. This can do a very narrow wheel if needed but we don't have that spec. I would say 2-3 inch min on the width. Max tire size is 45" diameter.
Date published: 2021-03-16
Can the tire changer withstand below freezing temperatures? Is a consistently heated shop required?
Most compressors will have moisture going through them which would cause the lines to freeze, if you have complete dry air going through your lines it would work.
Date published: 2021-04-02
I will like to no if you ship to Puerto Rico.
We do ship to Puerto Rico.
Date published: 2021-04-12
I was wondering if American or Canadian price?
All pricing listed is in USD.
Date published: 2021-03-16
Will this machine change motorcycle tires
This machine will not grip correctly for you to service motorcycle tires.
Date published: 2021-03-16
Can this item be picked up in person to save on shipping cost ?
These can be certainly be shipped to one of our 3 Retail locations.
Date published: 2023-11-13
Are there any accessory attachments available for this unit, to be able to do different size wheels?
We do not have any accessories to allow this machine to work larger tires.
Date published: 2021-03-16
Are there any adaptors to do 8 inch golf cart wheels ?
