Eastwood XL View Auto Darkening Welding Helmet - XL9300
2 year Warranty Included
Add an Eastwood Service Plan for additional protection?
Learn More
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Product Overview:
Description

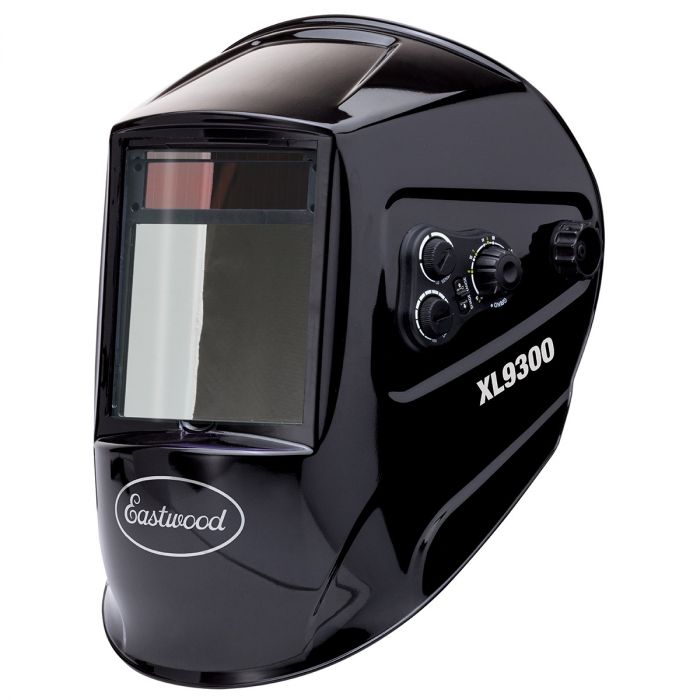

Eastwood XL9300 Welding Helmet
Enjoy great protection and visibility as you weld with the Eastwood Auto XL Welding Helmet. The most important aspect of an Eastwood welding helmet is that it protects your eyes from intense light and scorching hot materials. Our headgear does just that with an impact-resistant nylon shade and variable shade lens that automatically darkens to the right level. It’s incredibly strong yet comfortable enough to wear for hours at a time. We’ve given this model an extra-large viewing window so you can see the entirety of large welds. True Color Technology makes the image you see much more realistic, further improving weld quality.
Eastwood welding helmets also have manual adjustment options to Do the Job Right. There’s a manual dimming option on the main viewing area, a Grind mode for reshaping tungsten and a multiway adjustable headband. The helmet is also compatible with magnifying lenses. We provide a 2-year warranty on our large-view welding helmet plus free lifetime tech support. Watch our video to learn more about how Eastwood helps you Do the Job Right and do it safely.
This Helmet Features:
- Durable and lightweight.
- Impact-resistant nylon.
- Multi-adjustable head band.
- Variable No. 4 to No. 13 shade.
- Extra-large viewing area.
- Grind feature.
- Optical clarity 1/1/1/2.
- Magnifying lens compatible.
Grind mode allows you to quickly reshape tungstens, grind spot welds and more, without having to remove the helmet. An extra-large 3.9-by-3.6-inch view area assures accurate MIG or TIG welding without neck strain, and adjustable head gear eliminates fatigue. It includes a replaceable Li Mn battery with arc charging for up to three years usage. It has earned CE, ANSI and RoHs certifications.
Find out for yourself how well this helmet improves your welding. Contact our staff today, and we can tell you how this helmet is perfect for a variety of welding and plasma arc cutting.

True Color Technology
The True Color Technology allows a realistic color perception so you have a much clearer view of what you are welding.


Comfortable Head Gear
This welding helmet has a 5 way adjustable headgear with sweat band for the perfect fit and comfort while welding. It will comfortably fit a head circumference between 21.6” – 24.8”.
External Shade Controls
This Eastwood Auto Darkening Welding Helmet has infinitely adjustable sensitivity delay and shade adjustment. The main viewing area can be dimmed from shade 4 to 13, with Grind feature. Grind mode allows you to quickly reshape tungsten, grind spot welds and more without having to the remove the helmet.

Warranty
Specifications
Color: | Gloss Black |
Cartridge Size: | 4.5in. x 5.25in. (114mm x 133mm) |
View Window Size: | 3.9in. x 3.6in. (100mm x 93mm) |
Optical Clarity: | 1/1/1/2 |
Magnifying Lens Compatible: | (Plate size: 2" x 4.25") |
Number of Sensors: | 4 |
Shade Control: | Outside and step-less |
Variable Welding Shades: | Light state: DIN 4, Dark state DIN 5-9/9-13 with Grind |
Sensitivity control: | Variable Shade, Delay and Light sensitivity |
Power: | Replaceable Li-Mn & Solar Combination with arc charging for up to 3 years usage |
Light to Dark Switch Time: | 1/25000 sec. |
Delay Control (dark to light): | 0.15 sec. min. -0.8 sec.max |
TIG capability: | >2 amps |
Certification: | CE, ANSI, RoHS |
Operating Temp: | 23-131 deg. F (-5-55 deg. C) |
Weight: | 1.09lbs. (495g) |
Replacement Batteries: | (2) CR2032 |
Replacement Inside Lens: | 20231 |
Replacement Outside Lens: | 20230 |
In the Box
Contents
- Welding Helmet
- Outer Replacement Lens
- Inner Replacement Lens
Guides & Accessories
Instructions
Click here to download product instructions PDF
Safety Information
Click here to see safety products
Accessories
Application Tips

Magnifying Lens Compatible
This helmet is compatible with a 2” x 4.25” plate size magnifying lens.
Uses easily replaceable CR2032 batteries for power and has a low battery indicator to let you know when replacement is needed.

Reviews
Questions & Answers
It says this helmet is compatible with a 2” x 4.25” plate size magnifying lens. Do you sell this lens, I can't find them on this site? Thank you.
is it light weight?
I have a couple of questions before I purchase this welding helmet. Is the headgear good quality? Is it a narrow or wide helmet?
What’s the part number for the auto dimming lenses on this helmet?
I have an enormous melon for a head. How big does the helmet adjust?
What is the ANSI certification codes for your Eastwood auto darkening XL9300 welding helmet
How much does the hood actually weigh? Thank you
I love this helmet but my sensor is starting to go, could i buy a replacement or would i have to get a new helmet?
