Item # 20637 BRAND: Eastwood

English Wheel Forming Band

Form metal quicker and with more control
Form metal quicker and with more control
English Wheel Forming Band is rated 4.7 out of 5 by 24.
  • y_2024, m_3, d_2, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_11, tr_13
  • loc_en_US, sid_20637, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 64.44ms
  • REVIEWS, PRODUCT
$19.99
Loading...
Save for Later
Form metal quicker and with more control

90 day Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support

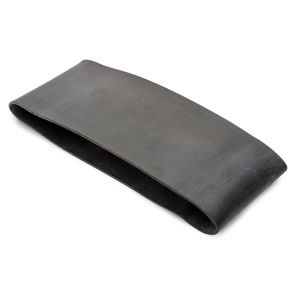

English Wheel Forming Band

Product Overview:

Description

This forming band enables you to form metal quicker and have more control of your Eastwood English Wheel.

  • 3” wide x 0.063 thick, high-density EPDM rubber
  • Fits Eastwood and all other 2” x 8” Upper Wheels

The EPDM material transfers energy across the work surface under light pressure which enables more material forming per pass. The band is an inexpensive add-on to take your English Wheel to the next level.

Warranty

90 Day Warranty Made In USA

In the Box

Contents

One 3 Inch wide forming band

Guides & Accessories

Instructions

To install the Forming Band on an Eastwood Knock Down English Wheel (item # 14156):
1 Remove one snap Ring from either side of the Upper Wheel axle.
2 Using a punch or drift press the axle into wheel as if you were uninstalling it.
3. Once the internal washer is free from the axle, remove the punch and washer.
4. Feed forming band through the space created between the wheel and upper yoke
5. Re install washer, axle and snap ring.

Safety Information

Always wear eye and hand protection when using an English wheel.

Reviews

Rated 5 out of 5 by from Aircraft restoration The English wheel forming band works great. Makes compound curved panels easier.
Date published: 2024-01-13
Rated 5 out of 5 by from Quality piece Great customer service. Installed on my wheel, obviousy good quaiity, looking forward to using it on my quarter panel forming project.
Date published: 2022-05-12
Rated 5 out of 5 by from English Wheel Forming Band This is a necessary piece for forming curves with an English wheel. The rubber can be nicked along the edge which could start it to tear slowly over time. If you are going to use it often buy several . the rubber is smooth and even, easy to stretch onto the wheel.
Date published: 2021-07-27
Rated 5 out of 5 by from Fits and works perfectly I wanted this to use on my HF wheel and it fits like a glove...perfect, no seams, and works as it should.
Date published: 2021-06-17
Rated 5 out of 5 by from EASY TO INSTALL AND USE Good price. Packaged very well. Arrived quickly. I played with it the other day, very nice and easy to use.
Date published: 2021-06-05
Rated 5 out of 5 by from Addtional tool Made the wheel more versatile for shaping and better control
Date published: 2019-01-22
Rated 5 out of 5 by from Magic rubber band This is a great addition to any english wheel. Allows you to bend the metal in a single direction, easy to install and great control added when you get the hand of it. My english wheel will never be without a forming band (I got a second one since they can get damage over time).
Date published: 2018-09-25
Rated 5 out of 5 by from Great features,easy to use Easy to install,worked as it should even though I dont have an Eastwood English Wheel,Makes working metal faster.
Date published: 2018-06-21
  • y_2024, m_3, d_2, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_11, tr_13
  • loc_en_US, sid_20637, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.9ms
  • REVIEWS, PRODUCT

Questions & Answers

Will it or do you have one to fit a 6 inch wheel

Asked by: Silver back
This is only designed to fit our 8 inch wheel. We do not have any smaller bands.
Answered by: Scott C
Date published: 2019-07-05
  • y_2024, m_3, d_2, h_8CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_1
  • loc_en_US, sid_20637, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 28.49ms
  • QUESTIONS, PRODUCT
