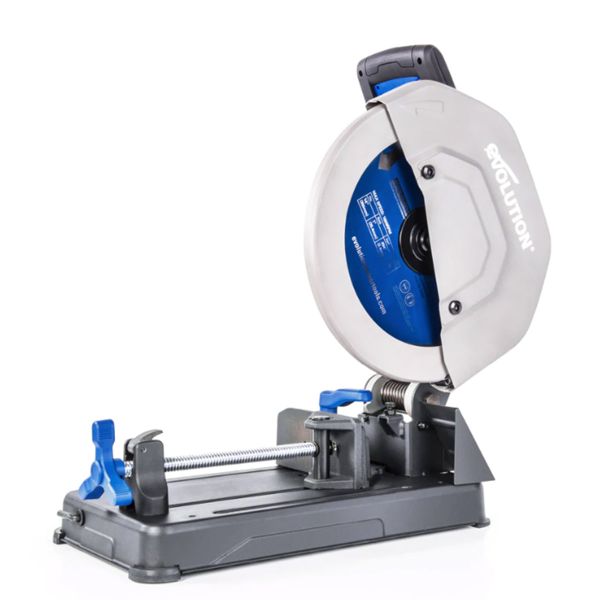

Evolution 14 Inch Steel Cutting Chop Saw

Product Overview:

Description

Evolution 14” / 355mm Chop Saw – S355CPS

No Heat. No Burrs. Virtually No Sparks.

  • Heavy-duty cast aluminum base with integrated wear plate & bench mounting holes.
  • Quick-release vice with robust square-threaded rod for fast & secure clamping.
  • Advanced performance; out performs normal cutting saws
  • Accurate & durable cast steel vice with 0° - 45° miter capacity & locking pin.
  • Compact design with a head lock down pin & carry handle for easy transportation.
  • Chip collection tray for a cleaner, safer working environment.
  • Ergonomic, ambidextrous trigger with comfortable textured grip.
  • Attachable ‘v’ shape block included for secure clamping of round & square tube.
  • Easy blade change with integrated tool storage.
  • Warranty

    3 Year Manufactures Warranty

    Specifications

  • Motor (110V 50Hz): 1600W
  • Motor (240V 50Hz): 2200W
  • Speed No Load: 1500 min-1
  • Max. Bevel (Left): 45 degrees
  • Cable Length: 3m
  • Blade Dia.: 355mm
  • No. of Teeth: 66
  • Bore: 25.4mm
  • Kerf: 6mm
  • Mild Steel Plate (Max. Thickness): 6mm
  • Stainless Steel Plate (Max. Wall Thickness): 5mm
  • Square Steel Tube 90° (Mild Steel): 120 x 120mm
  • Square Steel Tube 45° (Mild Steel): 89 x 89mm
  • Rectangle Tube 90° (Mild Steel): 95 x 180mm
  • Rectangle Tube 45° (Mild Steel): 78 x 110mm
  • Round Tube 90° (Mild Steel): 130mm
  • Round Tube 45° (Mild Steel): 105mm
  • Minimum Cut Off Piece Length: 8mm
  • Product Dimensions: 410 x 530 x 310mm
  • Packaging Dimensions: 470 x 575 x 374mm
  • Product Weight: 23.1kg
  • Sound Pressure Level LPA: 94.9 dB(A). K: 3 dB(A)
  • Sound Power Level LWA: 107.9 dB(A). K: 3 dB(A)
  • Shipping & Handling

    Ships via UPS

    In the Box

    Guides & Accessories

    Instructions

    Click here for product support documents.

    Safety Information

    Please read and fully understand the manufactures instruction manual before using this tool

    Consumables

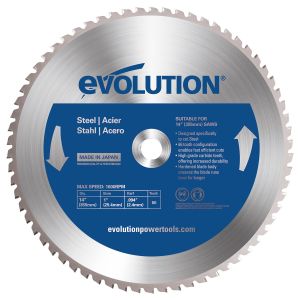

    Blade item 21988

    Reviews

    • bvseo_sdk, p_sdk, 3.2.1
    • CLOUD, getReviews, 3.65ms
    • REVIEWS, PRODUCT
    • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

    Questions & Answers

    Is the blade included in the price of the saw?

    Asked by: b121
    Blade Item #21988 Evolution 14” / 355mm Chop Saw – S355CPS No Heat. No Burrs. Virtually No Sparks. Heavy-duty cast aluminum base with integrated wear plate & bench mounting holes. Quick-release vice with robust square-threaded rod for fast & secure clamping. Advanced performance; out performs normal cutting saws Accurate & durable cast steel vice with 0° - 45° miter capacity & locking pin. Compact design with a head lock down pin & carry handle for easy transportation. Chip collection tray for a cleaner, safer working environment. Ergonomic, ambidextrous trigger with comfortable textured grip. Attachable ‘v’ shape block included for secure clamping of round & square tube. Easy blade change with integrated tool storage. Warranty 3 Year Manufactures Warranty Specifications Motor (110V 50Hz): 1600W Motor (240V 50Hz): 2200W Speed No Load: 1500 min-1 Max. Bevel (Left): 45 degrees Cable Length: 3m Blade Dia.: 355mm No. of Teeth: 66 Bore: 25.4mm Kerf: 6mm Mild Steel Plate (Max. Thickness): 6mm Stainless Steel Plate (Max. Wall Thickness): 5mm Square Steel Tube 90° (Mild Steel): 120 x 120mm Square Steel Tube 45° (Mild Steel): 89 x 89mm Rectangle Tube 90° (Mild Steel): 95 x 180mm Rectangle Tube 45° (Mild Steel): 78 x 110mm Round Tube 90° (Mild Steel): 130mm Round Tube 45° (Mild Steel): 105mm Minimum Cut Off Piece Length: 8mm Product Dimensions: 410 x 530 x 310mm Packaging Dimensions: 470 x 575 x 374mm Product Weight: 23.1kg Sound Pressure Level LPA: 94.9 dB(A). K: 3 dB(A) Sound Power Level LWA: 107.9 dB(A). K: 3 dB(A)
    Answered by: Anonymous
    Date published: 2023-09-10

    Where is the saw made?, Where is it assembled

    Asked by: Red Horse
    This is made overseas in China.
    Answered by: Kelly H
    Date published: 2022-07-12

    Dose this item have a cast aluminum base like mentioned or is it stamped steel? Is the manufacture model number actually S355CPS or S355CPSL?

    Asked by: Farley Fab
    This unit is the S355CPS saw and has a cast aluminum base.
    Answered by: ZachC
    Date published: 2021-08-19
