Item # 15334 BRAND: Eastwood

Eastwood 5-Stage Turbine Painting System - Powered by Apollo

Professional quality all-in-one HVLP turbine spray system specially developed for automotive refinishing
Professional quality all-in-one HVLP turbine spray system specially developed for automotive refinishing
Eastwood 5 Stage 9.5PSI HVLP Turbine Paint System wth Gun is rated 4.3 out of 5 by 8.
  • y_2024, m_2, d_25, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_7
  • loc_en_US, sid_15334, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 21.25ms
  • REVIEWS, PRODUCT
$1,574.99
Loading...
Loading...
Save for Later
Professional quality all-in-one HVLP turbine spray system specially developed for automotive refinishing

2 year Warranty Included

Add an Eastwood Service Plan for additional protection?

Learn More
The Eastwood Service Plan Protect your purchase with comprehensive coverage 24/7 support No deductibles, no additional fees Parts & labor costs included Transferable coverage and more

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
Eastwood 5-Stage Turbine Painting System - Powered by Apollo

Product Overview:

Description

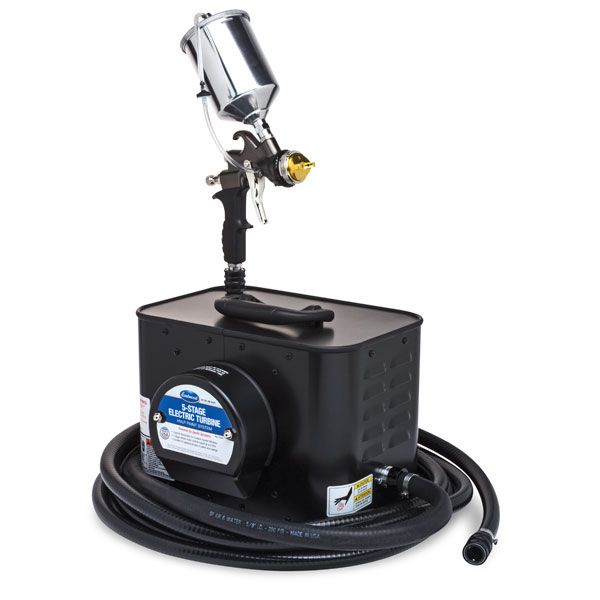

Professional quality all-in-one electric HVLP turbine spray system specially developed for automotive refinishing.

  • Professional paint results with no compressor
  • Compact, portable & easy to use
  • Quiet 5 stage turbine motor, 9.5 psi @ 130 cfm
  • Lightweight aluminum HVLP gun
  • Gravity Fed, consistent atomization and transfer efficiency
  • 24 foot hose with 3 foot neoprene whip hose
  • Full tech support, parts & accessories available
  • Made in USA with 2 year warranty

This Eastwood exclusive turbine spray painting system by Apollo features a professional-quality 5 stage turbine that operates at 9.5psi @ 130 cfm, designed to be quiet and deliver consistent dry air. Its compact size and included storage for the gun and 27 foot hose make it easy to paint anywhere you have 110v electricity. Includes a lightweight, solid aluminum high volume, low pressure gravity feed spray gun with outer ring fan control. A full line of fluid nozzle sizes are available, as well as accessories and replacement parts. This quality unit is made in the USA, with no O-rings to fail, and comes with a full 2 year warranty.

Warranty

2 Year

In the Box

Contents

Includes:

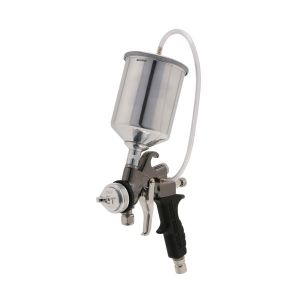

  • (1) Model 7500 HVLP Gravity Fed Paint Gun with 0.8mm Needle/Nozzle set installed.
  • (1) 27 feet x 3/4 inch Air Supply Hose
  • (1) Air Feed Tube with Check Valve
  • (1) 600ml Paint Cup
  • (1) 6 foot, 14 Ga. power cord
  • (1) Air Feed Fitting
  • (1) 120 V/AC, 15 Amp, double insulated 5 stage Turbine unit (1) Cleaning Brush
  • (1) Replacement Check Valve
  • (1) Paint Gun Lube & Wrench

Guides & Accessories

Instructions

Safety Information

Always wear eye, skin and respiratory protection when painting. Always use in a well ventilated area away from open flame. Follow manufacturers instructions before using.

Accessories

Application Tips

Compact, Portable & Easy To Use

Reviews

Rated 5 out of 5 by from DIYers - get this tool - worth the value! First and foremost, I am not a professional painter or auto technician. Just a hobbyist working on a ‘74 Chevy Project Truck and everything I've learned about painting and prep has been learned from Eastwood videos (thanks, they are awesome). After months of evaluating this system and other, more expensive systems, I finally shelled out the $$$$ to get this fantastic system. And I am very satisfied with it's quality. I also purchased 4 needles, for all others kinds if materials this system can throw down. I've only started the paint project: prepared surfaces, epoxy primer, urethane primer...and soon to paint. After a few tries of using ‘water color’ to test system (spray pattern, air flow and develop my technique) I was set to spray urethane primer. It went down well, and only had what I think are two user errors/problems: 1) I'd develop a drip once in a while, that would require me to whip the gun nozzle and clean it with pre-paint spray in order for it to spray properly again. I'm thinking urethane primer was too heavy (used 1.8 noodle, as recommended), and this is normal when using turbine sprayers with high build primer. 2) The paint canister lid would leak out primer. The requires a lot of pressure to seal properly, recommend cleaning with each fill up. I may try to find a better gasket seal, rather than the one that came installed. Finally, the gun. Very good value. Easy to adjust and easier to disassemble and clean up. Only a few parts, and intuitive how to reassemble. I'd suggest buying a few cans of aerosol cleaner when purchasing gun. I used about half a can and 2 oz of acetone. I'd also buy a separate stand so you fill your gun - while not on turbine stand. I've seen a lot of videos of guys doing that online. I'd hate to think what would happen, if fluid spilled inside system. Get this powerful system DIYers - you won't be disappointed. Highly recommend this system. Powerful and ideal for the DIY folks! Can't wait to throw down paint and clear coat.
Date published: 2021-11-24
Rated 5 out of 5 by from Great investment I have used both compressed air for spraying as well as turbine units. I have owned many different brands including Apollo. This one intrigued me because of the price, reputation of Apollo and the fact that it was a gravity feed gun. I never liked using turbine systems with bottom feed cups for 2 reasons. The cup is always in the way and the hoses from other brands are really bulky and heavy. Apollo hose is so light weight and with the gravity feed gun, it feels like I am spraying with a conventional system. The is so much less over spray compared to using an HVLP compressed air gun. I sprayed with my turbine and then switched to an HVLP compressed air gun and you could see the difference. I feel like the turbine lays a better finish as well. Less bounce back and more transfer efficiency. I also don't have to worry about moisture and oil in my lines. I have been in the furniture business for over 40 years and I am starting a new adventure. This will work fine for that. I also am a drummer and started to refinish a drum set using this system. Working on clear coat now.
Date published: 2019-10-22
Rated 5 out of 5 by from mother of GOD so I bought this gun for Liquid Wrap use, not paint. and I have to say that I am beyond blown away with how this gun is performing. I have been using it for just over a month now and the ease of use is phenomenal. I have 0 background in any painting aspects other than using a rattle can, and I can produce need professional finishes with the Apollo.
Date published: 2015-12-08
Rated 5 out of 5 by from best kept secret this is the best spray system I've ever usedI own 3 Iwata spray guns costing up to $700 and a few sata I'm not sure why everybody doesn't own one I really can't believe what a perfect job this machine does or maybe it's just me
Date published: 2015-01-16
Rated 4 out of 5 by from 5 stage turbine Great concept, and execution, sprays well. Leaks out of paint tank when spraying down.
Date published: 2023-03-16
Rated 4 out of 5 by from 5 stage 9.5 psi hvlp system. So far so good. Took about two weeks to recieve it because it comes from the manufacturer and not eastwood directly. For the price i paid i would have hoped for a little more in the kit like maybe a couple different needle sizes for shooting different material. I did use it for a metallic 2 stage and it layed my clear coat nicely but admittedly i sprayed on a miserably hot and humid day in my garage and the paint itself mottled and layed very dry. (My amateur mistake im sure). Took a couple trys to get it to look better. Much less overspray than compressed air though. Will be shooting again soon now that the weather has cooled and am hoping for much better results. Orange peel was at a minimum.
Date published: 2021-09-09
Rated 1 out of 5 by from Dont waste your money, If I could give 0 stars I would because of service I purchased a few months before I was going to use just to be prepared, when I was finally ready to use I came to discover that the gun got so hot it was very uncomfortable to hold. i contacted Eastwood and they said they would be glad to get it fixed... then after not hearing anything and many emails later I discovered that Eastwood does NOT handle the repairs or exchanges and put me in contact with Apollo... several more weeks of phone calls and emails later I was told that it runs hot because I live in Arizona and that it was where I lives fault. Not being satisfied I contacted Eastwood again... now remember this is months into trying to get it repaired because I wanted it to work ... So Eastwood customer service gets back involved and at this point I am done with the run around and poor customer support and service so I requested a refund... It was agreed that Apollo would take system back and I thought all was right ..until it showed back up at my house with a email saying it had some paint on the hose and they couldn't resell so they would not accept return. yes there was some primer on the hose from when I was first trying to use. so now many more weeks go by and come to find out Eastwood does not back up the products they sell if it comes from a 3rd party...which as you see most of the products they sell are rebranded items... I paid Eastwood ..not Apollo and Eastwood should stand behind the products they offer. by the way the end result is I own a 1500 buck paperweight at was told to bad here is a 200 dollor credit to go away....what a joke of a product and support.
Date published: 2023-11-14
  • y_2024, m_2, d_25, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_7
  • loc_en_US, sid_15334, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.94ms
  • REVIEWS, PRODUCT

Questions & Answers

Do you sell a 3m pps kit for this? If so what is the part#. Thanks

Asked by: Johnny5
N/A
Answered by: GeneB
Date published: 2023-09-21

This product had the ability to spray out of a larger pot years ago. Is this still available?

Asked by: Pete72
Not that I'm aware of.
Answered by: GeneB
Date published: 2023-09-21

Can I use this to spray gelcoat into a fiberglass mold? If so, what size tip is recommended?

Asked by: John
Depending on the gelcoat. if consistency is the same a single stage 1.3- 1.4, if thicher like primer 1.8
Answered by: GeneB
Date published: 2023-09-20

I contacted Apollo in CA and they told me your kit comes with the 7700-600 gun but your add indicates at 7500 gun. Which is correct and what is the difference?

Asked by: AlDuke
Ours is a 7500 the difference is the needle size which will not produce a sizable difference Contents Includes: (1) Model 7500 HVLP Gravity Fed Paint Gun with 0.8mm Needle/Nozzle set installed. (1) 27 feet x 3/4 inch Air Supply Hose (1) Air Feed Tube with Check Valve (1) 600ml Paint Cup (1) 6 foot, 14 Ga. power cord (1) Air Feed Fitting (1) 120 V/AC, 15 Amp, double insulated 5 stage Turbine unit (1) Cleaning Brush (1) Replacement Check Valve (1) Paint Gun Lube & Wrench
Answered by: GeneB
Date published: 2023-03-24

Can you run the hose through a cooler filled with ice to lower the air temp at the spray gun? Are there problems with the paint drying before it hits the surface to be painted due to warm air being spayed?

Asked by: mike29
using the appropriate temperature activators in the correct climate ease any fear of dry spray . you could try cooling the lines but its not needed
Answered by: Jay N
Date published: 2022-06-07

Does this system, have a pps system for the spray gun.

Asked by: J__J
You would have to purchase the 3m system nd adapter separate. You would need the #18 3m PPS adapter for use with this turbine system's paint gun.
Answered by: Kelly H
Date published: 2022-05-17

Will this gun spray epoxy printer and Raptor bedliner?

Asked by: Danbo
Will the bedliner gun connect to this unit?
Answered by: Danbo
Date published: 2022-09-25

What needle and cap is needed for each of the different types base clear and primer

Asked by: Indianoutlaw
We apologize for the confusion. This can be founded in the instructions linked on the product page on pg4.Here is a link to these instructions as well: https://www.eastwood.com/images/pdf/15334Q_inst.pdf
Answered by: Kelly H
Date published: 2022-02-09
  • y_2024, m_2, d_26, h_11CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_76
  • loc_en_US, sid_15334, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 12.16ms
  • QUESTIONS, PRODUCT
Glossary
Unsure of a term? Look it up on our Glossary powered by The Garage
Eastwood 5-Stage Turbine Painting System - Powered by Apollo
$1,574.99
In Stock
