FiTech Go Street EFI System Master Kit w/Inline Fuel Pump 31003

Product Overview:

Description

The Go Street EFI combined with the Inline Fuel Pump Fuel Delivery Kit is a ready-to-run system that strays away from the programmable features and sticks to the basic functions necessary to get the best performance and economy out of your street and mild performance engine. FiTech once again allows you to ditch that old carburetor and advance into the EFI world at the most affordable price on the planet! Leave it to the experts in affordable EFI, we are always looking for ways to save our customers money while delivering the BEST performance possible!

This Fuel Injection System Features:

  • 1 BAR internal MAP sensor
  • (4) Flow matched injectors
  • Built-in pressure regulator
  • Suitable for up to 400 HP
  • (1) Fan control & AC Input
  • Attractive cast finish
  • Inline Fuel Pump Fuel Delivery Kit

The Inline Fuel Pump Fuel Delivery Kit includes an EFI grade 255 L/PH inline external fuel pump that is suitable for engines making up to 600HP. (Note that some of our EFI kits are limited to less than 750HP due to maximum usable injector sizes). This kit also includes 20-feet of EFI grade fuel hose suitable for both the inlet and return lines between the fuel tank and the engine. The kit includes two billet fuel filters. The filters include a 100-micron pre-filter and a 30-micron post filter.

Not legal for use on pollution controlled vehicles. This system is designed to be installed into vehicles that do not require emission controls.

Select The Right Fuel Injection System For Your Project

FITECH FEATURE COMPARISON CHART FOR THROTTLE BODY EFI SYSTEMS CLICK HERE

BRAND COMPARISON CHART FOR THROTTLE BODY EFI SYSTEMS CLICK HERE

Specifications

• Application: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, Etc. engines making 150 HP up to 400 HP with a 4-barrel intake manifold.
• Replacement for any 4-barrel carburetors for engines with 150 HP up to 400 HP.
• Use the same size air cleaner you would normally use for your 4-barrel carburetor.

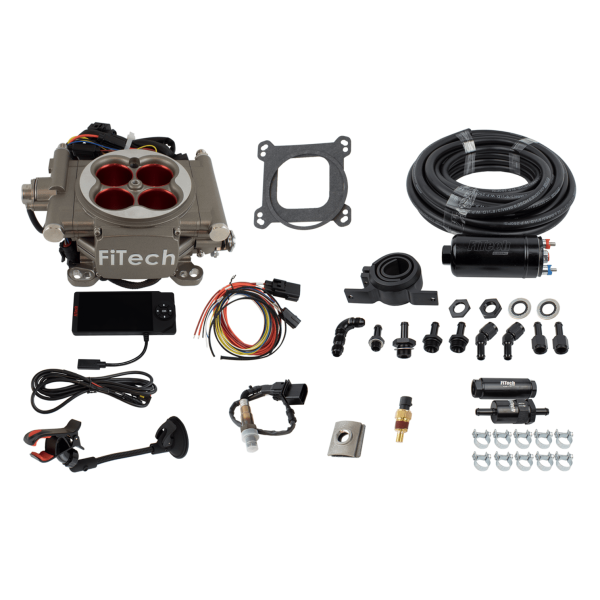

In the Box

Contents

(1) Die-cast throttle body
(1) Hand-held controller
(1) Hand-held controller cable
(1) Windshield mount
(1) 4+2-Pin Connector
(1) O2 sensor
(1) O2 bung kit
(1) CTS sensor
(1) CTS adapter
(1) Mini USB cable
(1) Return plug
(1) Gasket kit

Fuel Pump Kit
• 255 LPH external inline pump
• EFI pre and post fuel filters
• 20’ of -6 fuel hose and 5’ of -8 hose & fittings
• Mounting brackets

Guides & Accessories

Instructions

Instructions for #30003 - Click Here

Go EFI Systems Manual - Click Here

Quick Start Guide – Handheld Controller - Click Here

Handheld Controller Feature Definitions - Click Here

FiTech Throttle Body Dimensions - Click Here

Troubleshoot Guide - DOWNLOAD

Safety Information

1 Year FiTech Warranty

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 10.46ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

How can I plumb for a duel tank pick up?

Asked by: Fordman
We apologize for the confusion. This drop ships directly from the manufacturer. The only information we have on these is what is listed on the website. We would have to strongly recommend that you reach out to the manufacturer directly on this. They can be reached by calling: 951-340-2624.
Answered by: Kelly H
Date published: 2021-12-01

Can this be used on mazda rotary engines

Asked by: Riley442
You will need to contact FiTech Injection Technology at 1-951-340-2624 for application details pertaining to your Mazda Rotary engine.
Answered by: vince
Date published: 2021-05-08

Do I need to change my stock fuel tank on my 69 Pontiac Firebird to run this system? Currently using stock quadrajet on a mildly built 350. Will I have to use a squarebore adapter on the stock manifold?

Asked by: Chief69bird
If you have cleaned your tank out and run proper filters then you should be ok. If the option is available to swap it with an aluminum one, like from Tanks, Inc.- the manufacturer said to go for it. Yes, you will need an adapter from the spread bore to square bore.
Answered by: Kelly H
Date published: 2020-01-24

Is the bolt location 5and3/8 by 5and 3/8 front to back and side to side

Asked by: Rick
Here is a link to the Throttle body dimensions which should include these measurements are there any https://www.eastwood.com/images/pdf/30001.pdf
Answered by: Kelly H
Date published: 2020-01-22

Is this system complete... plug n play?

Asked by: RonJr
The instructions for installation are listed on our website https://www.eastwood.com/images/pdf/30003Instructions.pdf. We also list a Quickstart guide for the handheld controller. If you run into any issues FiTech has made a basic troubleshooting guide to follow: https://www.eastwood.com/images/troubleshoot-guide-for-TB-injection-11.29.18.pdf. If this does not resolve any issues or questions you run into FiTech can be reached directly at: 951-340-2624
Answered by: Kelly H
Date published: 2021-03-02

Will this unit work on a ford 351 with a edelbrock intake and stock fuel pump?

Asked by: Bearcat
This will work with a 351 and an Edelbrock intake. The stock fuel pump will be replaced by the inline pump and a block off plate will be needed.
Answered by: ZachC
Date published: 2019-08-20

Will this work on 1970 Ford F100 with a 360?

Asked by: rtgrape
This will work with that system.
Answered by: SeanW
Date published: 2019-07-18
