Starting out with MIG welding can be overwhelming. Between all the functions and settings, there’s a lot to learn. And then there’s these things called the “MIG welder consumables,” those things your welder will use up in order to operate effectively. Understanding the role of each of these is critical to mastering your new tool.

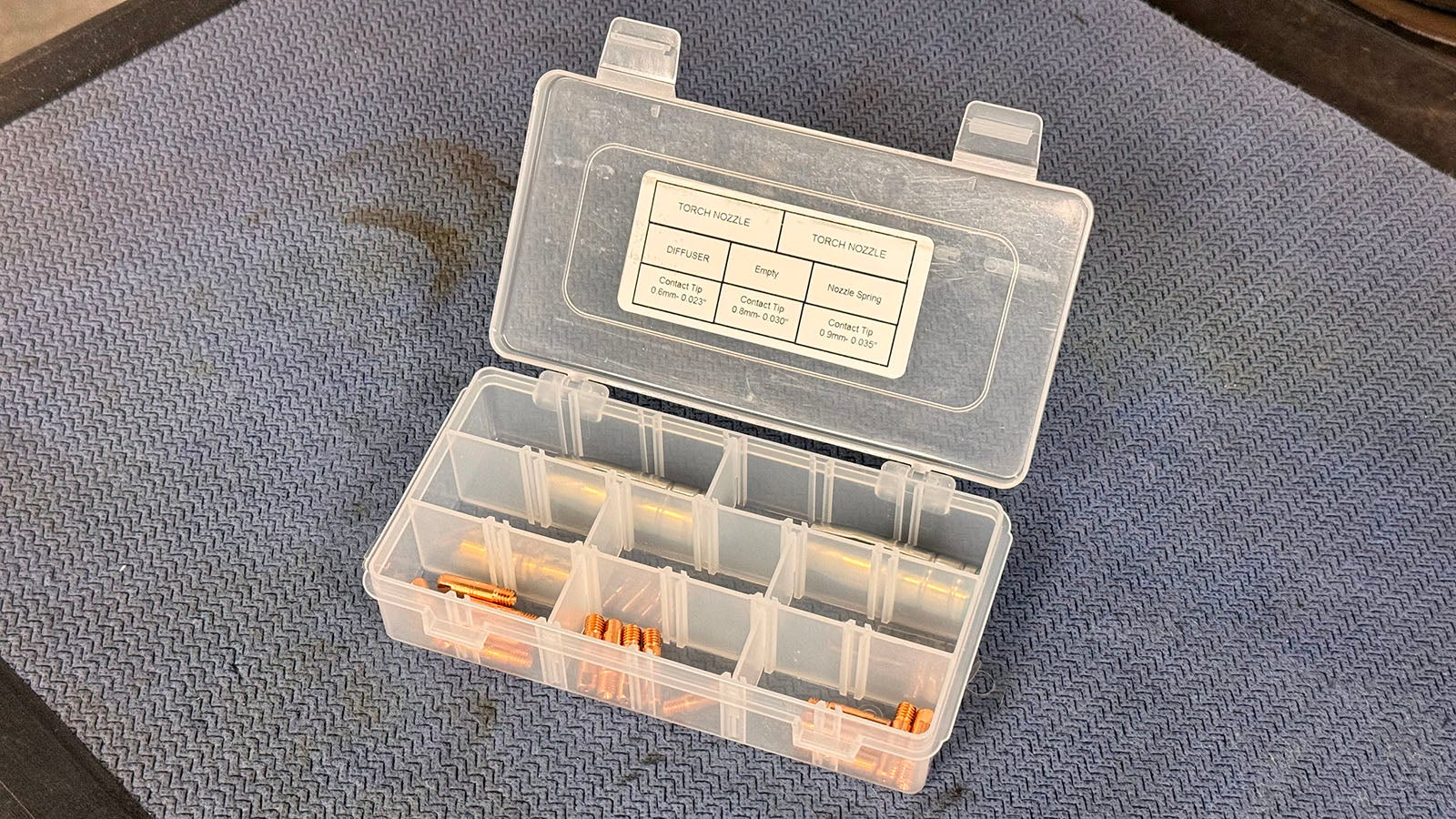

Consumables, like the contact tips, gas nozzles, and welding wire wear out over time, and knowing when to replace them is essential to producing clean, quality welds. There’s nothing worse than having to stop your job because something is worn or used up. To avoid this, keep a supply of the correct consumables on hand. They’re often sold in pre-sorted kits with everything you’ll need.
This article will explain exactly what the key consumables in a typical MIG welder are, what exactly is “consumed” over time, and how to recognize when they’ve reached the end of their life.
MIG Welder Consumables
1. Welding Wire
If you know how a MIG welder works, this is the most obvious consumable. Welding wire, or MIG wire, is the filler material that is melted to form the weld bead. It’s fed through the MIG welder’s torch or spool gun and deposited directly into the weld pool. As you weld, you use up your supply.
What wears out – As you weld, you use up your supply of filler material. MIG wire is also susceptible to rust and corrosion if not stored and maintained properly.
Symptoms of wear
- Wire stops feeding through the torch or spool gun
- Contaminated wire may also feed inconsistently or result in spatter and poor weld quality
2. Contact Tip
The contact tip carries the welding current to the wire. It directs the wire into the weld pool and provides a path for electrical conductivity. These tips correspond to specific wire diameters, typically 0.023”, 0.030”, or 0.035”.
What wears out – The tip wears down from the intense heat and electrical flow and it can become enlarged.
Symptoms of wear
- Deformed tip causes the wire to feed inconsistently
- Spatter or burn-back causing excessive spatter or difficulty in maintaining a steady arc
- Inconsistent wire feeding may jump or snag on the tip
3. Gas Nozzle
The gas nozzle serves two purposes. It protects the welding tip and directs the shielding gas onto the weld. It helps maintain a stable shielding gas flow and prevents contamination of the weld. They come in various finishes and may include specialty shapes, such as spot-weld nozzles.
What wears out – The nozzle wears out due to heat exposure and frequent cleaning from removing welding spatter.
Symptoms of wear
- A worn or clogged nozzle can cause poor shielding gas flow, leading to weld defects
- Visible cracks can no longer provide effective protection
- Too wide a nozzle opening from wear leads to inefficient gas shielding that can cause issues like oxidation
4. Gas Diffuser
The gas diffuser regulates the flow of shielding gas to the nozzle to ensure a consistent supply around the weld. The diffuser may also include a spring that can fatigue from extended exposure to heat, losing its strength.
What wears out – The diffuser is exposed to heat and can become clogged or eroded over time.
Symptoms of wear
- Inconsistent gas flow may indicates the diffuser is worn or obstructed
- Visible cracks or erosion around the diffuser will affect gas delivery
5. Drive Roller
The drive roller is a knurled wheel that controls and feeds the welding wire through the MIG welder to the torch. Like the contact tips, specific drive rollers must be used with corresponding wire sizes.
What wears out – The textures rollers can wear out from constant contact with the wire, leading to slippage or inconsistent feeding.
Symptoms of wear
- Wire that isn’t feeding smoothly or welds that are skipping could be due to worn-out or misaligned drive wheel
- Wire that becomes flattened can be the result of a damaged or misshapen drive roller
