Application:

Efficient, mobile organisation of tools

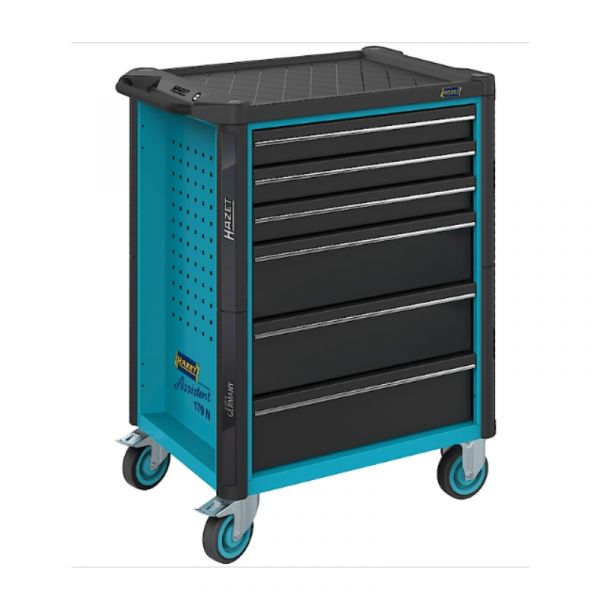

• Tool trolley
• 3 flat and 3 high drawers

Work areas

• Much larger storage and work areas in plastic (179N) or stainless steel (179NX)
• Fully sealed work surface protects inside of trolley from leaking liquids
• Interfaces integrated in the work area for accessories such as laptop holders and top modules

Body / Pull-handle

• Extremely robust design thanks to dual-wall structure
• Complete welded construction of the entire body for tough daily workshop use
• Optimised, yielding edge protection on all four corners with real impact protection thanks to internal damping concept
• Ergonomically optimised pull handle for better manoeuvrability

Locking concept

• Ergonomically arranged side lock position for better operability protects keys and lock against damage
• Highly secure closing system with central locking technology for optimum protection of your property
• 2-stage locking
  • Central locking, lockable with cylinder lock and 2 folding keys
  • Mutual drawer locking for minimum tilting risk

Drawer concept

• Self-closing and reciprocal locking of the drawers prevents unwanted opening
• 100% sliding-out with ball-bearing telescopic slides
• Drawer design for optimum use of the interior
• Drawer fronts for optimised handling
• Dirt-resistant drawer coating for easy cleaning

High performance chassis

• Large wheels with high loading capacity, precision ball bearing and dual rounded rim in the pivot bearing, easy manoeuvrability, even with high dynamic load
• 2 swivel castors with double stop function: fixed castors prevent inadvertent rolling of the trolleyfixed swivel bearings prevent the castors from swivelling, e.g. on inclined surfaces
• Protective ring prevents dirt and threads from getting in
• Elastic castors enable smooth movement i179N-6 – 9:
• Solvent-resistant plastic work surface
• Metal handle, powder coated in black i179NX-6 – 8:
• Stainless steel work surface
• Extra protection through high-quality plastic end caps
• Brushed stainless steel handle
• Total loading capacity (dynamic): 540 kg
• Loading capacity (static): 1000 kg
• Loading capacity of high drawer: 25 kg
• Colour: HAZET blue
• Made in Germany
• Dimensions / length: 785 mm x 518 mm x 1020 mm
• Net weight: 87.2 kg
• Drawers, flat: 3× 81 x 522 x 398 mm
• Drawers, high: 3× 166 x 522 x 398 mm
• (Drawer) size for plastic drawer insert: 3/3+
• Worktop: Plastic, resistant to solvent, with integrated storage wells
• Number of fixed castors: 2 (x 125 mm)
• Number of swivel castors: 2 (x 125 mm)
