Application:

Work independently

• High efficiency thanks to brushless motor

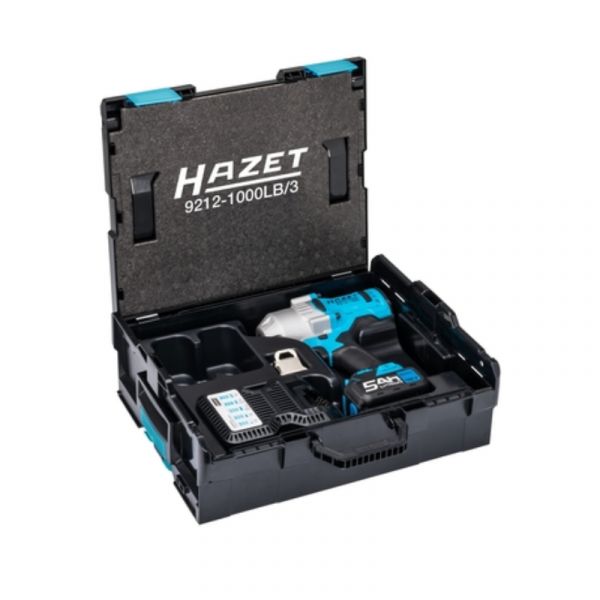

• 3-piece set ? in HAZET L-Boxx 136 and soft foam insert:

  • 1 cordless impact wrench
  • 1 quick charger
  • 1 Li-ion rechargeable battery 18 V ? 5 Ah (Ampere hours)
• 18 V ? 5 Ah (Ampere hours)
• Suitable for continuous operation
• Robust machine housing
• There are three power stages to choose from for torque acceleration:

  • Stage 1 180 Nm at 0 – 400 rpm (0 – 800 impacts/min)
  • Stage 2 400 Nm at 0 – 800 rpm (0 – 1600 impacts/min)
  • Stage 3 1000 Nm at 0 – 1800 rpm (0 – 2200 impacts/min)
• Illumination of the work area before the output begins to move
• Compatible with HAZET rechargeable batteries 9212-02 and 9212-05
• Dimensions including rechargeable battery: 278 x 230 x 89.5 mm
• Including belt clip, attachable on both sides
• Brushless DC motor (BLDC)
  • Longer service life, less wear, no need to change the carbon brushes
  • High efficiency and hence less battery consumption
  • More compact motor enables smaller installation dimensions
• Sound power level: 112 db(A) Lp W
• Vibration acceleration: 17.80 m/s2
• Loosening torque (max) determined with screw size M: 24
• Forward and reverse: multi-stage (right/left)
• L-Boxx 190 L-136
• Output: 3
• Net weight: 3.64 kg
• For impact operation
• Tightening torque max Nm: 1000 Nm
• Loosening torque maximum [Nm]: 1400 Nm
• Sound pressure level: 101 dB(A) Lp A
• Revolutions per minute: 0 – 1800

Do you know – Li-Ion batteries:

• Do not have any memory effect
• Consist of cells with 3.6 V each
• After full charge they have a higher voltage than 3.6 V i.e. 5 cells each 3.6 V = 18 V – but after full charge a peak voltage of up to 20 V is possible

Attention: For a longer lifetime of the battery please store it charged up to 50 to 80 % only

• Have an energy density which is twice as high as nickel cadmium batteries, for example
• Have a nominal voltage three times higher than a nickel metal hydride battery
• Require multiple complete charging cycles to reach full capacity
• Number of tools: 3
