Holley 80 GPH In-line Universal Electric Fuel Pump EFI 12-920

Description

The 12-920 universal in-line fuel pump is intended for Throttle Body EFI, Multipoint EFI and Forced Induction Multipoint EFI systems. It is designed to work in-line, not inside the tank, so installation is a snap. The 12-920 is rated for continuous duty service and have been tested up to 2,500 hours.

Features:

  • Draws 5 amps at 15 psi
  • Will feed up to 800 horsepower throttle body EFI units
  • Will feed up to 700 horsepower multipoint units
  • Will feed up to 600 horsepower forced induction multipoint units
  • OE proven design
  • Lightweight and compact

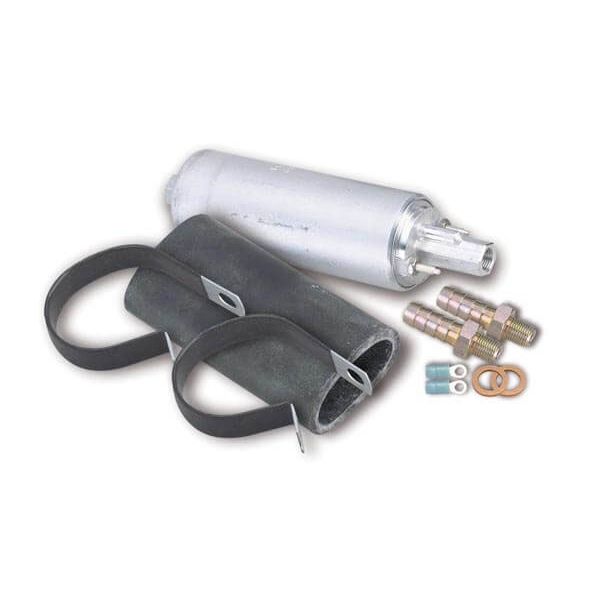

  • Rubber isolator, mounting clamps and electrical hardware included
  • 3/8" barbed fittings included
  • Not designed for use on aircraft of any type.

Specifications

Application: Universal
Bracket Color: Black
Brand: Holley
Coast Guard Approved: Yes
Emission Code: 3
Forced Induction HP@43PSI: 600
Fuel System: Carbureted, EFI
Fuel Type: Gasoline
GPH@15PSI: 80
GPH@43PSI: 67
GPH@60PSI: 62
GPH@8PSI: 85
Inlet Size: 10mm x 1.0
LPH@15PSI: 302
LPH@43PSI: 254
LPH@60PSI: 235
LPH@8PSI: 322
Material: Steel
Naturally Aspirated HP@15PSI: 800
Naturally Aspirated HP@43PSI:700
Naturally Aspirated HP@8PSI: 850
Outlet Size: 10mm x 1.0
Product Type: EFI Part
Pump Body Color: Silver
Part Number: 12-920
EMMISIONS

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.


The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:


• 1965 and older U.S. manufactured California Certified vehicles
• 1967 and older U.S. manufactured Federally Certified vehicles
• 1967 and older Foreign manufactured vehicle

The following vehicles are considered Racing Use Only Vehicles:

• Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

• 1966 and newer U.S. manufactured California Certified vehicles
• 1968 and newer U.S. manufactured Federally Certified vehicles
• 1968 and newer Foreign manufactured vehicle

Shipping

Ships Via Fedex

Aerosol Details

N/A

Consumables

N/A

Instructions

Fuel Pumps Technical Information

Instructions for Part# 12-920

Fuel Systems Selection Chart


***Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. ***10mm x 1.0 inlet and outlets. Includes 10mm x 1.0 gasket sealed 3/8" Outside diameter hose barbs. ***A/N adapters are available: -6 AN, Part number 26-160. -8 AN, Part number 26-180

Spare Parts

N/A
