Holley LS Single Plane Intake 300-132

Holley LS Single Plane Intake 300-132

Item #21846 Brand: Holley

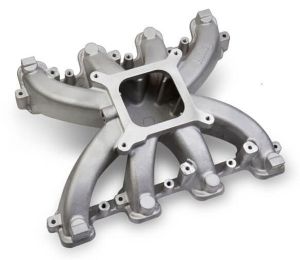

Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
Quantity:
Quantity: close
Only $288.95

• This item ships directly from the manufacturer

• Expected delivery time is 1 – 2 weeks

• Not available in Eastwood Retail Stores

• Order may not be changed or canceled



< Back

Details

Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads

Features:

  • 2500-7000 RPM power band
  • 4150 Square bore carb mounting flange (accepts up to 1.75" diameter throttle bores)
  • Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
  • Minimum carb flange height - fits in vehicles with minimum hood modifications
  • Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
  • Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
  • Weight - 11.5 lbs.
  • Height (front) - 4.95" to the lifter valley cover flange at the engine block front flange
  • Port size - 2.659" height x .918" wide
  • Includes Viton® intake to cylinder head O-ring gaskets - Viton® is a registered trademark of DuPont Performance Elastomers

More info...
< Back

Contents

(1)Holley LS Single Plane Intake 300-132


Specifications

Barrels: 4
Brand: Holley
Construction: Cast
Emission Code: 3
Engine: GM LS1/LS2/LS6
Finish: Satin
Flange Style: 4150 Square Bore
Front Height: 4.95 inch
Fuel System Type: Carb
Manifold Type: Single Plane
Product Type: Manifold
Rear Height: 4.95 inch
RPM Power Band: 2500-7000
Part Number: 300-132

EMMISIONS

This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.


The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:


• 1965 and older U.S. manufactured California Certified vehicles
• 1967 and older U.S. manufactured Federally Certified vehicles
• 1967 and older Foreign manufactured vehicle

The following vehicles are considered Racing Use Only Vehicles:

• Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street

WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

The following vehicles are considered Emissions Controlled Vehicles:

• 1966 and newer U.S. manufactured California Certified vehicles
• 1968 and newer U.S. manufactured Federally Certified vehicles
• 1968 and newer Foreign manufactured vehicle


Instructions

Instructions for Part# 300-132


***Includes mounting bolts & washers as well as pipe plugs for Manifold vacuum and MAP sensor ports. Also includes O-ring cylinder head mounting flange gaskets for an OEM style seal.


Warranty

1 Year Manufacturers Warranty


Eastwood Offers Free Lifetime Technical Support


Click here for product SDS information


Attention California Residents - Proposition 65


Proposition 65 Warning WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov
