Item #
63475
BRAND: Ice Engine Works
icengineworks 1625EHSeries (1-5/8"OD) PRO Exhaust Header Modeling Block Set, 240-pc 1625EHPRO
1-5/8 inch Pro Header Modeling Set, 248 piece
1-5/8 inch Pro Header Modeling Set, 248 piece
1-5/8 inch Pro Header Modeling Set, 248 piece
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description

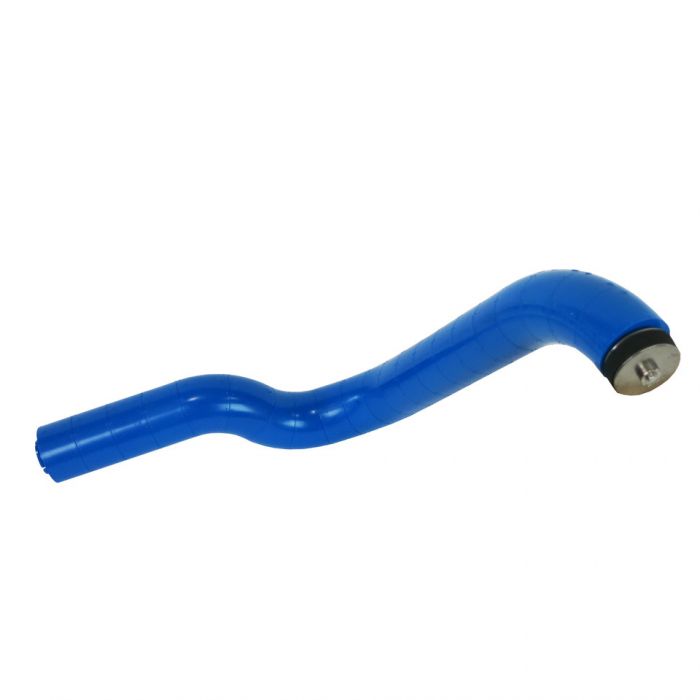

Dramatically simplify header and turbo manifold design and fabrication with these modeling blocks from Icengineworks! These blocks simply snap together to form header primaries that can then be duplicated by cutting and welding commonly available prebent U-bends and J-bends.Included with each kit are both straight and curved blocks in a variety of radii. Each block represents a 1 inch arc length of tubing. Blocks of different sizes can also be connected to simulate stepped headers. Each block is molded with a series of markings and index points to make the transition to metal as easy as possible.
- Design and layout headers quick and easy
- Blocks simply snap together
- Enough pieces for most V8 applications
In the Box
Contents
- (60) Straight blocks, 1625-00
- (60) 2 inch radius blocks, 1625-20
- (60) 3 inch radius blocks, 1625-30
- (60) 4 inch radius blocks, 1625-40
- (8) Block adapters,1625BA
- Manual
- Control sheet pad
- Plastic case
