Item # 63458 BRAND: Ice Engine Works

icengineworks 1750EHSeries (1-3/4"OD) BASIC Exhaust Header Modeling Block Set, 150-pc 1750EHBASIC

1-3/4 inch Basic Header Modeling Set, 154 piece
1-3/4 inch Basic Header Modeling Set, 154 piece
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 5.07ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$449.99
Loading...
Loading...
Save for Later
1-3/4 inch Basic Header Modeling Set, 154 piece

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
icengineworks 1750EHSeries (1-3/4"OD) BASIC Exhaust Header Modeling Block Set, 150-pc 1750EHBASIC

Product Overview:

Description

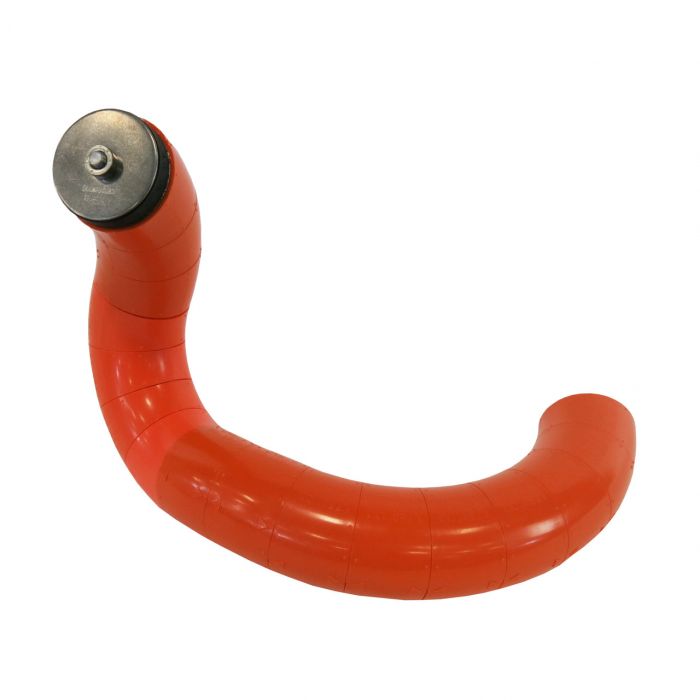

Dramatically simplify header and turbo manifold design and fabrication with these modeling blocks from Icengineworks! These blocks simply snap together to form header primaries that can then be duplicated by cutting and welding commonly available prebent U-bends and J-bends.

Included with each kit are both straight and curved blocks in a variety of radii. Each block represents a 1-inch arc length of tubing. Blocks of different sizes can also be connected to simulate stepped headers. Each block is molded with a series of markings and index points to make the transition to metal as easy as possible.

In the Box

Contents

  • (30) Straight blocks, 1750-00
  • (30) 2 inch radius blocks, 1750-20
  • (30) 3 inch radius blocks, 1750-30
  • (30) 4 inch radius blocks, 1750-40
  • (30) 6 inch radius blocks, 1750-60
  • (4) Block adapters, 1750BA
  • Manual
  • Control sheet pad
  • Plastic case

Guides & Accessories

Consumables

  • 63443 - Ice Engine Works 1750EHSeries (1-3/4"OD) 2-into-1 Exhaust Header Collector Dummy 1750EHCD21
  • 63442 - Ice Engine Works 1750EHSeries (1-3/4"OD) 3-into-1 Exhaust Header Collector Dummy 1750EHCD31
  • 63441 - Ice Engine Works 1750EHSeries (1-3/4"OD) 4-into-1 Exhaust Header Collector Dummy 1750EHCD41
  • 63440 - Ice Engine Works 1750EHSeries (1-3/4"OD) 5-into-1 Exhaust Header Collector Dummy 1750EHCD51
  • 63444 - Ice Engine Works 1750EHSeries (1-3/4"OD) Tube Tack Welding Clamp 4-pc Set 1750EHTTWCS
  • 63451 - Ice Engine Works 1750EHSeries (1-3/4"OD) Tube Block Adapter 1750EHBA
  • 63450 - Ice Engine Works 1750EHSeries (1-3/4"OD) CUT Tube Cutting Package, includes 1750EHCS Set and PIV1000 1750EHCUT
  • 63474 - Ice Engine Works 1625EHSeries (1-5/8"OD) Add-On Blocks, Straight Exhaust Header Modeling Block, 20-pc 1625EHAO1-00
  • 63473 - Ice Engine Works 1625EHSeries (1-5/8"OD) Add-On Blocks, 2.000"-CLR Exhaust Header Modeling Block, 20-pc 1625EHAO1-20
  • 63472 - Ice Engine Works 1625EHSeries (1-5/8"OD) Add-On Blocks, 3.000"-CLR Exhaust Header Modeling Block, 20-pc 1625EHAO1-30
  • 63471 - Ice Engine Works 1625EHSeries (1-5/8"OD) Add-On Blocks, 4.000"-CLR Exhaust Header Modeling Block, 20-pc 1625EHAO1-40
  • 63456 - Ice Engine Works 1750EHSeries (1-3/4"OD) Add-On Blocks, Straight Exhaust Header Modeling Block, 20-pc 1750EHAO1-00
  • 63455 - Ice Engine Works 1750EHSeries (1-3/4"OD) Add-On Blocks, 2.000"-CLR Exhaust Header Modeling Block, 20-pc 1750EHAO1-20
  • 63454 - Ice Engine Works 1750EHSeries (1-3/4"OD) Add-On Blocks, 3.000"-CLR Exhaust Header Modeling Block, 20-pc 1750EHAO1-30
  • 63453 - Ice Engine Works 1750EHSeries (1-3/4"OD) Add-On Blocks, 4.000"-CLR Exhaust Header Modeling Block, 20-pc 1750EHAO1-40
  • 63452 - Ice Engine Works 1750EHSeries (1-3/4"OD) Add-On Blocks, 6.000"-CLR Exhaust Header Modeling Block, 20-pc 1750EHAO1-60
  • 63436 - Ice Engine Works 1875EHSeries (1-7/8"OD) Add-On Blocks, Straight Exhaust Header Modeling Block, 20-pc 1875EHAO1-00
  • 63435 - Ice Engine Works 1875EHSeries (1-7/8"OD) Add-On Blocks, 2.000"-CLR Exhaust Header Modeling Block, 20-pc 1875EHAO1-20
  • 63434 - Ice Engine Works 1875EHSeries (1-7/8"OD) Add-On Blocks, 2.500"-CLR Exhaust Header Modeling Block, 20-pc 1875EHAO1-25
  • 63433 - Ice Engine Works 1875EHSeries (1-7/8"OD) Add-On Blocks, 3.000"-CLR Exhaust Header Modeling Block, 20-pc 1875EHAO1-30
  • 63432 - Ice Engine Works 1875EHSeries (1-7/8"OD) Add-On Blocks, 4.000"-CLR Exhaust Header Modeling Block, 20-pc 1875EHAO1-40
  • 63431 - Ice Engine Works 1875EHSeries (1-7/8"OD) Add-On Blocks, 5.000"-CLR Exhaust Header Modeling Block, 20-pc 1875EHAO1-50
  • 63415 - Ice Engine Works 2000EHSeries (2"OD) Add-On Blocks, Straight Exhaust Header Modeling Block, 20-pc 2000EHAO1-00
  • 63414 - Ice Engine Works 2000EHSeries (2"OD) Add-On Blocks, 3.000"-CLR Exhaust Header Modeling Block, 20-pc 2000EHAO1-30
  • 63413 - Ice Engine Works 2000EHSeries (2"OD) Add-On Blocks, 4.000"-CLR Exhaust Header Modeling Block, 20-pc 2000EHAO1-40
  • 63412 - Ice Engine Works 2000EHSeries (2"OD) Add-On Blocks, 6.000"-CLR Exhaust Header Modeling Block, 20-pc 2000EHAO1-60
