Jamey Jordan Signature Series Circle Layout Tool

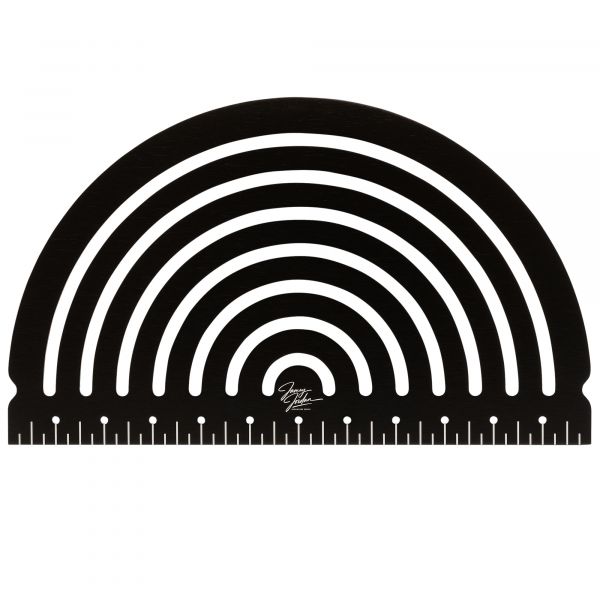

Lay out perfect circles, arcs, and radii with ease using the Eastwood-exclusive Jamey Jordan Signature Series Circle Layout Tool. Engineered specifically for sheet metal work, this 12-inch x 7-inch aluminum template features a classic half-circle profile with six 1/8-inch-wide grooves for precise marking.

Baseline notches at each end ensure accurate alignment for consistent start and end points, while seven reference holes spaced every ½” add flexibility for detailed layout work. Its 12-inch straightedge helps maintain alignment when laying out symmetrical designs. Crafted from sturdy 1/8-inch anodized aluminum and laser-cut for precision, this tool is ideal for scribing accurate cut lines before bead rolling, snipping, or plasma cutting.

Whether you're fabricating custom panels, shaping patch panels, or designing decorative metalwork, this circle layout tool delivers professional-grade accuracy and repeatability to every project. A must-have for serious fabricators and sheet metal artists alike.
