Product Overview:
Description

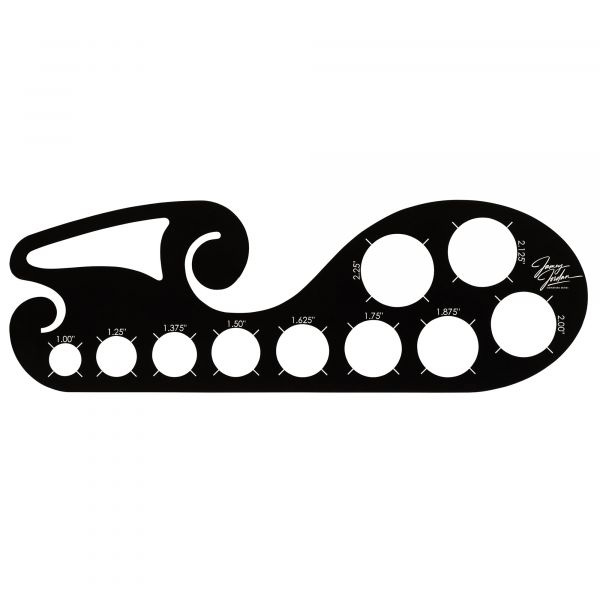

Achieve precision and artistry in your metal fabrication projects with the Eastwood-exclusive Jamey Jordan Signature Series French Curve Layout Tool. Built specifically for sheet metal work, this oversized 18-inch x 6-inch template features classic French curve profiles, over 12 inches of straightedge, and 10 integrated circle templates ranging from 1 to 2.25 inches, each with index marks for fast, repeatable layouts.
Crafted from durable 1/8-inch anodized aluminum and laser-cut for accuracy, it’s the ultimate tool for laying out smooth, flowing curves in custom panels, bodywork, aircraft skins, and more. Perfect for tracing, replicating, or transferring complex contours, this layout tool ensures symmetrical results and clean, professional-looking cuts. Use it with layout dye or scribe tools to mark precise lines before cutting, shaping, or forming.
Whether you're a pro or a DIYer, this tool helps turn your creative vision into metal with unmatched accuracy.
Jamey Jordan Signature Series French Curve Layout Tool Features:
- Classic French curve template includes outside and inside curve profiles plus more than 12” of straightedge length
- Includes 10 circle templates ranging from 1" to 2.25" with index marks for quick layout
- Large 18" x 6" size designed specifically for sheet metal layout
- Laser-cut for precision and made of sturdy 1/8" anodized aluminum
- Trace the precise, flowing curves often needed in custom panels, automotive bodywork, aircraft skins, and decorative metalwork.
- Ideal for replicating or transferring existing curves onto new sheet metal when duplicating or repairing panels.
- Use with layout dye or marking tools to scribe accurate cut lines before shearing, snipping, or plasma cutting.
- Ensure symmetry and aesthetic consistency when creating custom designs or flanges that need to mirror each other
