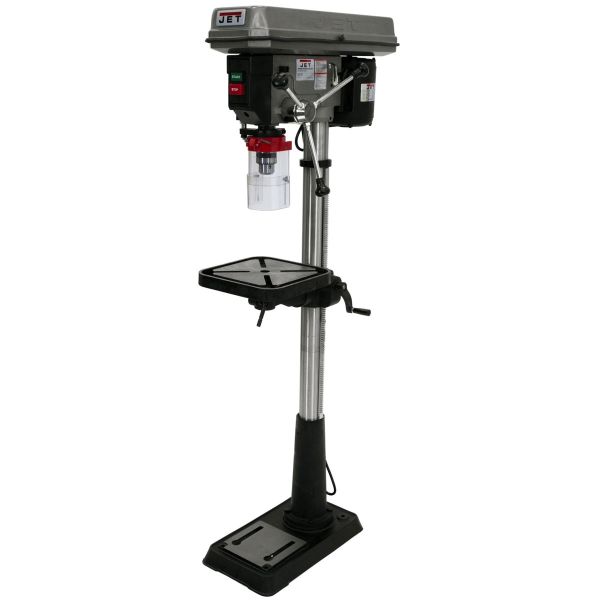

JET 15 Inch Floor Model Drill Press 115V 1Ph J-2500
Manufacturer Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Product Overview:
Description
J-2500, 15" Floor Model Drill Press 115V 1Ph 354400
Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
- Constructed to provide a solid base for drilling
- The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
- Cast Iron head
- Large ground steel column for maximum head and table support
- Large quill allows greater accuracy
- 3-1/8" stroke for deep hole applications
- Accurate depth stop for precise hole depths
- Table tilts 45°
- 5/8" drill chuck and arbor
- Telescoping safety spindle guard
Warranty
Specifications
Drills to Center of Circle (in): 15
Drilling Capacity Cast Iron (In.): 5/8
Drilling Capacity Mild Steel (In.): 1/2
Distance Column to Spindle (In.): 7-1/2
Number of Spindle Speeds: 16
Range of Spindle Speeds (RPM): 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
Column Diameter (In.): 2-7/8
Spindle Taper (In. x TPI): MT-2
Spindle Travel (In.): 3-3/8
Spindle Distance to Base (In.): 48
Spindle Distance to Table (Max.) (In.): 24
Table Travel (In.): 24
T-Slots Number and Size (In.): -
T-Slot Centers (In.): -
Table Size (L x W) (In.): 11-1/2 x 11-1/2
Work Table Weight Capacity (Lbs.): 44
Base Dimensions (In.): 11 x 19-1/2
Base Work Table (In.): 7 x 7-1/2
Base Slots Number & Size (In.): -
Motor (HP): 3/4 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.): 31 x 13 x 63
Weight (Lbs.): 167
