Item # 32260 BRAND: Jet

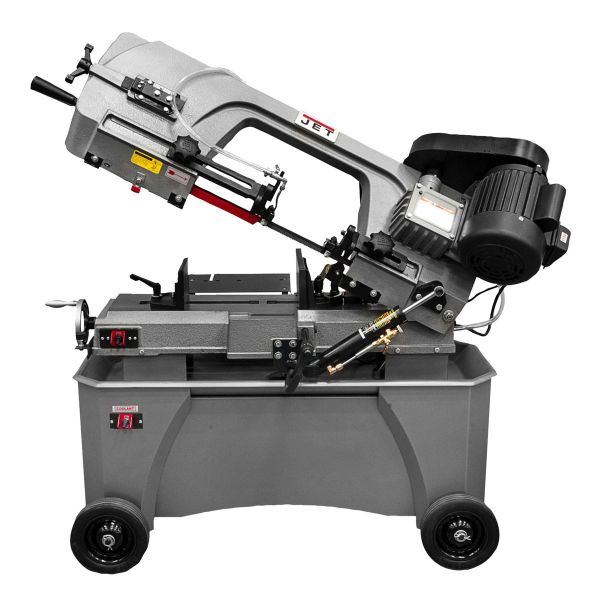

JET 7 Inch x 12 Inch Horizontal / Vertical Bandsaw HVBS-712

JET HVBS-712, 7" x 12" Horizontal / Vertical Bandsaw
JET HVBS-712, 7" x 12" Horizontal / Vertical Bandsaw
JET 7 Inch x 12 Inch Horizontal / Vertical Bandsaw HVBS-712 is rated 4.0 out of 5 by 1.
  • y_2024, m_3, d_27, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_32260, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 4.34ms
  • REVIEWS, PRODUCT
$1,949.00
Loading...
Loading...
Save for Later
JET HVBS-712, 7" x 12" Horizontal / Vertical Bandsaw

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
JET 7 Inch x 12 Inch Horizontal / Vertical Bandsaw HVBS-712

Product Overview:

Description

HVBS-712, 7" x 12" Horizontal / Vertical Bandsaw 414559

The JET HVBS-712 Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. JET increased the width and height of the stand and added new features that exceed expectations. The HVBS-712 is another innovative JET product packed with features you’ve come to expect.

  • 9-7/16" x 10" work table in the vertical position
  • Rapid action vise miters to 45°
  • Improved Height and width of stand with built-in storage cabinet and chip tray
  • Adjustable material stop for repeatability
  • CSA/CUS : Following strict guidelines and electrical requirements, this JET Saw is CSA/CUS certified
  • Blade drive is a belt to sealed, hardened and ground gear drive system
  • Blade wheels are made from flanged cast iron for increased durability
  • Auto shut-off after cut
  • Adjustable ball bearing blade guides
  • Cast mounted adjustable hydraulic downfeed
  • Complete coolant system
  • Four 8" rubber wheels for ease of movement
  • 3/4" Bi-Metal blade

Warranty

2 Year Manufacturers Warranty

Specifications

Cutting Capacity: (W x D) (In.): 7 x 12
Round at 90 Degrees (In.): 7
Round at 45 Degrees (In.): 4-1/2
Rectangle at 90 Degrees (In.): 4 x 11 / 7 x 10-3/8
Rectangle at 45 Degrees (In.): 6-1/2 x 4-1/2
Square at 90 Degrees (In.): 7 x 7
Square at 45 Degrees (In.): 4-1/2 x 4-1/2
Throat Depth (In.): 7
Head Movement (Deg.): 0
Vise Swivels (Deg.): 45
Blade Speeds (SFPM): 86, 132, 178, 260
Blade Wheel Diameter (In.): 11-3/4
Blade Length (In.): 93
Blade Size (In.): 3/4 x 0.032 x 93
Bed Height (In.): 22-1/4
Coolant Capacity (Gal.): 1
Motor (HP): 3/4 HP, 115/230V, 1Ph
Weight (Lbs.): 418
Overall Dimensions (L x W x H) (In.): 48 x 17 x 40
Drive: Step Pulley

FAQs

N/A

Shipping & Handling

Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.

In the Box

Contents

(1) HVBS-712, 7" x 12" Horizontal / Vertical Bandsaw 414559

Guides & Accessories

Instructions

Click here for product instructions

Safety Information

Always wear eye and hand protection when working with metal. Keep all body parts away form moving parts of this machine. Please read and fully understand the instruction manual before use.

Aerosol Details

N/A

Application Tips

N/A

Consumables

N/A

Spare Parts

N/A

Reviews

Rated 4 out of 5 by from Jet band saw Took a little while to get the saw. But I was told it was technical issues on the manufacturers end. Saw came in, and was almost exactly what I expected!
Date published: 2022-09-28
  • y_2024, m_3, d_27, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.38
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_32260, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.04ms
  • REVIEWS, PRODUCT

Questions & Answers

What sizes does this cut?

Asked by: Edward
Manufacturer's specifications are as follows: Cutting Capacity: (W x D) (In.): 7 x 12 Round at 90 Degrees (In.): 7 Round at 45 Degrees (In.): 5 Rectangle at 90 Degrees (In.): 4 x 11 / 7 x 10-1/4 Rectangle at 45 Degrees (In.): 6 x 4 Square at 90 Degrees (In.): 7 x 7 Square at 45 Degrees (In.): 5 x 5
Answered by: Nick BC
Date published: 2022-03-31

What is the difference in this saw & the deluxe model. Same part # but with a D on the end?

Asked by: Jack
The work table is larger 10" X 12' vs 9 7/16" X 10" The Tool-less quick lock vise has preset miters positions at 15, 30 and 45 degrees vs Standard Rapid action vise miters to 45 degrees. Micro adjustable tool-less material stop for accurate set-up and repeatability vs Standard adjustable material stop for repeatability. Multi position blade guides enhance use in the vertical position by increasing the throat capacity from 4" to 8" and creates safer a working position.
Answered by: vince
Date published: 2021-06-02

Were is this Bandsaw made ?

Asked by: Terry Beyer
This item is manufactured overseas in Taiwan.
Answered by: Kelly H
Date published: 2020-12-12

Were is this saw made ?

Asked by: Terry Beyer
This saw is manufactured in Tawain.
Answered by: SeanW
Date published: 2020-12-11

How much assembly is required?

Asked by: Ray623
Assembly instructions will be listed in the instruction manual starting on page 8: http://content.jettools.com/assets/manuals/414559_man_EN.pdf
Answered by: Kelly H
Date published: 2019-11-15
