4 foot Radius Brake with 6 Radius Rolls, 16 gauge
  • Manufacturer Warranty Included
  • 90 Day Returns + 100% Satisfaction Guarantee
  • FREE Lifetime Tech Support

QUESTIONS? Talk to an Expert:
Phone Icon  800-343-9353   |     Chat   |     Email Us

QUESTIONS? Talk to an Expert:  Phone Icon  800-343-9353   |     Chat   |     Email Us

Description

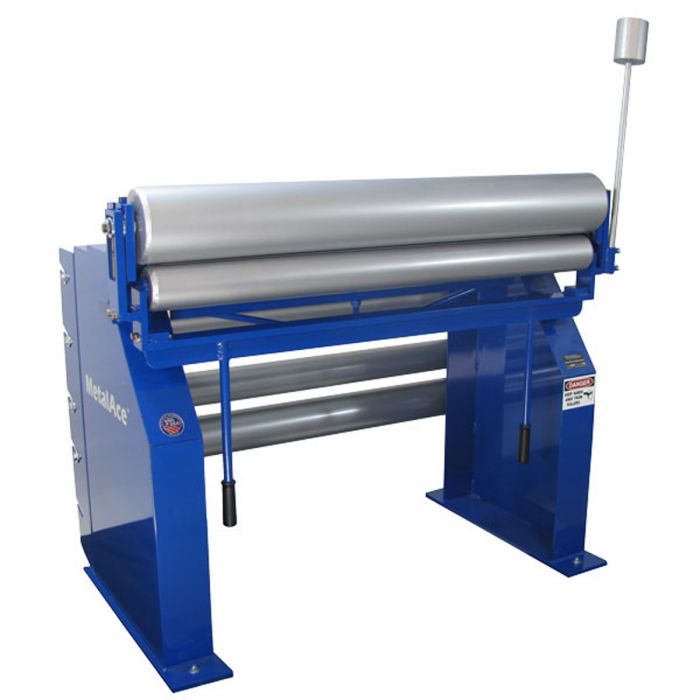

This sheet metal radius brake is the perfect solution for forming radius bends in mild steel and aluminum. Stress and cracking of material is minimized due to the unique design of the apron, which swings outside the radius and rolls across the material. Heavy duty plate construction, quick tooling change over, and convenient radius roll storage on the machine make this brake durable and easy to use. Especially useful in race car fabrication, automotive and aircraft restoration, sign manufacturing and custom cabinet and custom sheet metal, this brake is an excellent addition to any fabrication shop.

  • Includes 6 radii formers
  • Quick tooling change over
  • Convenient radius roll storage
  • Heavy plate construction
  • 1 year manufacturer's warranty
Instructions & Guides
specifications_ax
Type: Manual
Mild Steel Capacity: 16 gauge (1.5mm)
Aluminum Capacity: .090 (2.2mm)
Stainless Capacity: 20 gauge (.9mm)
Max Forming Length (inches): 48
Number/Dia Of Rolls: 1 inch OD for 1/2 inch radius, 2 inch tube for 1 inch radius, 3 inch tube for 1-1/2 inch radius, 4 inch tube for 2 inch radius, 5 inch tube for 2.5 inch radius, 6-3/4 inch tube for 3-3/8 inch radius
Weight (pounds): 720
Dimensions (LxWxH): 38 x 69 x 49
*Note: Specifications are approximate and subject to change.
