Item # 63524 BRAND: Metal Ace

MetalAce Covell Signature Line Fully Assembled Fabricated English Wheel 30 In. Throat MA30-Covell

Brand: Metal Ace
In stock
SKU
63524
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 17.18ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$4,175.00
Loading...
Loading...
Save for Later
Covell Signature Series English Wheel
  • Manufacturer Warranty Included
  • 90 Day Returns + 100% Satisfaction Guarantee
  • FREE Lifetime Tech Support

QUESTIONS? Talk to an Expert:
Phone Icon  800-343-9353   |     Chat   |     Email Us

QUESTIONS? Talk to an Expert:  Phone Icon  800-343-9353   |     Chat   |     Email Us

Description

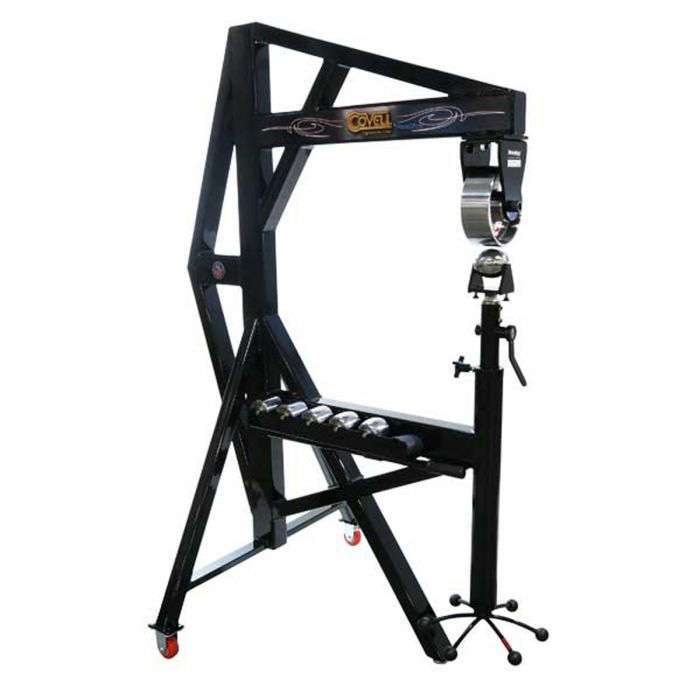

MetalAce has partnered with legendary metalshaper Ron Covell to offer this brand new design. Ron's input is clearly shown in the details of the machine: An oversized 3 inch jack is used that drops the kick wheel to a comfortable height, the kickwheel has some flare with a curved spoke design, the 3 inch wide anvils each include their own axle and lay in a convenient tray, and a rubber band for the upper wheel is included for complex metal shaping procedures. The extra marr-resistant powder coated finish is completed with a special limited-edition serial number plaque and graphics.

This on-the-go metal forming machine is perfect for hot rod builders, auto restorers, sculpture artists, and vintage aircraft restoration shops. The 3-leg stance gives a solid base on all floors and utilizes a front-mounted rubber pad for stability. Even though it's a rigid floor model a retractable handle and rear urethane casters move it around easily. The tested and true jack mechanism offers a quick-release anvil yoke and precision alignment adjusters. This gives you the ability to quickly remove your workpiece for inspection and easily repeat the pressure you were working at, even when changing radii. Our anvils are made from 4140HT material and feature industry standard flat spots for ideal wheeling. Proudly made in the USA.

  • Screw lift assembly has quick-release cam mechanism
  • Includes 6 anvil wheels made from 4140HT
  • 30 inch throat depth
  • Portable design
  • 1 year manufacturer's warranty
What's Included
  • (6) 3 inch wide anvil wheels made from 4140HT: Flat, 2.5, 3.75, 6.0, 12.0, and 24.0 inch radii
  • 8 x 3 inch upper wheel
  • Upper wheel band
Instructions & Guides
specifications_ax
Throat Height (inches): 30
Throat Depth (inches): 30
Steel Capacity: 12 gauge (2.6mm)
Aluminum Capacity (inches): .125 (3.2mm)
Work Height (inches): 48
Upper Wheel (inches): 8 x 3/td>
Anvil Wheels (inches): 3 x 3/td>
Weight (pounds): 340
Dimensions (LxWxH): 54 x 40 x 73
*Note: Specifications are approximate and subject to change.
Consumables_ax
  • 63517 - Metal Ace 2" Wide lower anvils (6 standard sizes), yoke, and tray for use on MA30-Covell, black powder coat MA2-Deluxe-Covell
  • 63492 - Metal Ace Optional 2" Anvil Tray for MA30-Covell, black powder coat MA2-Tray-Covell
  • 63495 - Metal Ace Optional 2" Anvil Yoke for MA30-Covell, black powder coat MA2-Yoke-Covell
  • 63491 - Metal Ace Radius Check Gauge MARCG
  • 63516 - Metal Ace 1.00" Radius anvil for 22B MA2-1.00
  • 63515 - Metal Ace 1.00" Radius edging anvil for 22B MA2-1.00E
  • 63514 - Metal Ace 2.50" Radius anvil for 22B MA2-2.50
  • 63513 - Metal Ace 3.25" Radius anvil for 22B (Standard with the MA22B) MA2-3.25
  • 63512 - Metal Ace 5.00" Radius anvil for 22B MA2-5.00
  • 63511 - Metal Ace 5.00" Radius narrow anvil for 22B MA2-5.00N
  • 63510 - Metal Ace 5.00" Radius narrow offset anvil for 22B MA2-5.00NO
  • 63509 - Metal Ace 8.50" Radius anvil for 22B MA2-8.50
  • 63508 - Metal Ace Flat anvil for 22B MA2-Flat
  • 63507 - Metal Ace 2" Wide upper wheel for 22B MA2-Upper
