Item # 63529 BRAND: Metal Ace

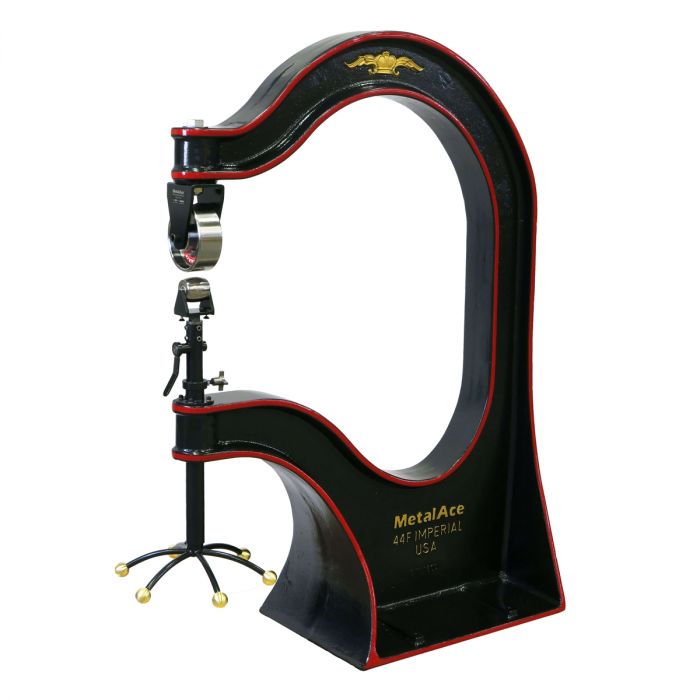

MetalAce Fully Assembled Cast English Wheel 44 In. Throat MA44F-Imperial

44F Imperial English Wheel
44F Imperial English Wheel
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 9.04ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
out of stock
44F Imperial English Wheel

Manufacturer Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
MetalAce Fully Assembled Cast English Wheel 44 In. Throat MA44F-Imperial

Product Overview:

Description

The Big Daddy of English Wheels. Constructed with a massive cast iron frame and featuring an immense 44-inch throat, the 44F Imperial is the toughest English Wheel you can buy. The full set of 3-inch wide lower anvils are included plus choose from a wide selection of optional 2-inch anvil wheels to shape any contour for any job. Whether you are building full body panels for your muscle car, wheel pants for your aircraft, or flared fenders for your vintage hot rod, the Imperial 44F provides ample working room while allowing you to add the finest detail with finesse. These machines are made in the USA, meticulously hand finished, pinstriped and serial numbered to make a statement in any sheet metal fabrication shop.

  • Cast iron frame construction
  • Quick-release cam mechanism on anvil yoke
  • Includes 6 hardened anvil wheels
  • Made in the USA
  • 1 year manufacturer's warranty

Specifications

Throat Height (inches): 48
Throat Depth (inches): 44
Steel Capacity: 16 gauge (1.5mm)
Aluminum Capacity (inches): .125 (3.2mm)
Work Height (inches): 50
Upper Wheel (inches): 8 x 3
Anvil Wheels (inches): 3 x 3
Weight (pounds): 1850
Dimensions (LxWxH): 55 x 24 x 78

In the Box

Contents

  • Includes (6) 3 inch wide anvil wheels: Flat, 2.5, 3.75, 6.0, 12.0, and 24.0 inch radii made from 4140HT

Guides & Accessories

Consumables

  • 63494 - Metal Ace Upper Wheel Rubber Band MA3-Band
  • 63491 - Metal Ace Radius Check Gauge MARCG
  • 63516 - Metal Ace 1.00" Radius anvil for 22B MA2-1.00
  • 63515 - Metal Ace 1.00" Radius edging anvil for 22B MA2-1.00E
  • 63514 - Metal Ace 2.50" Radius anvil for 22B MA2-2.50
  • 63513 - Metal Ace 3.25" Radius anvil for 22B (Standard with the MA22B) MA2-3.25
  • 63512 - Metal Ace 5.00" Radius anvil for 22B MA2-5.00
  • 63511 - Metal Ace 5.00" Radius narrow anvil for 22B MA2-5.00N
  • 63510 - Metal Ace 5.00" Radius narrow offset anvil for 22B MA2-5.00NO
  • 63509 - Metal Ace 8.50" Radius anvil for 22B MA2-8.50
  • 63508 - Metal Ace Flat anvil for 22B MA2-Flat
  • 63507 - Metal Ace 2" Wide upper wheel for 22B MA2-Upper

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 11.97ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getContent, 6.69ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Glossary
Unsure of a term? Look it up on our Glossary powered by The Garage
MetalAce Fully Assembled Cast English Wheel 44 In. Throat MA44F-Imperial
$12,000.00
Out of stock
