MetalAce Ma22B With 8.50 And Flat Anvils DiscoveryKit
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Product Overview:
Description
The MetalAce 22B Discovery English Wheel Kit is a must-have for any metal shaping enthusiast or beginner. This kit will leave you fully equipped, including all the essentials to get started right.
It starts with the most popular of in-home English Wheels by MetalAce and adds a training video and hand tools to get you started tricking out your custom-built bike or completing hobby projects. This English Wheeling machine provides outstanding performance on small jobs like motorcycle tanks, tank covers, seat cowls, and aircraft fillets. The MetalAce 22B can be mounted on a workbench, clamped in a vise, or used with our optional welded stand. The anvil yoke is adjustable on both sides of the axle so the anvil can be trued with the upper wheel. This quality wheel is proudly made in the USA from heavy wall powder-coated tubing.
Specifications
Throat Height (inches): | 30 |
Throat Depth (inches): | 22 |
Steel Capacity: | 18 gauge (16 gauge with optional brace) |
Aluminum Capacity (inches): | .080 (2.0mm) |
Work Height (inches): | 16.5 from bench top, 42.75 with stand |
Upper Wheel (inches): | 8 x 2 |
Anvil Wheels (inches): | 3 x 2 |

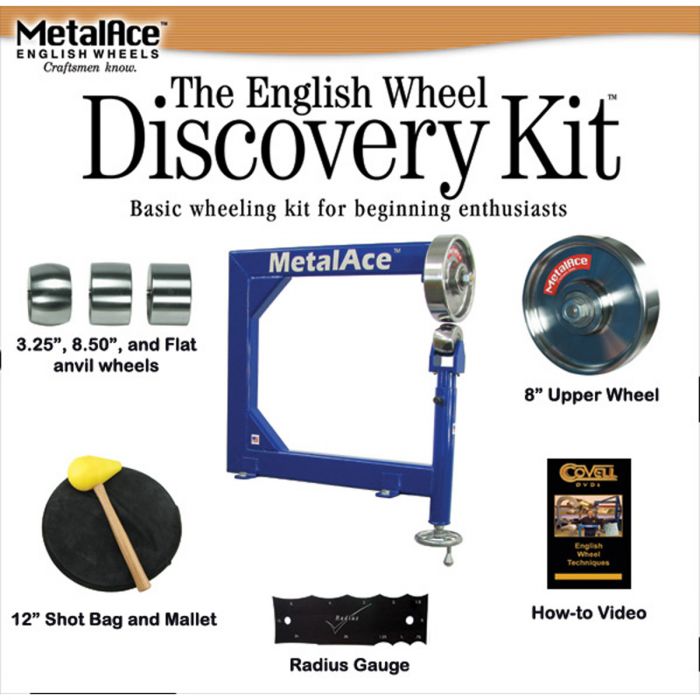

In the Box
Contents
- 22B bench-top English wheel
- (3) 2 inch wide anvil wheels: Flat, 3.25, and 8.50 radii
- 12 inch round shot bag
- Large bossing mallet
- MetalAce radius check gauge
- English wheel techniques DVD
Guides & Accessories
Instructions
Consumables
- 63494 - Metal Ace Upper Wheel Rubber Band MA3-Band
- 63498 - Metal Ace Floor stand for 22B MA22B-Stand
- 63523 - Metal Ace Assembled benchtop wheel, 22" throat (Includes 3.25" anvil) MA22B
- 63516 - Metal Ace 1.00" Radius anvil for 22B MA2-1.00
- 63515 - Metal Ace 1.00" Radius edging anvil for 22B MA2-1.00E
- 63514 - Metal Ace 2.50" Radius anvil for 22B MA2-2.50
- 63513 - Metal Ace 3.25" Radius anvil for 22B (Standard with the MA22B) MA2-3.25
- 63512 - Metal Ace 5.00" Radius anvil for 22B MA2-5.00
- 63511 - Metal Ace 5.00" Radius narrow anvil for 22B MA2-5.00N
- 63510 - Metal Ace 5.00" Radius narrow offset anvil for 22B MA2-5.00NO
- 63509 - Metal Ace 8.50" Radius anvil for 22B MA2-8.50
- 63508 - Metal Ace Flat anvil for 22B MA2-Flat
- 63507 - Metal Ace 2" Wide upper wheel for 22B MA2-Upper
