Item # 63526 BRAND: Metal Ace

MetalAce U-Weld Kit Components Only MA44F-UW

Brand: Metal Ace
In stock
SKU
63526
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 24.07ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$1,929.00
Loading...
Loading...
Save for Later
44F U-Weld English Wheel Kit
  • Manufacturer Warranty Included
  • 90 Day Returns + 100% Satisfaction Guarantee
  • FREE Lifetime Tech Support

QUESTIONS? Talk to an Expert:
Phone Icon  800-343-9353   |     Chat   |     Email Us

QUESTIONS? Talk to an Expert:  Phone Icon  800-343-9353   |     Chat   |     Email Us

Description

The MetalAce 44F U-weld English Wheel kit provides all the components necessary to build the popular 44F, a go-anywhere wheeling machine for crafting metal. Use the supplied blueprints to build a replica of our frame, or add your own creativity and customize your frame and use our high quality wheels and components.

The included screw lift assembly has a quick-release cam mechanism that lowers the anvil yoke with a 90 degree rotation of the handle. This makes it easy to get the material out and return back to the original pressure setting, plus the anvils can be changed quickly in this fashion. The anvil yoke has precision adjustments on both sides of the axle support to true the anvil with the top wheel. (Material for the frame not included)

  • U-weld kit
  • Includes 6 hardened anvil wheels
  • Includes jack, yoke, and all hardware plus blueprints
  • 16 gauge mild steel capacity
  • 1 year manufacturer's warranty

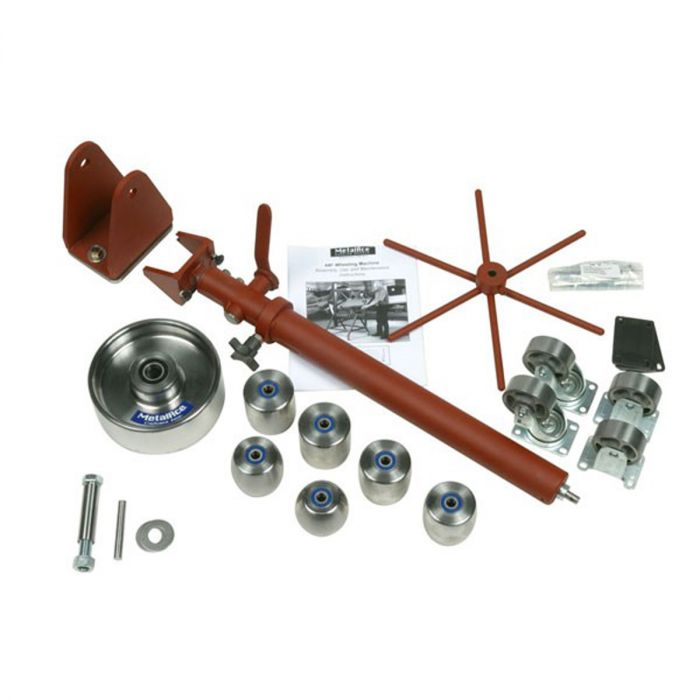

What's Included
  • (6) 3 inch wide hardened anvil wheels: Flat, 2.5, 3.75, 6.0, 12.0, and 24.0 inch radii
  • 8 x 3 inch upper wheel
  • Jack, kick wheel, yoke, and hardware
  • Floor casters
  • Bill of materials and blueprints
specifications_ax
Throat Height (inches): 30
Throat Depth (inches): 44
Steel Capacity: 16 gauge (1.5mm)
Aluminum Capacity (inches): .125 (3.2mm)
Work Height (inches): 48
Upper Wheel (inches): 8 x 3
Anvil Wheels (inches): 3 x 3
Weight (pounds): 96
*Note: Specifications are approximate and subject to change.
Consumables_ax
  • 63496 - Metal Ace Optional 2" Anvil Yoke for fabricated floor models, blue powder coat MA2-Yoke
  • 63491 - Metal Ace Radius Check Gauge MARCG
  • 63494 - Metal Ace Upper Wheel Rubber Band MA3-Band
  • 63516 - Metal Ace 1.00" Radius anvil for 22B MA2-1.00
  • 63515 - Metal Ace 1.00" Radius edging anvil for 22B MA2-1.00E
  • 63514 - Metal Ace 2.50" Radius anvil for 22B MA2-2.50
  • 63513 - Metal Ace 3.25" Radius anvil for 22B (Standard with the MA22B) MA2-3.25
  • 63512 - Metal Ace 5.00" Radius anvil for 22B MA2-5.00
  • 63511 - Metal Ace 5.00" Radius narrow anvil for 22B MA2-5.00N
  • 63510 - Metal Ace 5.00" Radius narrow offset anvil for 22B MA2-5.00NO
  • 63509 - Metal Ace 8.50" Radius anvil for 22B MA2-8.50
  • 63508 - Metal Ace Flat anvil for 22B MA2-Flat
  • 63507 - Metal Ace 2" Wide upper wheel for 22B MA2-Upper
