Item # 13661 BRAND: Eastwood

No Weld Hole Repair Kit

Easily Fix Up To a 2" Hole + No Welder Needed!
Easily Fix Up To a 2" Hole + No Welder Needed!
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 52.65ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$22.99
Loading...
Save for Later
Easily Fix Up To a 2" Hole + No Welder Needed!

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
No Weld Hole Repair Kit

Product Overview:

Description

Weld-Free Body Panel Hole Repair Kit

The Eastwood No-Weld Hole Repair Kit provides a quick, weld-free solution to plugging 2-inch diameter or smaller holes in body panels. Use this urethane body filler kit on steel, aluminum, fiberglass and plastic panels while minimizing sanding damage and surface preparation. It’s an affordable way to plug rust holes in metal or fix fiberglass panels that have been pierced by rocks and debris.

Everything is included in this metal hole repair kit to restore your car’s body and get it ready for repainting. Watch our rust hole repair video for step-by-step instructions on how to use this kit for professional results. If you have further questions, call the Eastwood tech team seven days a week so we can help you Do the Job Right.

Weld-Free Hold Repair Kit Features:

  • Plugs holes 2” or less in diameter with no welding
  • Can be used on steel, aluminum, plastic and fiberglass
  • Uses durable urethane body filler
  • Minimal surface preparation

Warranty

Assembled in the USA of domestic and imported parts.

In the Box

Contents

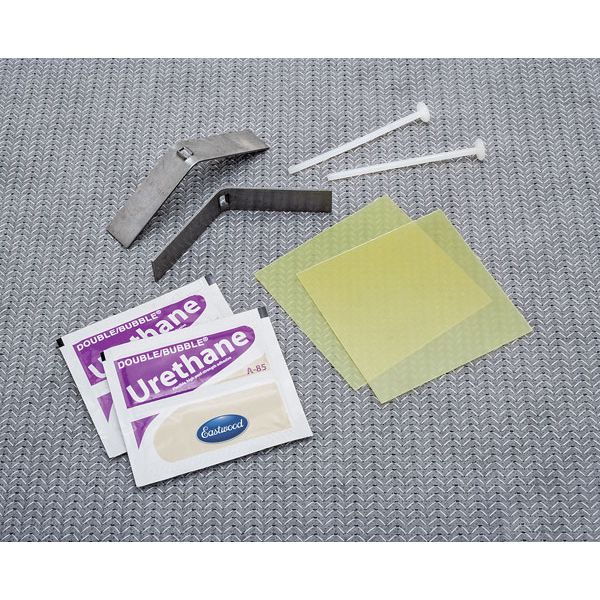

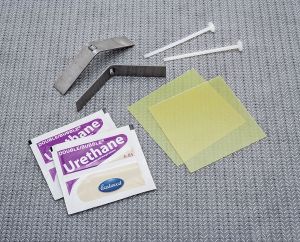

(2) 3in x 3in x 0.02in Flexible G10 fiberglass composite backer sheets, (2)3in long x 1/8in dia. Nylon retainer pins, (2) 3in x 5/8in Steel Retaining Clips, (2) Packets of Urethane Adhesive/filler

Guides & Accessories

Instructions

Click here for product instructions

Safety Information

Wear protective gloves when cutting out damaged areas. Sharp edges can cause cuts. Wear protective gloves when trimming flexible fiberglass backing panels.Exposed glass fibers can cause cuts. Follow package directions carefully and wear disposable gloves when handling backer adhesive and use in a well ventilated area. The use of a NIOSH approved mask for respiratory protection is recommended. for use with exterior body panels only. Not intended for use in floor panels or structural areas.

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 3.47ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

How well will this work filling the small holes where the chrome was attached to the sides of the bed and can of a 67 C10?

Asked by: Charlie 47
This product will work for filling small holes in your truck, as long as they are no larger than 2 inches in diameter.
Answered by: Bob G
Date published: 2019-09-07

If I use these in the door jambs to fix pdr drill holes on the doors and jambs how well will that hold up with the opening and closing of the doors?  I’m worried about the bondo cracking with repeated opening and shutting.

Asked by: Chris
The longevity of this product comes down to the prep. With proper prep the two part catalyzed urethane will be extremely durable.
Answered by: Scott C
Date published: 2021-11-08

Can this be used to fill holes in a truck bed that are up to 1-1/2".  Will the patch push through if pressure is put directly on it?

Asked by: Dave
This kit will repair holes up to 2 inches. Once the patch is cured you will simply apply body filler to smooth the surface.
Answered by: Scott C
Date published: 2021-01-08

Im filling 2 antenns holes in the roof, What body filler would you recommend?

Asked by: RSB1
Our Contour Premium Body filler would be perfect. https://www.eastwood.com/eastwood-contour-premium-body-filler.html
Answered by: Scott C
Date published: 2021-01-08

will this product fix a hole in a gas tank

Asked by: robert
Unfortunately the adhesive and backer are not designed to be in constant contact with fuel. We would not recommend this kit for fixing a fuel tank.
Answered by: Scott C
Date published: 2020-01-06

Can it be used to patch a small hole in a cars oil pan

Asked by: Jonj
We have never tested this product to be submerged in oil. We would not be able to comment on durability if exposed to oil constantly.
Answered by: Scott C
Date published: 2018-07-29

I need to patch a small hole on my aluminum boat, about 1/4" diam. Is this waterproof and can be used on a boat?

Asked by: neeko
While this kit will certainly fill up to a 2 inch diameter hole we have not tested for the ability to withstand any pressure from water. The design of this product is to simply create a strong backer for body filler on a vehicle panel.
Answered by: Scott C
Date published: 2018-07-29

Hi, The front of my 82 mini is like swiss cheese. Will I able to fill the current holes and then redrill into the to attach the grill 3/16 using self tapping screws?

Asked by: mini01
These are designed to make backers for body filler and not for screws to be attached to. Your best bet would be to section in a new piece of metal with our No Weld panel replacement kit.
Answered by: S Church
Date published: 2019-07-14

Will this work over your rust inhibitor paint or POR-15. Have two holes on the floor of a 70 Cougar. Want to remove, treat and prevent rust then patch holes from both sides of the floor. Then cover the floor with dynomat to keep things quiet.

Asked by: Mcougar
This product could certainly be used in conjunction with our Rust Encapsulator.
Answered by: S Church
Date published: 2018-07-29

Can the backing sheets be shaped by bending, so that a non-flat panel could be patched? Can you cup or curl the material?

Asked by: hominid
These patch panels are not designed to be curled or cupped much. They have some flexibility to conform to the back of a panel.
Answered by: S Church
Date published: 2017-07-24

if i get the no weld kit to seal up a few rust holes how long do i have before i have to put body filler and primer over it ?

Asked by: Josch004
You will need to let the adhesive cure for 30 minutes before you cut the tab and start your body work.
Answered by: S Church
Date published: 2019-06-05

Can I use this to repair a hole in a gas tank?

Asked by: JPWII
We do not recommend using this with fuel.
Answered by: SWhitehurst
Date published: 2020-01-06

How do you deal with a rocker panel with an undercoating on the back side.

Asked by: Rickj
Undercoating on the back side would have to be removed around the repair.
Answered by: S Church
Date published: 2017-08-27

will this work to repair holes for ham radio antenna mounts that I have on my truck roof I want to close them because i'm giving up ham radio and want to perminately close them there not big holes 1/2 holes

Asked by: besomeone
Yes, it will work well for that size hole.
Answered by: MikeL
Date published: 2017-05-14

MY DRIVER SIDE DOOR WAS SHOT WIT AN AK47, WILL THIS WORK ON THAT SIZE HOLE.

Asked by: CASSY
a 7.62mm projectile fired from a commonly available AK variant will produce a hole that is slightly larger than the bullet itself due to its high velocity. Even accounting for a generous expansion, the hole will still only be approximately 5/16", which is well within the 3" x 3" patch included in the kit. Another consideration will be the deformation caused by the high velocity impact. I'd suggest taking a look at our Fairmount hammers and dollies which will help you to reform the metal before using the kit.
Answered by: MikeL
Date published: 2020-01-06

I have (6) small (3/16" dia.) holes that I would like to fill/repair. I have access to the back of the holes, would I need to use the nylon pins or can I just place the backer sheets on the back of the holes?

Asked by: 65olds442
If you have access to the back of the holes and can apply even pressure to the backer sheet as the adhesive cures, you would not need to use the pins.
Answered by: NickC
Date published: 2018-05-02

How many packages do you get ?? Patching over 30 various size holes in my firewall ..

Asked by: bka5
Here is a list of the contents of the kit. (2) 3in x 3in x 0.02in Flexible G10 fiberglass composite backer sheets, (2) 3in long x 1/8in dia. Nylon retainer pins, (2) 3in x 5/8in Steel Retaining Clips, (2) Packets of Urethane Adhesive/filler.
Answered by: NickC
Date published: 2020-01-06
